Philips 190B8CS/00 - Page 42

42
HUDSON 8

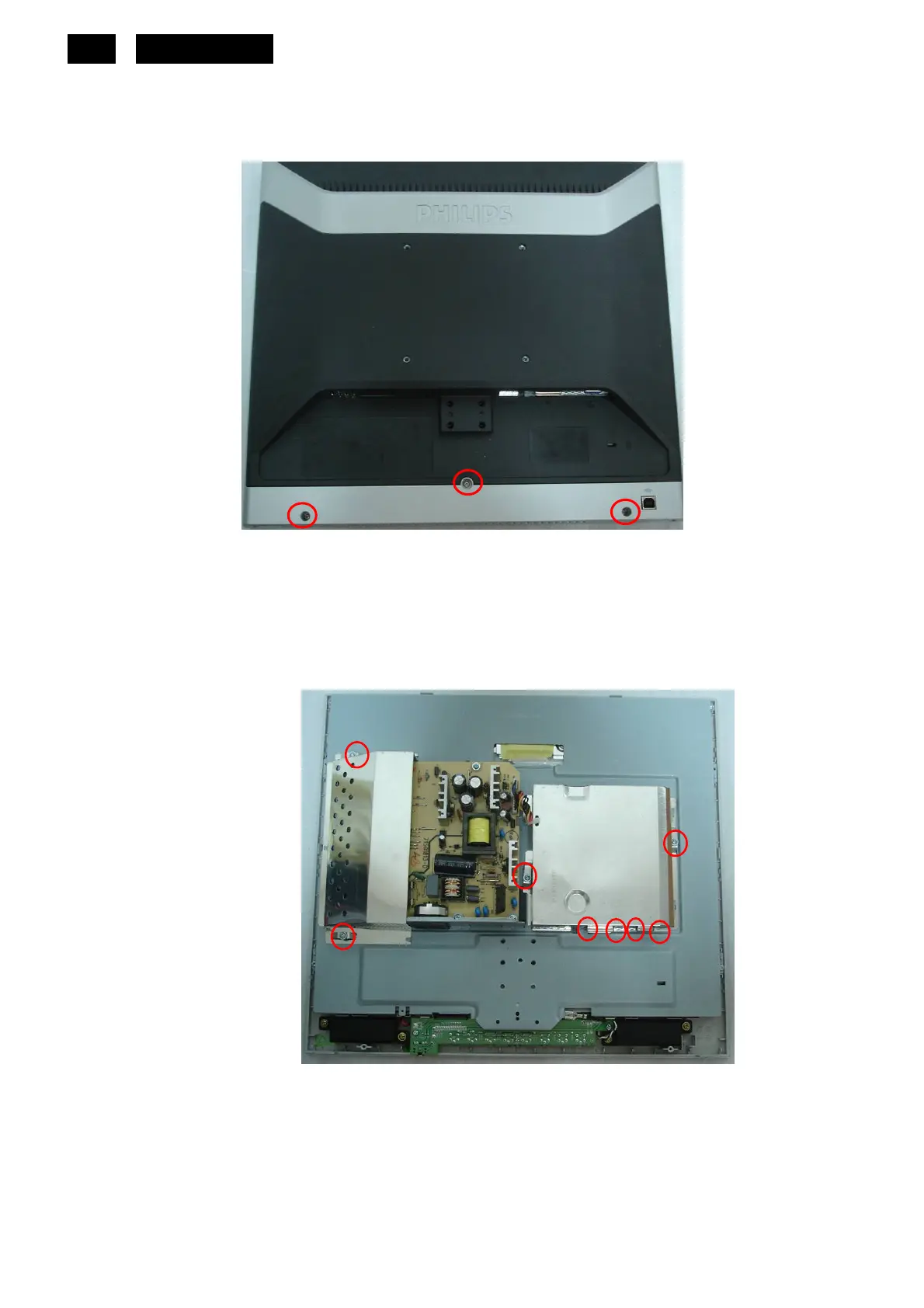

5. Remove back cover as Fig.5
Remove the three screws to remove the back cover as Fig.5.
Fig.5
6. Remove the shields of the main board and power board as Fig.6.
Remove the 8 screws as Fig.6 to remove the shields.
Fig.6
