Philips 190B8CS/00 - Page 43

43
43
HUDSON 8

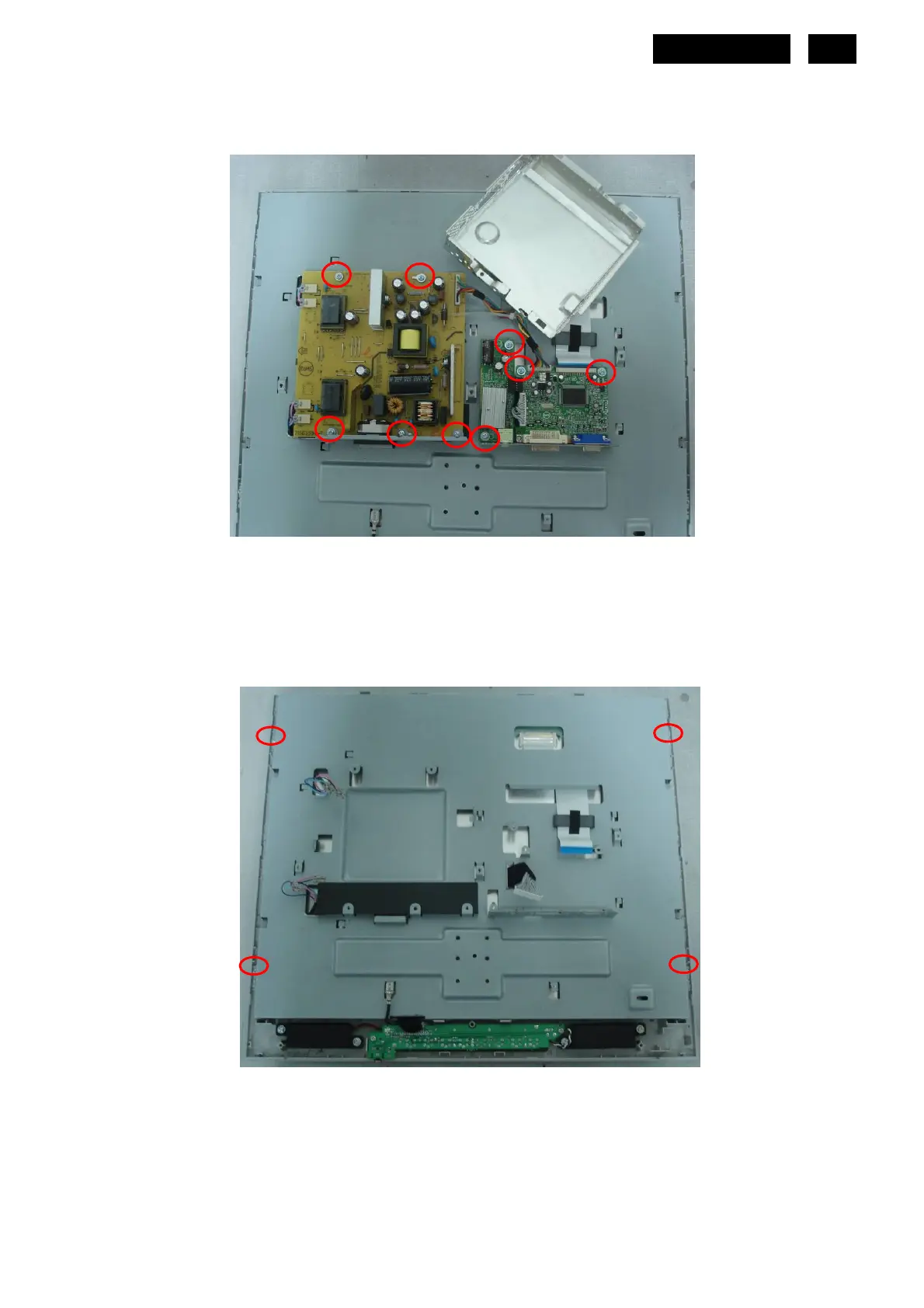

7. Remove the main board，audio board and the power board. as Fig.7
Remove the 9 screws as Fig.7 to remove the main board、 audio board and the power board.
Fig.7
8. Remove the bezel as Fig.8.
Remove the 4 screws as Fig.8 to remove the bezel.
Fig.8
