3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at the front of the
panel of the monitor.
By changing these settings, the picture can be adjusted to your personal preferences.
-
The power cord should be connected.
-
Connect the video cable from the monitor to the video card.
-
Press the power button to turn on the monitor, the power indicator will light up.

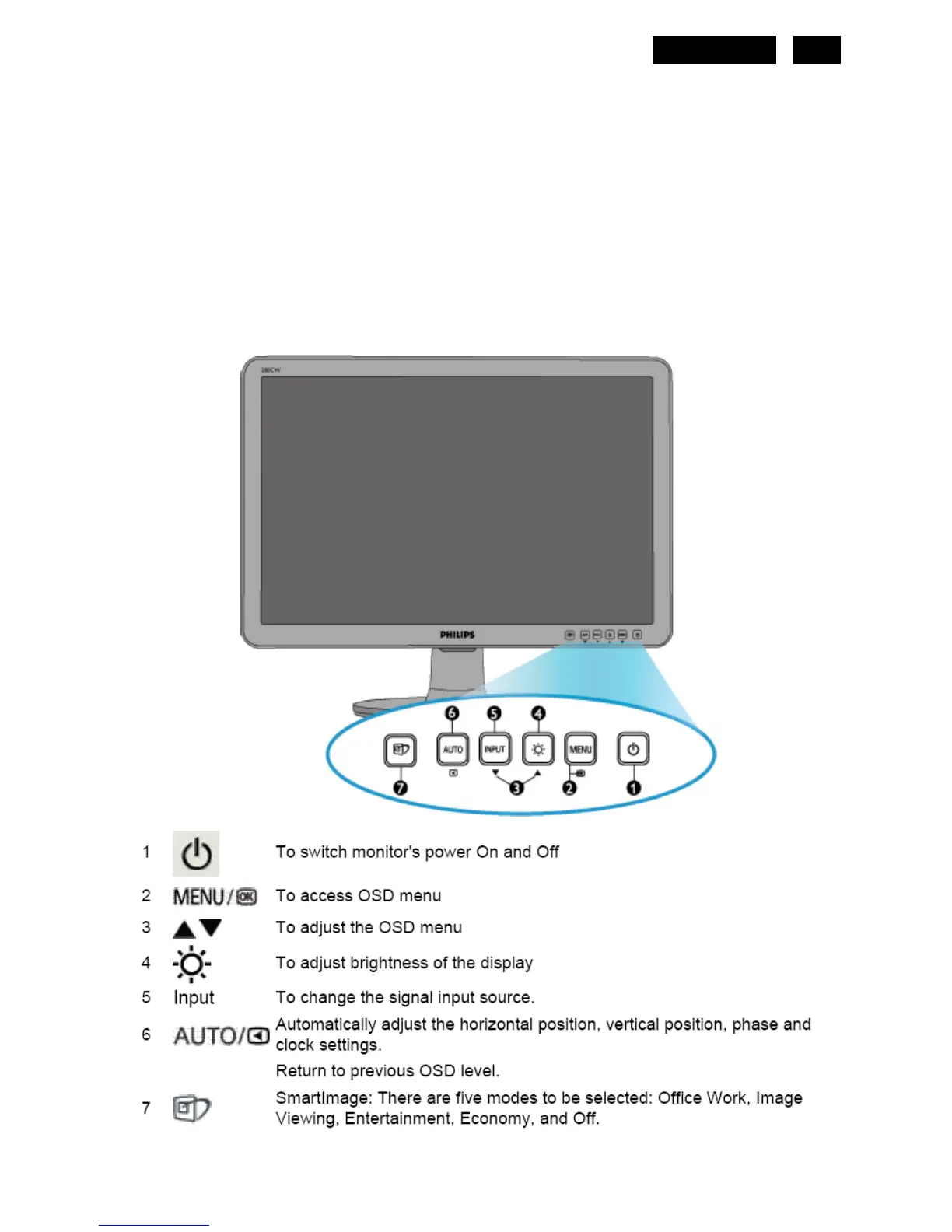

3.2 Control Buttons
Front View

Philips 200CW8FB/00 Specifications

Picture/Display

panel size	20.1"/ 51 cm
effective viewing area	433.4 x 270.9 mm
pixel pitch	0.258 x 0.258 mm
brightness	300 cd/m²
contrast ratio (typical)	1000:1
smartcontrast ratio (dynamic)	3200:1
viewing angle	160º (H) / 160º (V)
response time (typical)	5 ms
smartresponse	2 ms (Gray to Gray)
maximum resolution	1680 x 1050 @ 75Hz
optimum resolution	1680 x 1050 @ 60Hz
video dot rate	205 MHz
horizontal scanning frequency	30 - 83 Hz
vertical scanning frequency	56 - 76 Hz

Power

consumption (on mode)	< 45 W (Typical)
consumption (economy mode)	31 W
consumption (off mode)	< 1 W
power supply	Built-in, 100-240VAC, 50/60Hz

Operating Environment

relative humidity	20% - 80%
temperature range (operation)	0°C to 40°C
temperature range (storage)	-20°C to 60°C

Connectivity

signal input	VGA (Analog), DVI-D
USB	USB 2.0 x 1
sync input	Composite Sync, Separate Sync, Sync on Green

Weight and Dimensions

box dimensions	535 x 451 x 159 mm
set dimensions	480 x 321 x 65 mm
set dimensions with stand	480 x 393 x 193 mm
product weight (+stand)	4.87 kg
weight incl. packaging	6.76 kg
