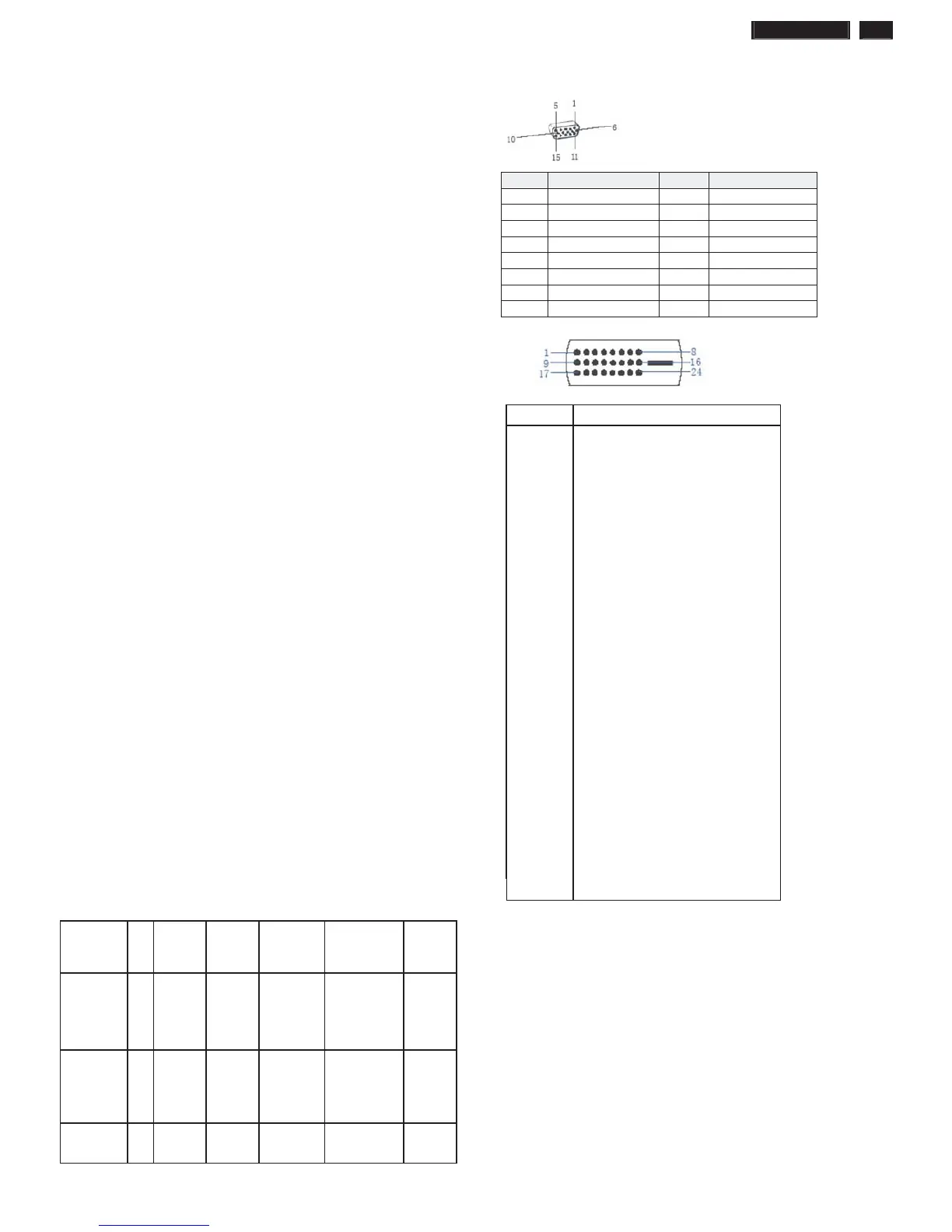

241P3 LCD 3
Technical Data
AUO
Type NR.
: AUO M240HW01 V2
Resolution
: 1920 x 1080 (FHD)
Outside dimensions
: 556.0(H) x 323.2(V) x 16.35(D)
mm
Pitch (mm) : 0.276mm x 0.276mm
Color pixel
arrangement
: 1920 horiz. by 1080 vert. Pixels.
RGB stripe arrangement
Display surface
: Hard coating (3H), Anti-glare
treatment
Color depth : 16.7 M colors 8-bit with A-FRC
Backlight : CCFL
Active area (W x H)
: 531.36mm (H) ×298.89mm (V)
mm
View angle (CR=10) : >=170 for Right/Left (Typ)
: >=160 for Up/Down (Typ)
Contrast ratio : >=1000:1 (Typ)
White luminance : 300 (center,Typ)
Color gamut : 70%
Gate IC :
Source IC :
Response time : 5 ms (Typ)
Vertical frequency
range
: 47~75 H z
Scanning frequencies
Hor.: 30 – 83 K Hz
Ver.: 56 - 76 Hz
Video dot rate: < 205 MHz for VGA and < 165 MHz for DVI
Power input: 90-264 V AC, 50/60 r 2 Hz
Power consumption: Normal on: < 52 W (max)
Functions:
(1) D-SUB analog R/G/B separate inputs, H/V sync
separated, Composite (H+V) TTL level, SOG sync.
(2) DVI digital Panel Link TMDS inputs, HDCP supported.
Ambient temperature: 0
C
Power input connection
Power cord length : 1.8 M
Power cord type : 3 leads power cord with protective earth plug.
Power management
Mode HS
YN
C
VSYN
C
Video Pwr-con
s.
Indicatio
n
Rec.
time
Power-On On On Active
<42W
(typ.)
<
52W(max.
)
White LED
--
Standby Off Off Blanked < 0.2W
Blinking
white LED
3 sec on
3sec off
<3s
DC Power
Off
ʳʳ N/A < 0.2 W LED Off ʳ
PIN No. SIGNAL PIN No. SIGNAL
1 Red 9 DDC +3.3V or +5V
2 Green/ SOG 10 Logic GND
3 Blue 11 Sense (GND)
4 Sense (GND) 12 Bi-directional data
5 Cable Detect (GND) 13 H/H+V sync
6 Red GND 14 V-sync
7 Green GND 15 Data clock
8 Blue GND
ʳʳ
Susceptibility of display to external environment
Operating
- Temperature : 0 to 40 degree C
- Humidity :80% max
- Altitude : 0-3658m
- Air pressure : 600-1100 mBAR
Storage
- Temperature : -20 to 60 degree C
- Humidity : 95% max
- Altitude : 0-12192m
- Air pressure : 300-1100 mBAR
Note: recommend at 5 to 35qC, Humidity less than 60 %
Pin No. Description
1 T.M.D.S. data2-
2 T.M.D.S. data2+
3 T.M.D.S. data2 shield
4 No Connect
5 No Connect
6 DDC clock
7 DDC data
8 No Connect
9 T.M.D.S. data1-
10 T.M.D.S. data1+
11 T.M.D.S. data1 shield
12 No Connect
13 No Connect
14 +5V Power
15 Ground (for +5V)
16 Hot plug detect
17 T.M.D.S. data0-
18 T.M.D.S. data0+
19 T.M.D.S. data0 shield
20 No Connect
21 No Connect
22 T.M.D.S clock shield
23 T.M.D.S. clock+
24 T.M.D.S. clock-
