IC Data Sheets
EN 25TCM3.1A LA 8.
2010-Jun-25
8. IC Data Sheets
Index of this chapter:
8.1 Diagram B01, LD1117 (IC U4)
8.2 Diagram B01, RT8110 (IC U13)
8.3 Diagram B01, MP1593 (IC U14)
8.4 Diagram B01, PQ1CX41 (IC U20)
8.5 Diagram B02, MX25L3205 (IC U10)
8.6 Diagram B02, MT8221 (IC U11)
8.7 Diagram B03, RT9199 (IC U1)
8.8 Diagram B04, TDA9885 (IC U2)
8.9 Diagram B07, WM8501 (IC U9)
8.10 Diagram B09, RC4558 (IC U26/U37)
8.11 Diagram B09, LM833D (IC U27)
8.12 Diagram B10, STA333BW (IC U17)
This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

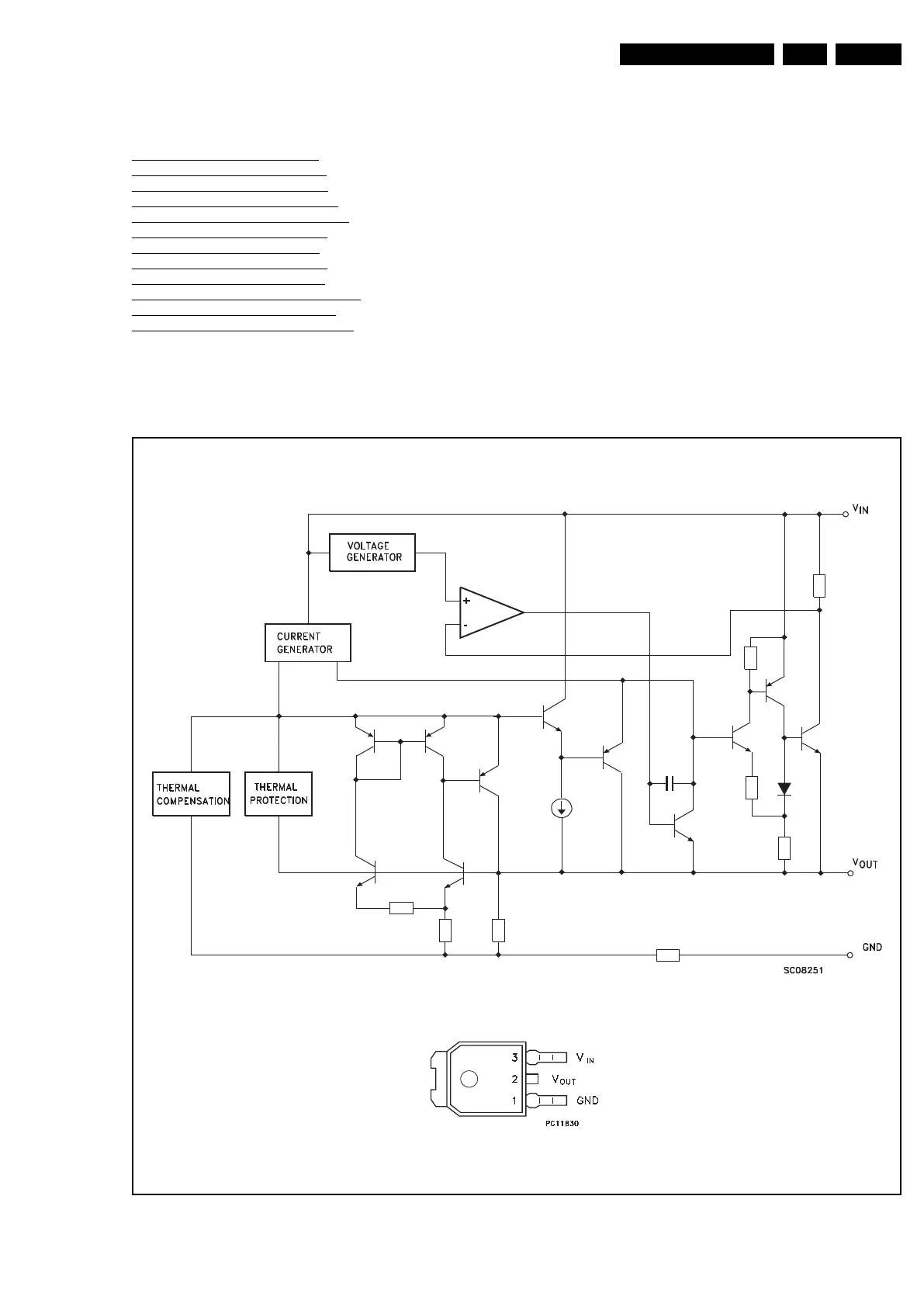

8.1 Diagram B01, LD1117 (IC U4)
Figure 8-1 Internal block diagram and pin configuration
F_15710_166.eps
100402
Block diagram
Pinning information
DPAK
LD1117DT
