Philips 32PFL4606H/60 - Circuit Descriptions

Circuit Descriptions
EN 27TPM7.1E LA 7.
2011-Aug-19
7. Circuit Descriptions
Index of this chapter:
7.1 Introduction
7.2 Power Supply
7.3 Power Management
7.4 Circuit Description
Notes:
•Only new circuits (circuits that are not published recently)
are described.
• Figures can deviate slightly from the actual situation, due
to different set executions.
• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter
9. Block Diagrams
) and circuit diagrams (see chapter
10. Circuit Diagrams and PWB Layouts
). Where
necessary, a separate drawing for clarification is given.
7.1 Introduction
The TPM7.1E LA platform uses MT5395/MT5135. It supports
decoder and a TV controller offers high integration for
advanced applications. It combines a transport de-multiplexer,
a high definition video decode, an AC3 decode, a four-link
LVDS transmitter, a mini-LVDS transmitter, a V-by -One
transmitter, and an NTSC/PAL/SECAM TV decoder with a 3D
comb filter (NTSC/PAL).
7.1.1 Implementation
Key components of this chassis are:
• MT5395LUGJ System-On-Chip (SOC) TV Processor
• ENV57U09D5F Tuner (DVB T/C, analogue)
• MT5135AE DVB T/C demodulator
• TMDS351PAG HDMI Switch
• TPA6132A2RTER Earphone R/L output
• STA339BWTR Audio amplifier
• MAX17113ET Multi DC/DC
• MAX9668ETP GAMMA
• TPS65192RHDR Level shifter
7.1.2 TPM7.1E Architecture Overview
An overview of the TPM7.1E architecture can be found in
Figure 7-1
.

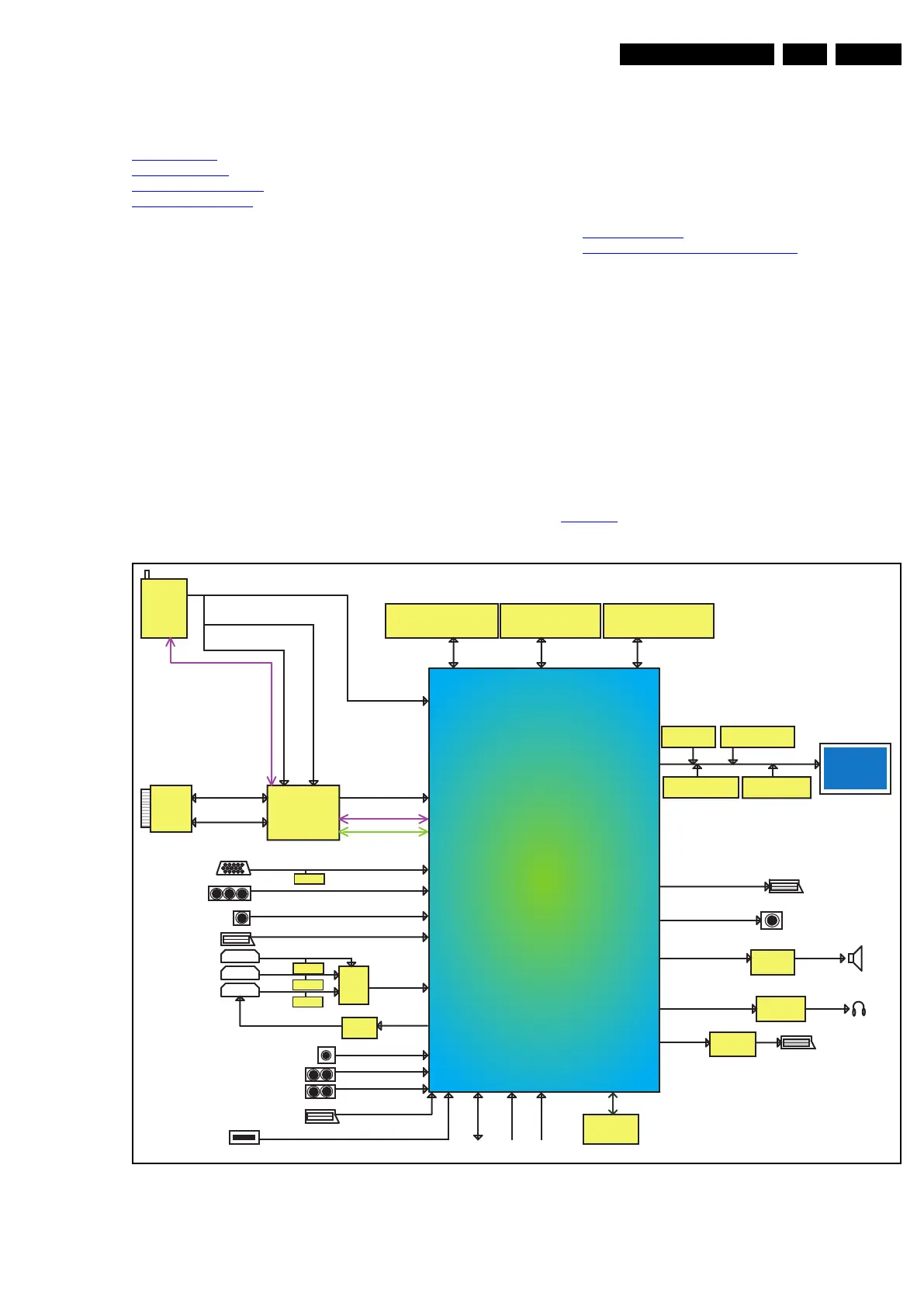

Figure 7-1 Architecture of TPM7.1E LA
19090_205_110421.eps
110509
TMDS
HDMI switch
I2C
SPI
SPI
DDRIII/1 Gbyte/1333 MHz
I2C
NOR FLASH 512Kbyte
NVM
24C128
ENV57U09
D5F
/TDTK-
G731
RCKEY
USB 2.0
UART
MT5395LHGJ
STA339
BWTR
SPK × 2
Digital Audio Output(COIXIAL)
D-SUB(PC IN)
DDC
RCA(YPBPR)
CVBS
YPbPr
VGA
HDMI2
PHONE JACK(PC R/L)
RCA(YPBPR R/L)
SCART(AUDIO R/L)
HDMI1
TMD
S351
SPDIF
R/L I2S
100Hz Mini LVDS
[RX0 : RX3]
RGB/CVBS
SCART
MT5135
DVB-C/T
DEMOD
CI/CI+
CONTROLLER
PCMCIA
CI CARD
IF(+/-) for DVB C/T
TS DATA
OUT(SERIAL)
LCD PANEL
without T-CON
PCMCIA
INTERFACE
TS DATA
IN/OUT
(PARALLEL)
IF(+/-) for DVB C/T
IF(+/-) for PAL/SECAM
MX25L4005AMI-12G
74LVC
1G125
Switch
SPDIFSPDIF
ARC(Audio Return Channel)
for HDMI
HY27UF082G2B-TPCB
SCART1 CVBS output
NT5CB64M16AP-CF
CVBS
TV output
NJM4580
M-TE1
LINE OUT AMP
R/L PWM
SCART1 audio output
NAND FLASH 2Gbyte
USB(Multimedia)
Multimedia & debug, sw code download
X3
HP R/L
HEADPHONE
R/L PWM
SPK R/L
RCA(AV)
HDMI3
RCA( AV R/L)
Only Reversed
TPA6132A
2RTER
G5795F11U
TPS65192RHDR
MAX17113ETM+
24C02
DDC
24C02
DDC
24C02
DDC
MAX9668ETP+
24C02
