Philips 32PFL4606H/60 - Rear Connections; HDMI (Type A) Connector; SCART Connector; VGA Connector

Technical Specs, Diversity, and Connections
EN 4 TPM7.1E LA2.
2011-Aug-19
5 - HDMI: Digital Video, Digital Audio - In

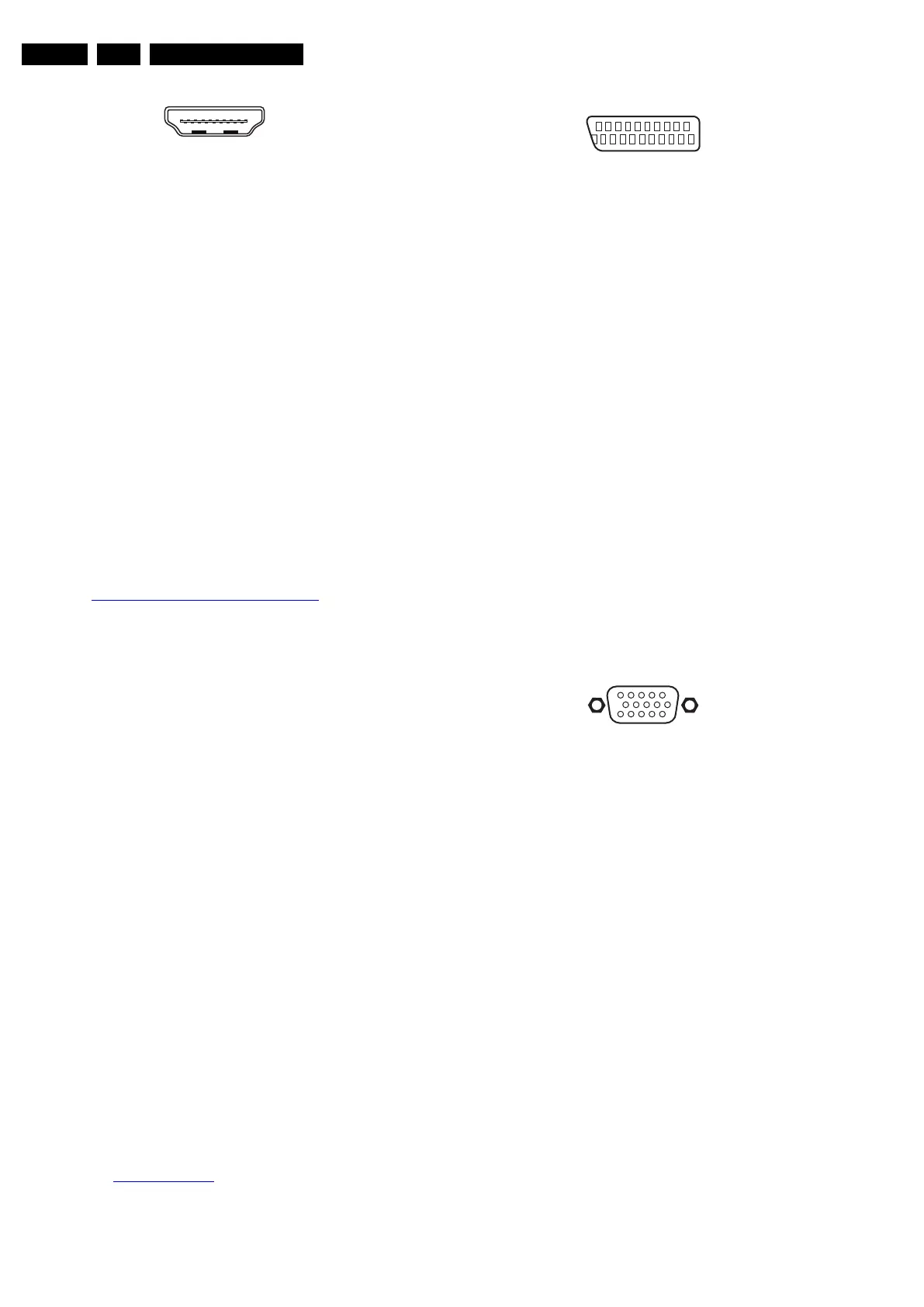

Figure 2-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 -Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 -n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 -+5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
2.3.2 Rear Connections
6 - HDMI1: Digital Video, Digital Audio - In
See 5 - HDMI: Digital Video, Digital Audio - In
7 - Audio - In: Left / Right, VGA
Gn - Audio L/R in 0.5 V
RMS
/ 10 kΩ jq
8 - EXT2: Video YPbPr - In, Audio - In
Gn - Video - Y 1 V
PP
/ 75 Ω jq
Bu - Video - Pb 0.7 V
PP
/ 75 Ω jq
Rd - Video - Pr 0.7 V
PP
/ 75 Ω jq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ jq
Rd -Audio - R 0.5 V
RMS
/ 10 kΩ jq
9 - Cinch: Audio - Out
Rd -Audio R 0.5 V
RMS
/ 10 kΩ kq
Wh - Audio L 0.5 V
RMS
/ 10 kΩ kq
10 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out
Figure 2-4 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kΩ k
2 - Audio R 0.5 V
RMS
/ 10 kΩ j
3 - Audio L 0.5 V
RMS
/ 1 kΩ k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kΩ j
7 - Video Blue/C-out 0.7 V
PP
/ 75 Ω jk
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V
PP
/ 75 Ω j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red/C 0.7 V
PP
/ 75 Ω j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 Ω j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
PP
/ 75 Ω k
20 - Video CVBS/Y 1 V
PP
/ 75 Ω j
21 - Shield Gnd H
11 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
12 - PC IN:VGA
Figure 2-5 VGA connector
1 - Video Red 0.7 V
PP
/ 75 Ω j
2 - Video Green 0.7 V
PP
/ 75 Ω j
3 - Video Blue 0.7 V
PP
/ 75 Ω j
4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
13 - Service / UART
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
2.4 Chassis Overview
Refer to 9. Block Diagrams for PWB/CBA locations.
