Philips 32PFL4606H/60 - Mechanical Instructions

Mechanical Instructions
EN 9TPM7.1E LA 4.
2011-Aug-19
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal
4.4 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

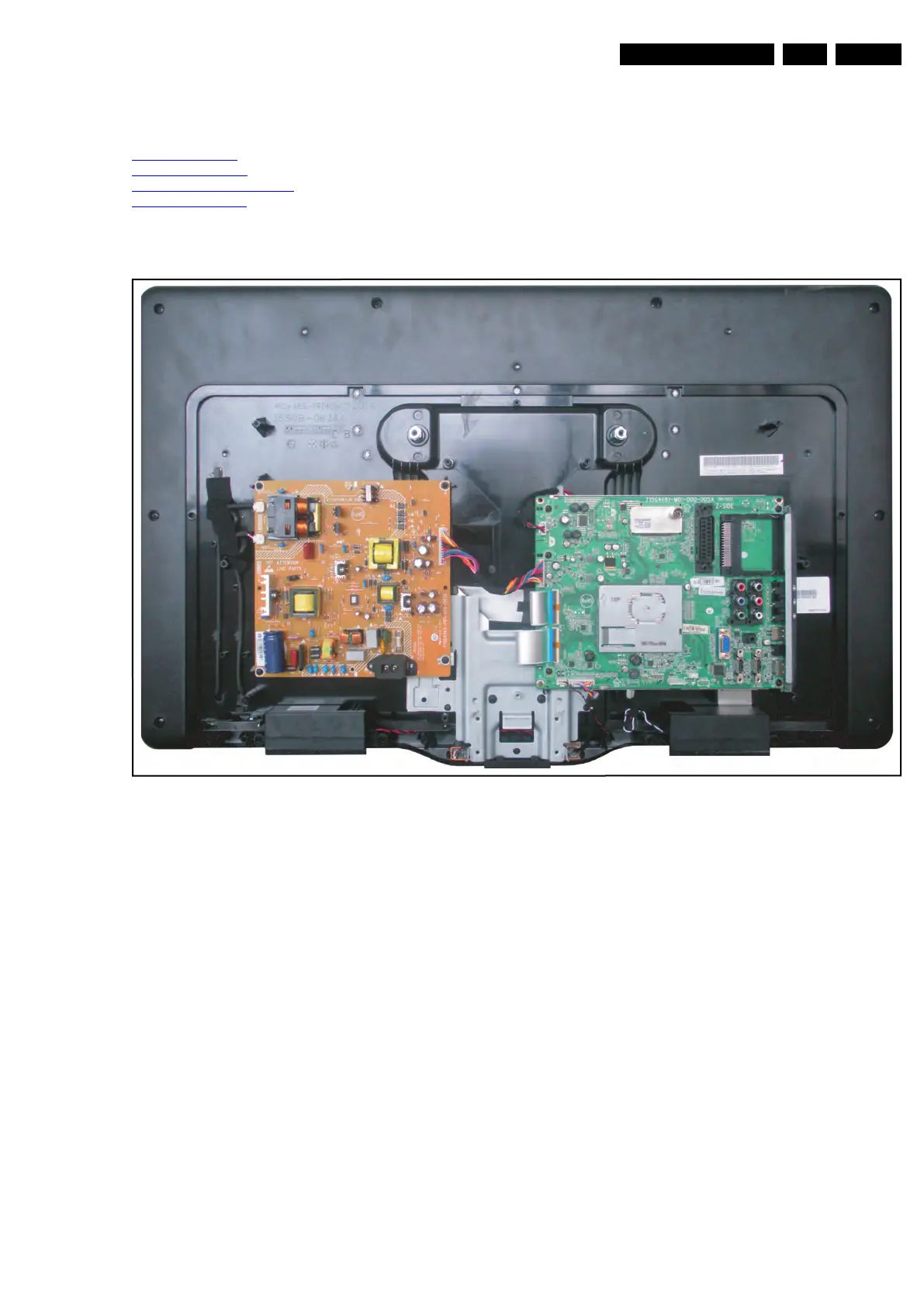

Figure 4-1 Cable dressing 32"
19090_100_110413.eps
110505
