7.4.11 Demodulator
The MT5135AE provides a high performance DVB-T and
DVB-C demodulation function, the integrated CI+ controller
and interface also reduce the complexity of TS routing.
Overall Features:
• Integrated DVB-T and DVB-C demodulators.
• Integrated CI/CI+ controller and interface.
• On-chip integrated SAW filter function.
• 10-Bit ADC accepting IF or low-IF inputs.
• RSSI measurement.
• Independent RF and IF AGC controls.
• One parallel or serial TS interface accepting output.

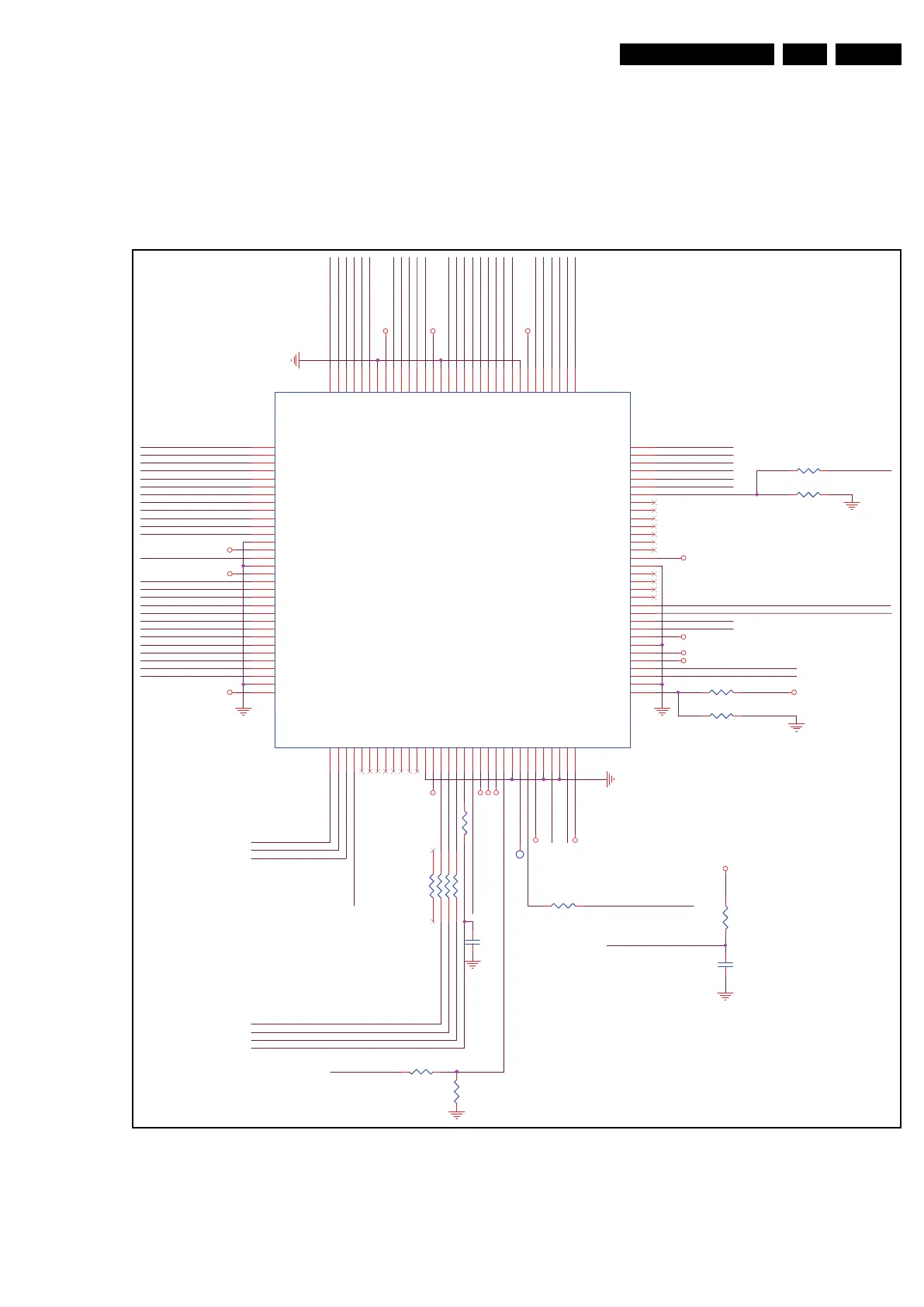

Figure 7-14 Demodulator
7.4.12 Tuner
The tuner covers all bands in VHF and UHF, it includes digital
terrestrial (DVB-C, DVB-C), analogue (PAL, Secam), I
2
C bus
control of tuner, address selection, broadcasting system
selection.
