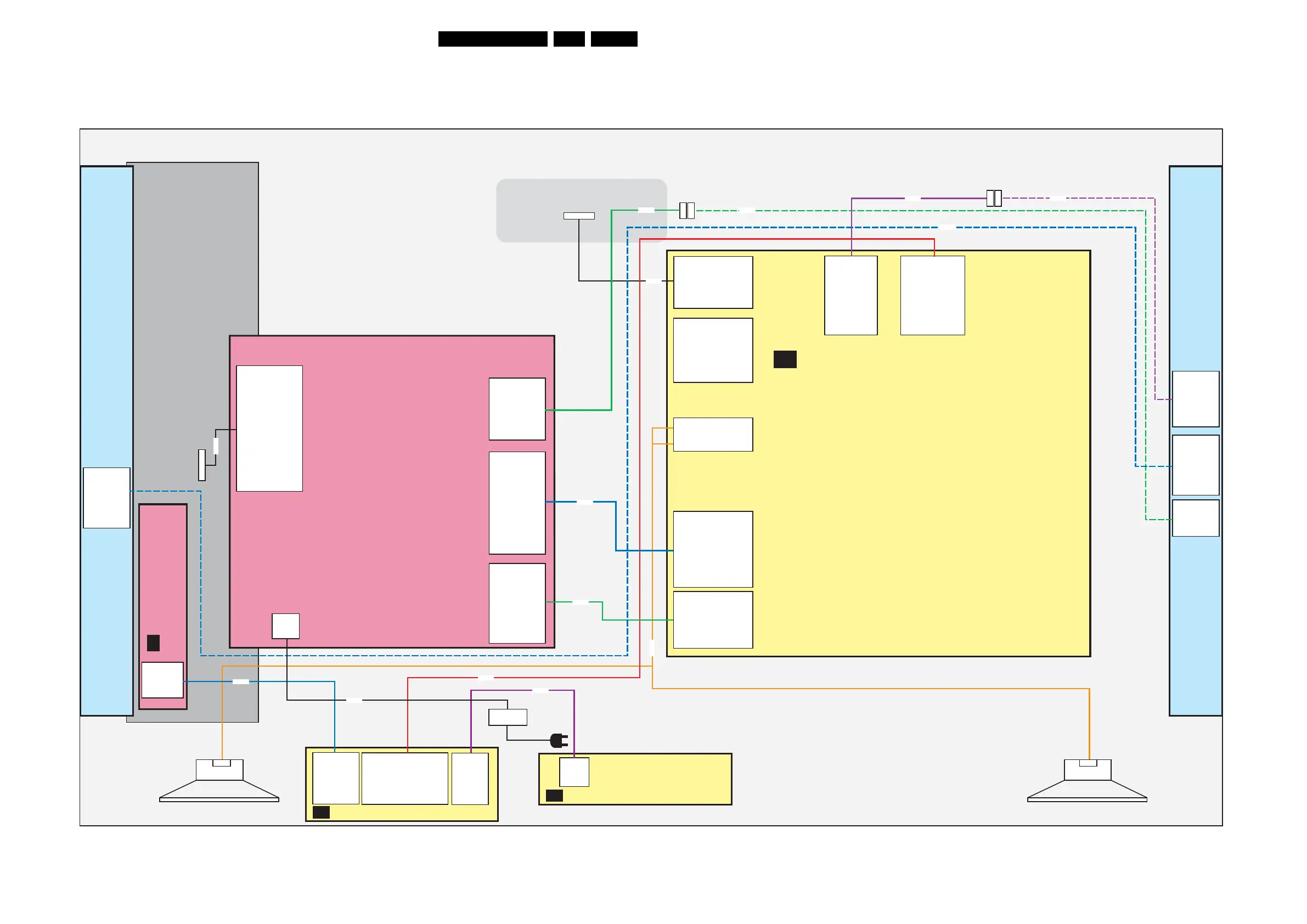

Wiring Diagram 32” (ME8)
LCD DISPLAY (1004)
1M01
3P
I_17661_018.eps
170408
J1
1. GND
2. KEYBOARD
3. +3V3STBY
4. INTERRUPT
WIRING DIAGRAM 32” (STYLING ME8)
J
CONTROL BOARD TACT SW
(1010)
E
1004
(AL2)
1. +24V
2. GND
3. TEMP
4. PWM2_R
5. PWM2_G
6. PWM2_B
7. ENABLE
8. +3V3
AMBI-LIGHT UNIT (IN BACK COVER)
(1170)
1005
(AL3)
1. SCL1
2. GND
3. SDA1
4. CONTROL1
5. CONTROL2
6. +3V3
7. GND
1004
(AL3)
1. +24V
2. GND
3. TEMP
4. PWM2_R
5. PWM2_G
6. PWM2_B
7. ENABLE
8. +3V3
1003
(AL3)
1. +24V
2. GND
3. +24V
4. GND
AMBI-LIGHT UNIT (IN BACK COVER)
(1172)
INVERTER
MAIN POWER SUPPLY
(1050)
CN7
1. 12VSSB
2. 12VSSB
3. SGND
4. SGND
5. BL_ON
6. BL_ADJUST
7. BOOST
8. ANA/PWM
CN4
1. 24VA
2. SGND1
3. 24VA
4. SGND1
5. 24VA
6. SGND1
CN1
2. L
1. N
CN6
1. 3V3STBY
2. STAND BY
3. SGND
4. SGND
5. SGND
6. 12VSSB
7. 12VSSB
8. 12VSSB
9. +12VA
10. SGND2
11. -12VA
1M20
(B06B)
1. LIGHT_SENSOR
2. GND
3. RC
4. LED2
5. +3V3STBY
6. LED1
7. KEYBOARD
8. +5V
9. N.C.
1M59
(B06A)
1. SCL-AMBI-3V3
2. GND
3. SDA-AMBI-3V3
4. GND
5. GND
6. +3V3
7. GND
SSB
(1111)
B
1M20
9. TACTSWITCH
8. +5V2
7. KEYBOARD
6. LED1
5. +3V3-STBY
4. LED2
3. RC
2. GND
1. LIGHT-SENSOR
1M01
4. ACT_SWITCH
3. GND
2. KEYBOARD
1. GND
IR LED PANEL
(1112)
J
1P09
1. LED1
2. +5V2
3. GND
LIGHT GUIDE PANEL
(1119)
LIGHT SPILL
L
1P09
3. GND
2. +5V2
1. LED1
8101
8735
8120
8395
8399
8109
8150
1M99
(B01B)
8. BACKLIGHT-PWM-ANA-DISP
7. BACKLIGHT_BOOST
6. BACKLIGHT-OUT
5. LAMP-ONOFF
4. GND
3. GND
2. +12VD
1. +12VD
1M95
(B01B)
11. -AUDIO-POWER
10. GND
9. +AUDIO-POWER
8. +12V
7. +12V
6. +12V
5. GND
4. GND
3. GND
2. STANDBY
1. +3V3-STBY
1735
(B10A)
4. RIGHT-SPEAKER
3. -SPEAKER-POWER
2. -SPEAKER-POWER
1. LEFT-SPEAKER
1G51
(B05E)
1. +VDISP1
2. +VDISP1
4. +VDISP1
47. BACKLIGHT-OUT
48. LAMP-ON-OUT
49. SCL-DISP
50. SDA_DISP
51. GND
1G50
(B05E)
1. SCL-DISP
2 SDA-DISP
38. +VDISP2
39. +VDISP2
40. +VDISP2
41. +VDISP2
12P
8684
8559
4P
4P
4P
4P
8159
8690 85908690
30P
8419
RIGHT SPEAKER
(5212) IN BACK COVER
+ -
LEFT SPEAKER
(5211) IN BACK COVER
+ -
CN2
14. ANALOG_PWM
13. DIM
12. BL_ON_OFF
11. BOOSTI
10. SGND3
9. SGND3
8. SGND3
7. SGND3
6. SGND3
5. 24VI
4. 24VI
3. 24VI
2. 24VI
1. 24VI
8308
INLET
