Philips 43PUT6801 - Page 141

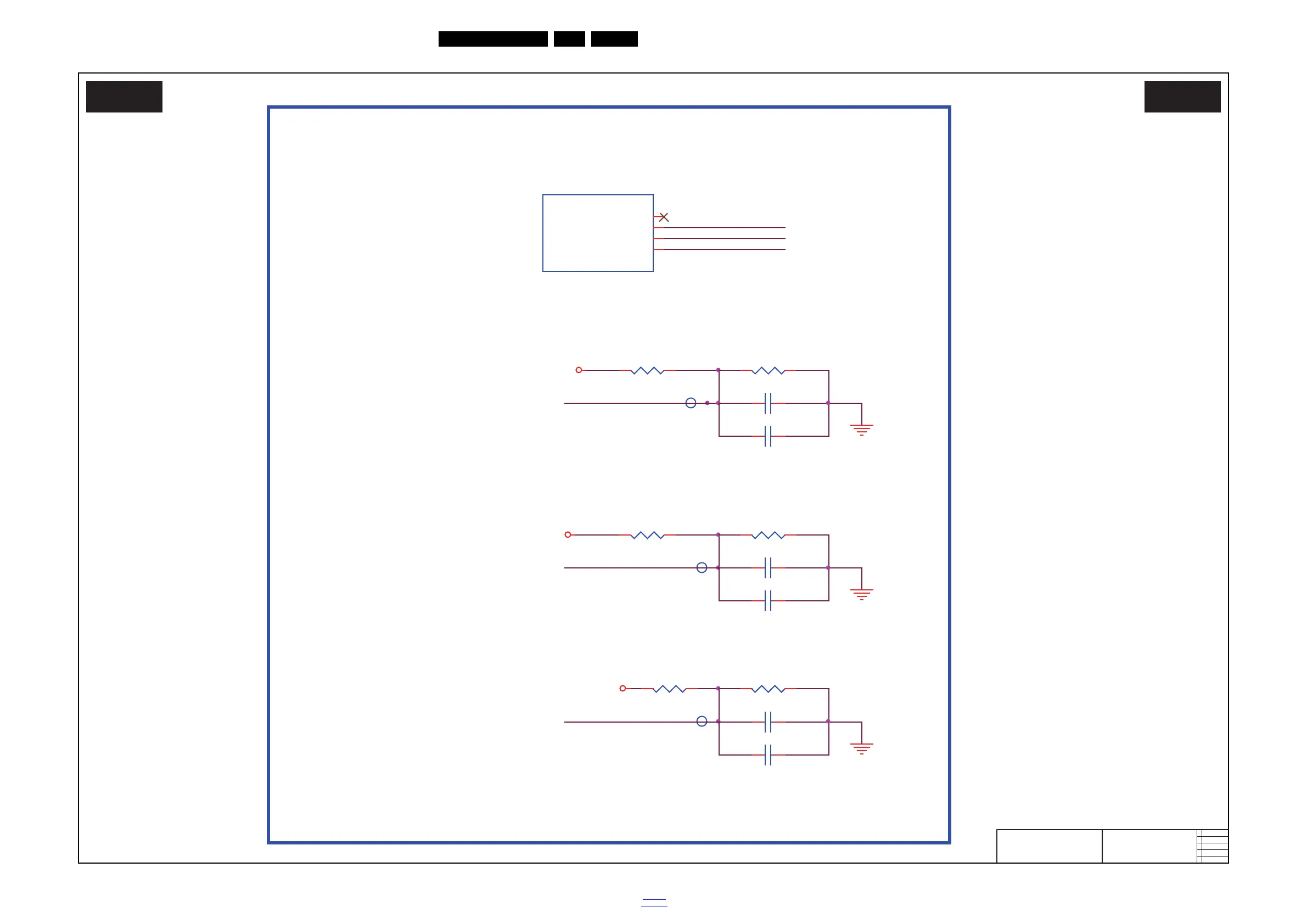

Circuit Diagrams and PWB Layouts
EN 141QM16.3A LA 10.
2016-Jun-08
back to
div.table
10-10-10 BE-NT72333e-DDR
20040_513.eps
BE-NT72333e-DDR
B10 B10
2015-11-25
C
715G7776
BE-NT72333e-DDR
TP3660
TP3661
+1V8-NT
C3517
100NF 16V
R3512
1KOHM +-1% 1/16W
FRC_DDRA_VREF
C3518
100NF 16V
R3511
1KOHM +-1% 1/16W
TP3662
R3514
1KOHM +-1% 1/16W
C3533
100NF 16V
R3513
1KOHM +-1% 1/16W
C3534
100NF 16V
+1V8-NT
FRC_MMU_VREF
VREF volta ge divider
C3500
100NF 16V
R3507
1KOHM +-1% 1/16W
C3516
100NF 16V
R3506
1KOHM +-1% 1/16W
FRC_DDRB_VREF
+1V8-NT
NT72333 DDR
U3100A
NT72333
DDR_VREF
U22
NC
T14
MCM_B_VREF
AF25
MCM_A_VREF
U26
FRC_MMU_VREF
FRC_DDRB_VREF
FRC_DDRA_VREF
