Mechanical Instructions
EN 10 QM16.3A LA4.
2016-Jun-08
Table 2-1
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assembly/Panel Removal (for 7101 series)
4.4 Assembly/Panel Removal (for 6801 series)
4.6 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

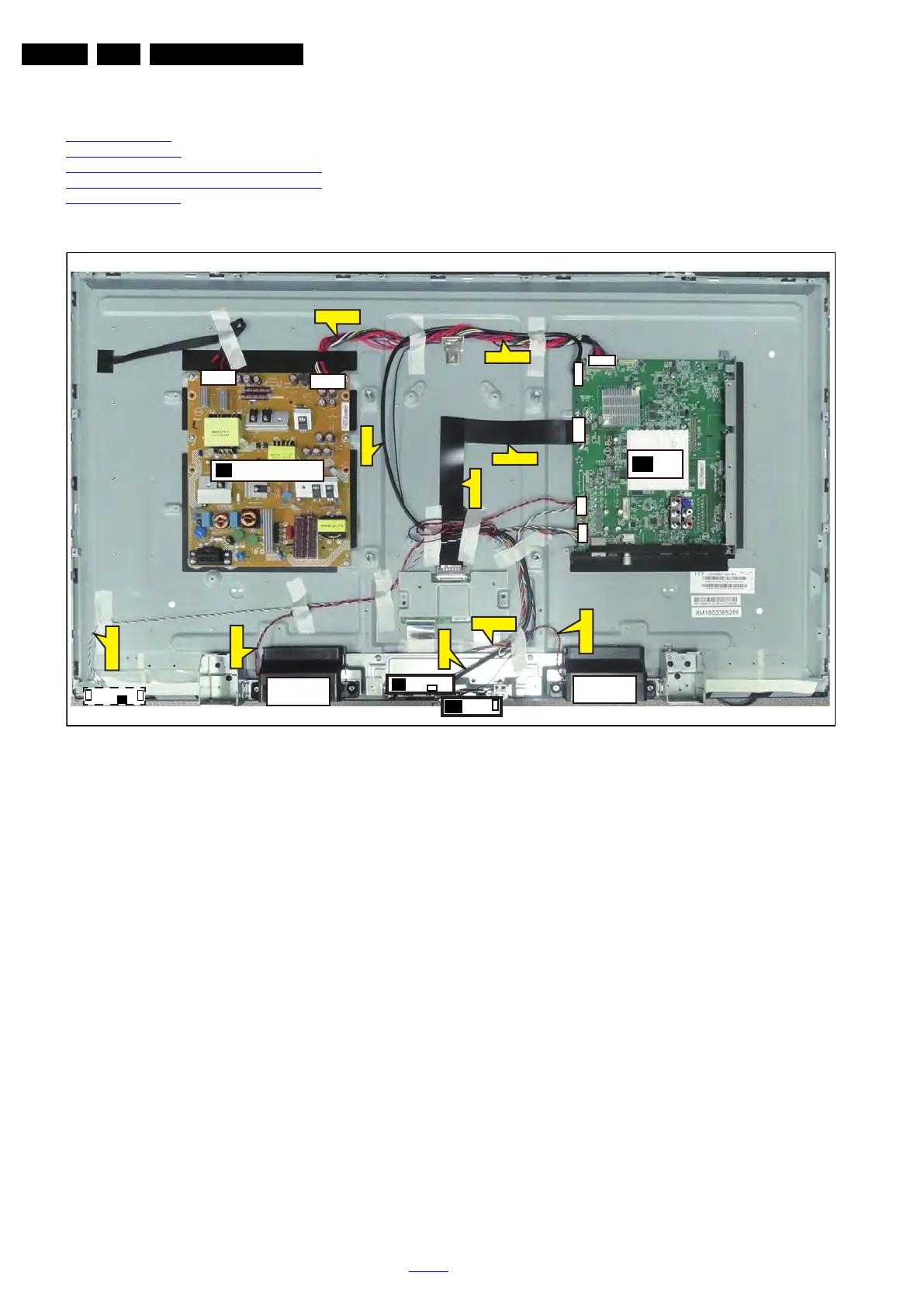

Figure 4-1 Cable dressing (43" 6801 series)
20151_100.eps
CN8601
CN9101
CN1190
CN1100
CN1108
CN1161
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN1161
ECN1190
ECN1100
ECN1110
ECN1110
ECN1161
ECN1190
ECN1108
KEYBOARD CONTROL
(1057)
E
CN01
CN02
IR/LED BOARD
(1056)
J
CN1110
ECN1100
CN201
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
WIFI MODULE
W
WiFi01
ECN1108
