Mechanical Instructions
EN 14 QM16.3A LA4.
2016-Jun-08
Table 2-1
4.2 Service Positions
For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.
4.3 Assembly/Panel Removal (for 7101 series)
Instructions below apply to the 65PUT7101/98, but will be
similar for other 55"65"/75"PUx7101 series models.
4.3.1 Stand
Refer to Figure 4-8
for details.
1. Remove the fixation screws [1] that secure the stand
bracket. Refer to Figure 4-8
for details.
2. Take the stand bracket out from the set.

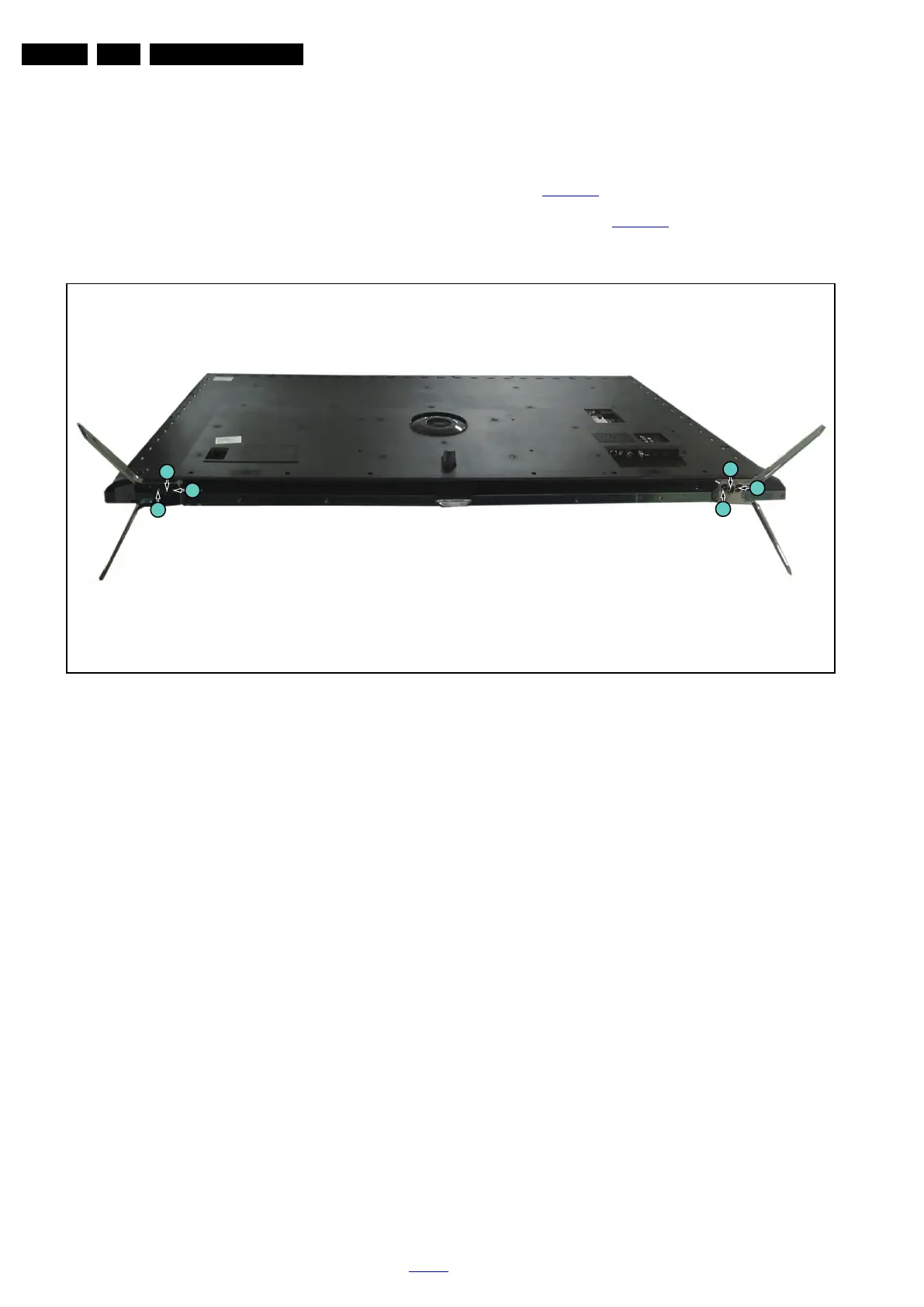

Figure 4-8 Stand removal
20150_102.eps
1
1
1
1
1
1
