Table 2-1
4.3.2 Rear Cover
Refer to Figure 4-9
& Figure 4-10 for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove the fixation screws [1] and [2] that secure the rear
cover. Refer to Figure 4-9
for details.
2. Unplug the connector [3] from SSB. Refer to Figure 4-10
for details.
3. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

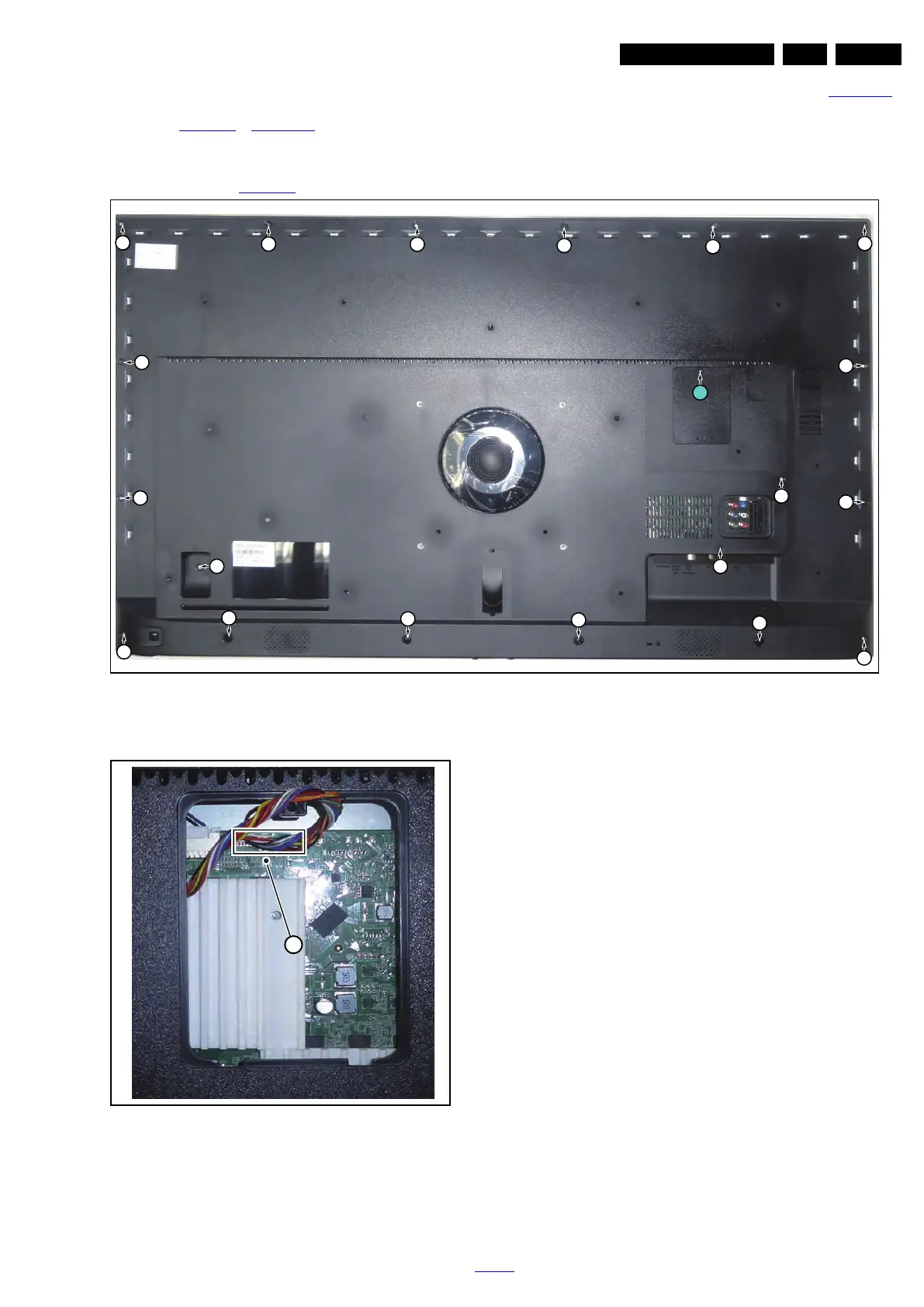

Figure 4-9 Rear cover removal[1]
Figure 4-10 Rear cover removal[2]
20030_112.eps
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
2
2
20150_103.eps
3
