Philips 43PUT6801 - Cable Dressing (65 7601 Series); Cable Dressing (75 7101 Series)

Mechanical Instructions
EN 13QM16.3A LA 4.
2016-Jun-08
Table 2-1

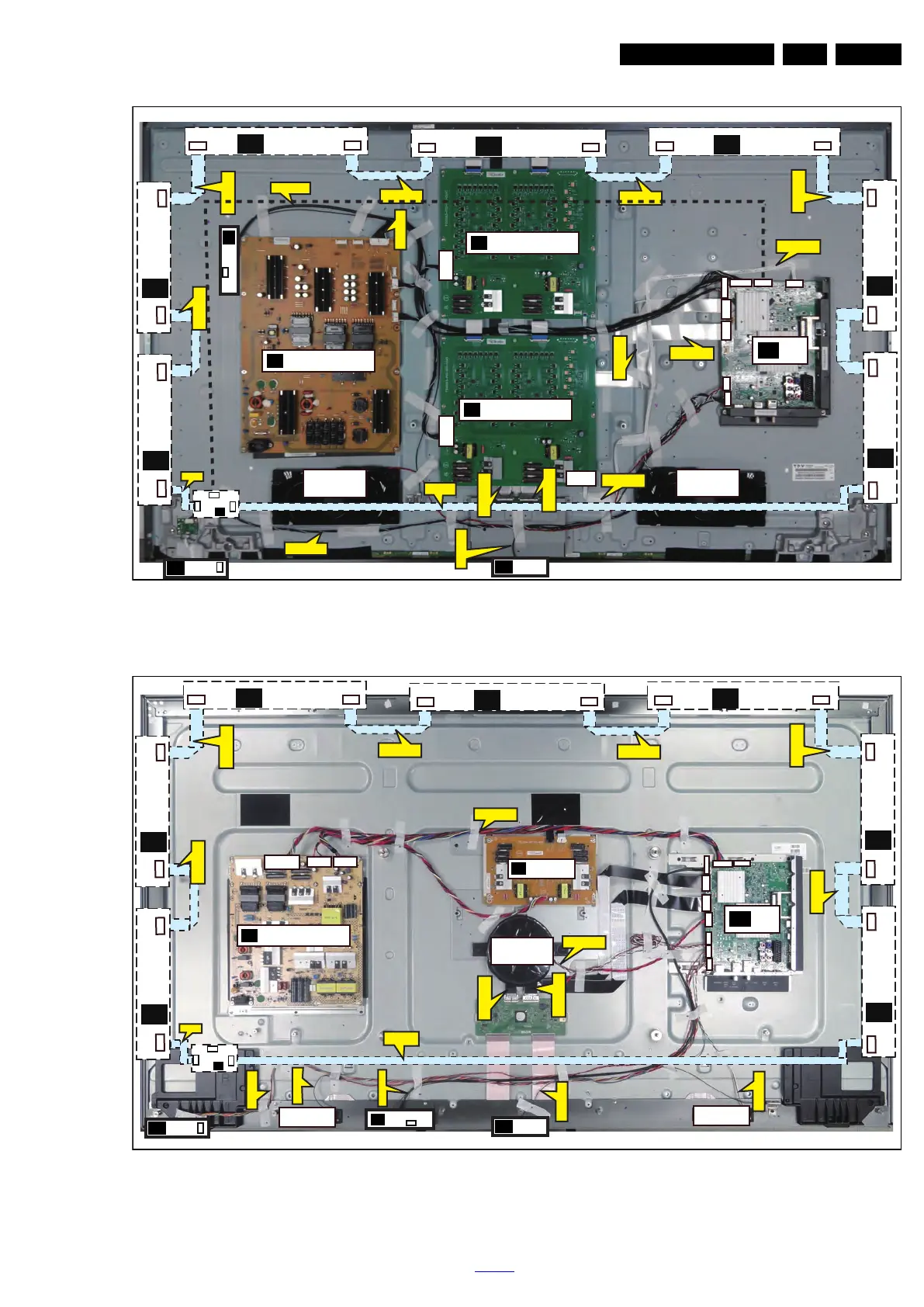

Figure 4-6 Cable dressing (65" 7601 series)
Figure 4-7 Cable dressing (75" 7101 series)
20152_101.eps
KEYBOARD
CONTROL
(1057)
E
CN03
CN02
CN01
EXA04
CN806
CN806
CN804
CN1190
CN1106
CN1156
CN1100
CN1108
CN1160
CN1161
MAIN POWER SUPPLY
(1054)
A
MAIN POWER SUPPLY
(1054)
A
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN1190
ECN1110
ECN1108
ECN1160
ECN1160
ECN1160
ECN1161
ECN1156
ECN1156
IR/LED BOARD
(1056)
J
CN1110
ECN1108
AMBI-LIGHT BOARD
(1068)
ALC
CN201
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
WIFI MODULE
W
WiFi01
AmbiLight
AL
(1062)
AmbiLight
AL
(1061)
AmbiLight
AL
(1063)
AmbiLight
AL
(1062)
AmbiLight
AL
(1063)
AmbiLight
AL
(1062)
AmbiLight
AL
(1061)
EXA02
EXA04
EXA04
EXA02
ECN03
ECN02
20150_101.eps
KEYBOARD
CONTROL
(1057)
E
CN03
CN02
CN01
EXA04
CN9205 CN9201
CN9101
CN1190
CN1106
CN1100
CN1101
CN1108
CN1160
CN1161
CN1162
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN1110
ECN1101
ECN1108
ECN1160
ECN1161
IR/LED BOARD
(1056)
J
CN1110
ECN1108
ECN1101
ECN1190
ECN1100
AMBI-LIGHT BOARD
(1068)
ALC
CN201
LOUDSPEAKER
(1185)
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
WIFI MODULE
W
WiFi01
AmbiLight
AL
(1061)
AmbiLight
AL
(1062)
AmbiLight
AL
(1063)
AmbiLight
AL
(1062)
AmbiLight
AL
(1063)
AmbiLight
AL
(1061)
AmbiLight
AL
(1062)
EXA02
EXA04
EXA04
ECN03
EXA04
EXA02
LED DRIVER
(1055)
AD
ECN02
