11. Styling Sheets
11.1 6801 series 43"

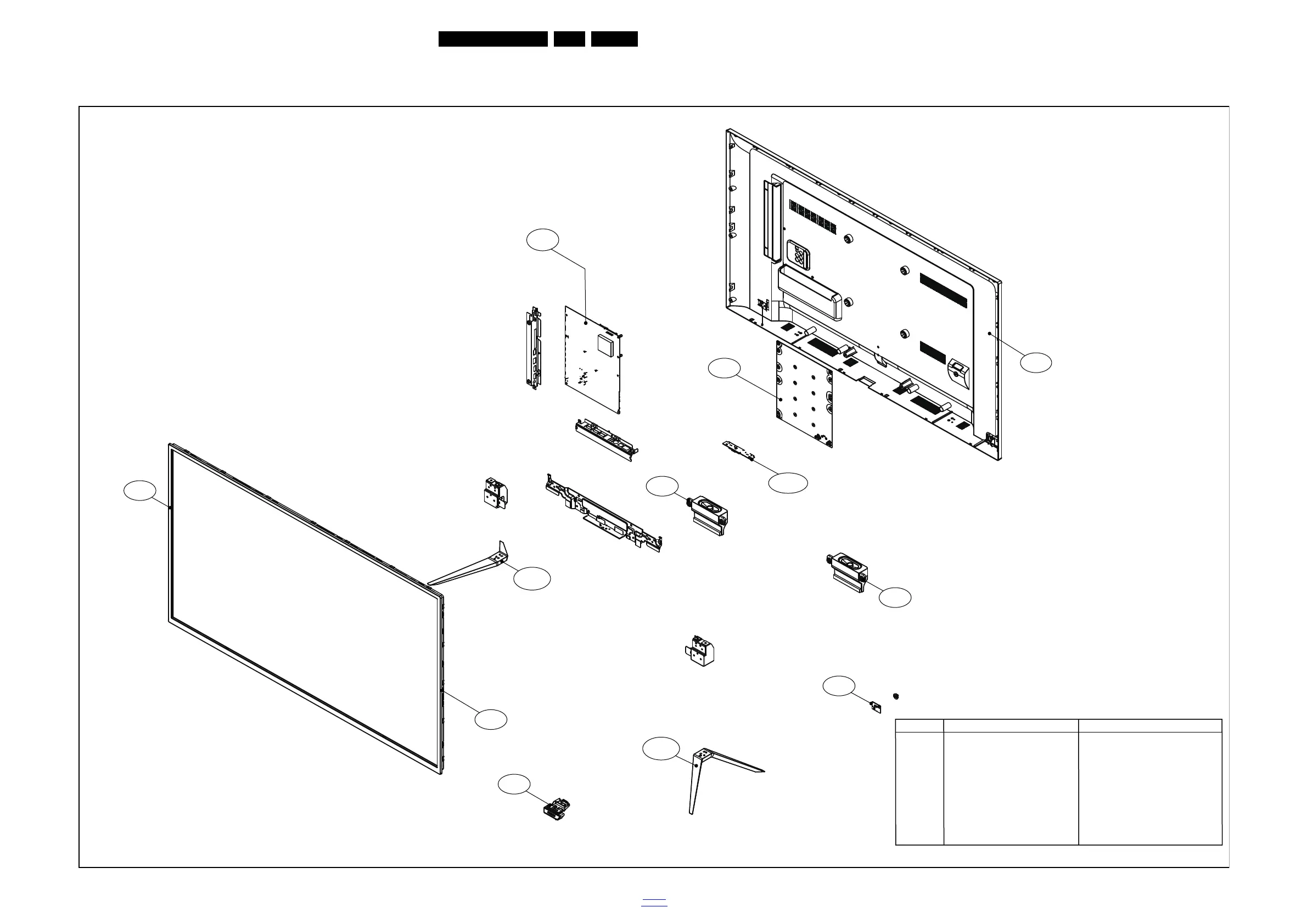

20151_800.eps
6801 series 43"
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0030 Bezel
0040 Rear cover
0050R Stand_R
0050L Stand_L
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers
WiFi01 WiFi_USB
Pos No. Description Remarks
0040
0030
1184
1054
1050
1056
1184
1057
WIFI01
1053
0050R
0050L
