11.6 7601 series 65"

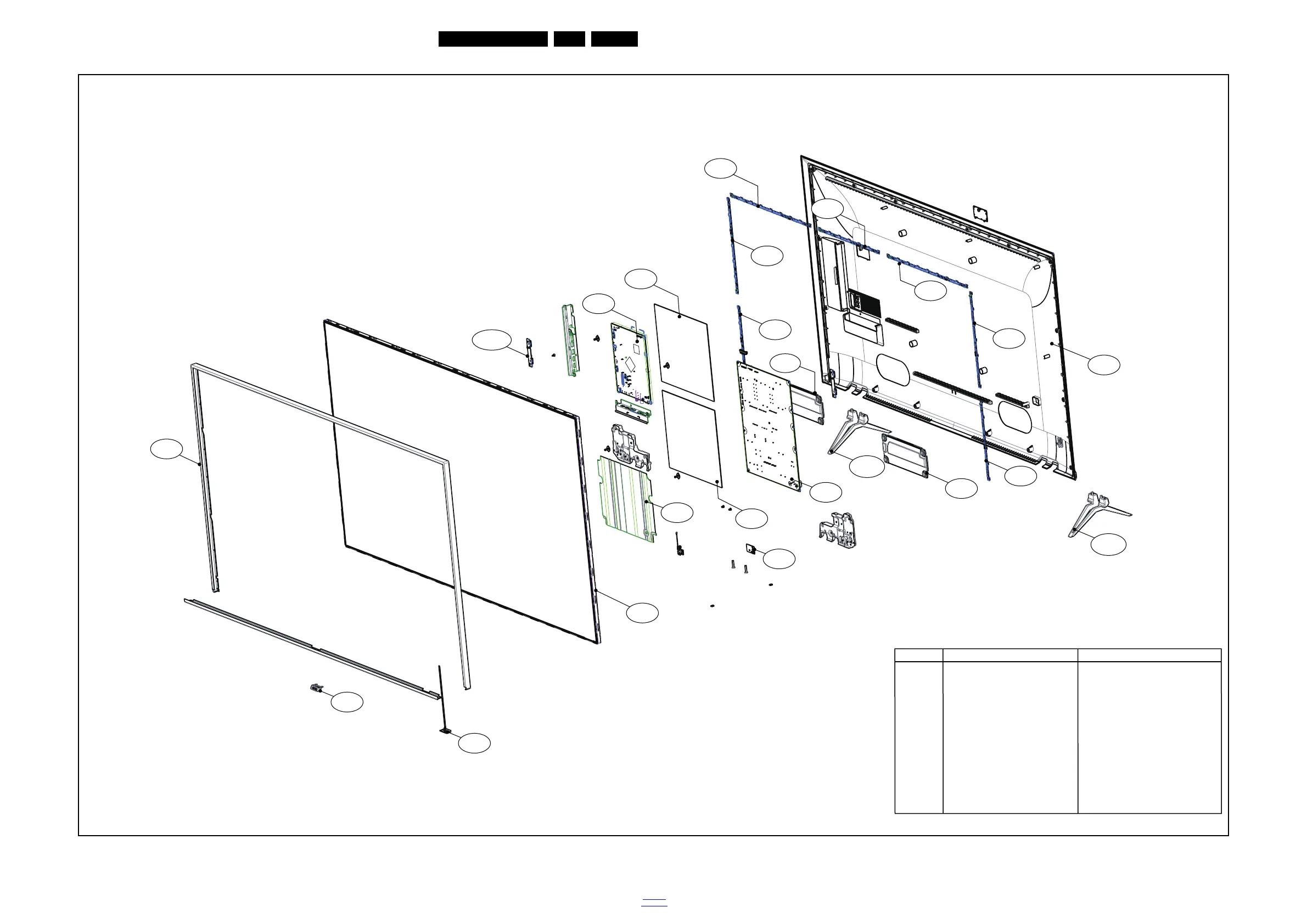

20152_801.eps
7601 series 65"
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
0030 Bezel
0040 Rear cover
0050R Stand Assy - R
0050L Stand Assy - L
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1061 LED Modules
1062 LED Modules
1063 LED Modules
1068 LED Logo
1176 Remote control Not displayed
1184 Speakers
WiFi01 WiFi_USB
Pos No. Description Remarks
0040
1184
1061
1062
1062
1061
0030
1050
1056
1068
1057
0095
1054
0050R
0050L
1053
1054
1063
1062
1054
1063
1184
WIFI01
