6. CONNECTIONS TO EXTERNAL EQUIPMENT

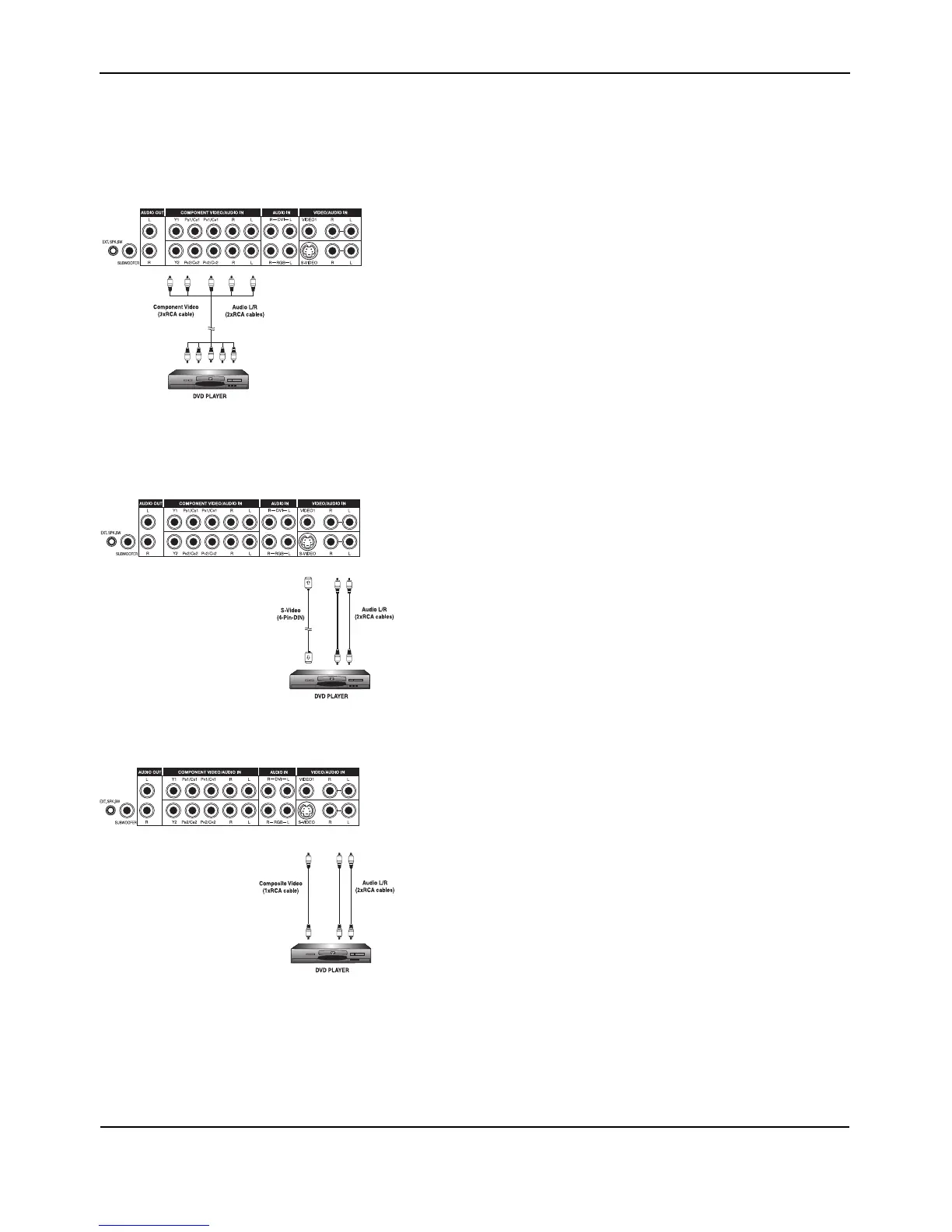

6.1 CONNECTING A DVD PLAYER
Using Component Video Input
1 Connect the green-colored (labeled as "Y") jack of the DVD to the
green-colored "Y1" jack of the monitor.
2 Connect the red-colored (labeled as "PR" or "CR") jack of the DVD
to the red-colored "PR1/CR1" jack of the monitor.
3 Connect the blue-colored (labeled as "PB" or "CB") jack of the DVD
to the blue-colored "PB1/CB1" jack of the monitor.
4 Connect the red (R) and white (L) audio jacks of the DVD to the
R and L audio-in jacks of the monitor.
Note:
There are two sets of component inputs provided. You can use either
set of component inputs to connect your DVD.
Using S-Video Input
1 Connect the S-Video (4-pin DIN) connector of the DVD to the
"S-VIDEO" input of the monitor.
2 Connect the red (R) and white (L) audio jacks of the DVD to the
R and L audio-in jacks located next to the S-VIDEO connector.
Using Composite (AV) Video Input
1 Connect the "yellow" (video) connector of the DVD to the yellow
"VIDEO 1" input of the monitor.
2 Connect the red (R) and white (L) audio jacks of the DVD to the
R and L audio-in jacks located next to the yellow "Video 1"
connector.
