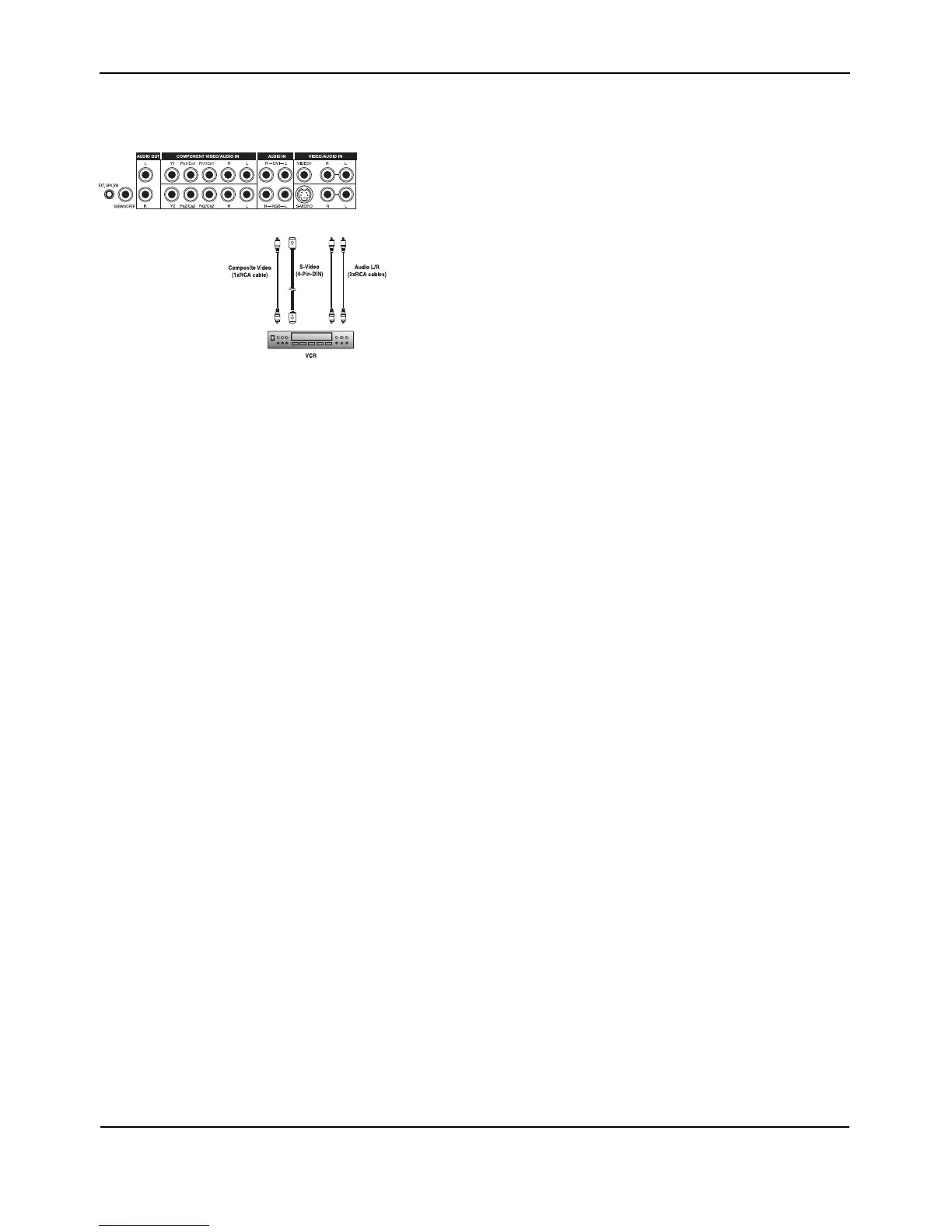

6.3 CONNECTING A VCR
Using S-Video Input
1 Connect the S-Video (4-pin DIN) connector of the VCR to the
"S-VIDEO" input of the monitor.
2 Connect the red (R) and white (L) audio jacks of the VCR to the
R and L audio-in jacks located next to the S-VIDEO connector.
Using Composite Input
1 Connect the "yellow" (video) out connector of the VCR to the
yellow "Video 1" input of the monitor.
2 Connect the red (R) and white (L) audio-out jacks of the VCR to the
R and L audio-in jacks located next to the yellow "Video 1"
connector.
or
