2. Connecting of Peripherals
Before connecting peripherals to your CD-I system,
be sure to refer to the instruction manual for
each device so that you know to connect it
correctly. Also make sure that the peripheral
device is compatible with the CD-I system.
Typical connections between the main CD-I system
units and the various peripheral devices are
explained below.
- Amplifier
The sound reproduction quality of display units is
in general too low to enjoy CD quality sound. Via
the audio sockets provided on the MMC module a
normal HiFi system can be connected.
Connect the amplifier to the Audio L/R output
located at the rear of the panel of the MMC module
with the L/R audio cable supplied. You may use any
of the amplifier inputs except Phone. Be sure to
observe the correct channel polarity.
00

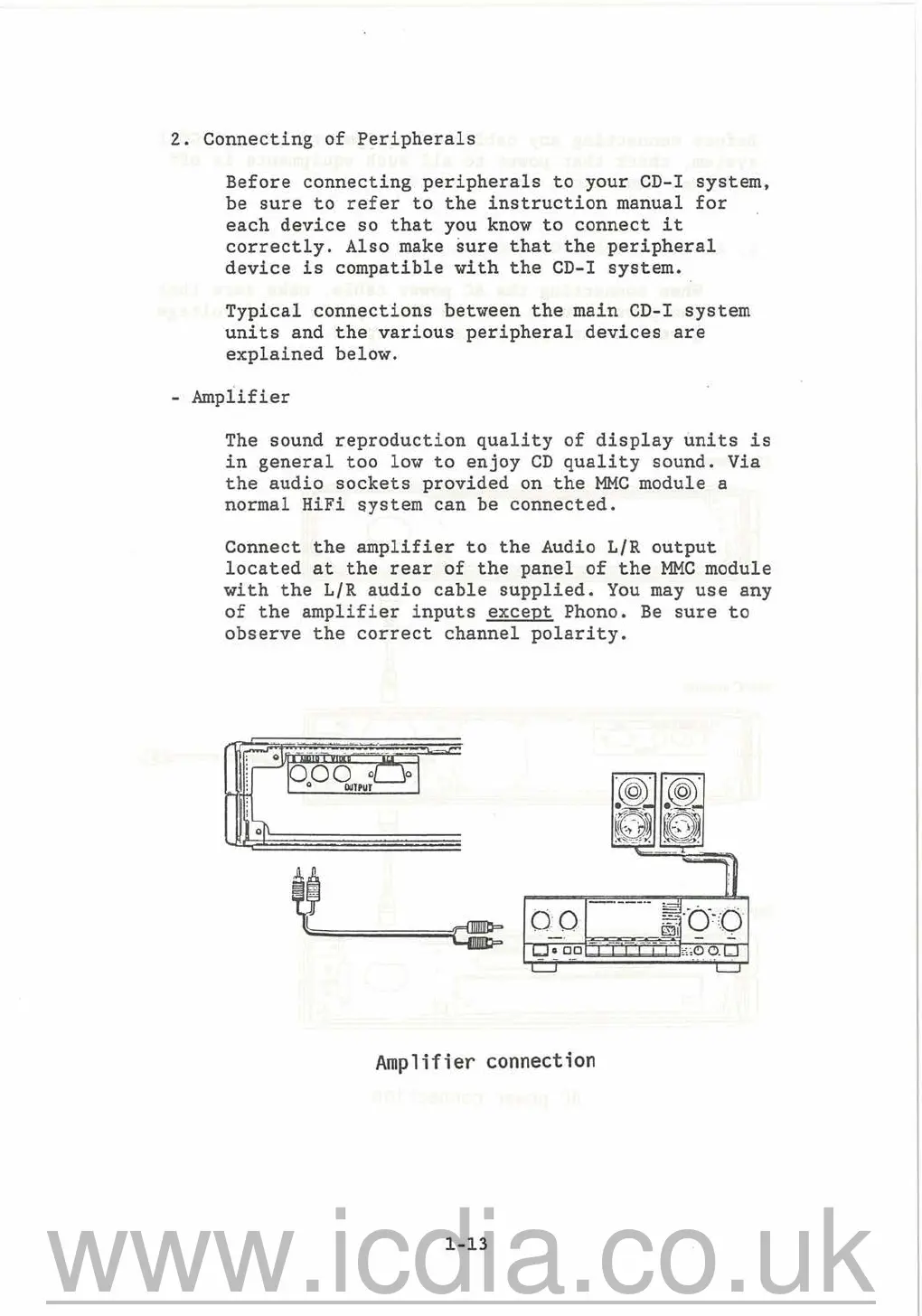

Amplifier connection
