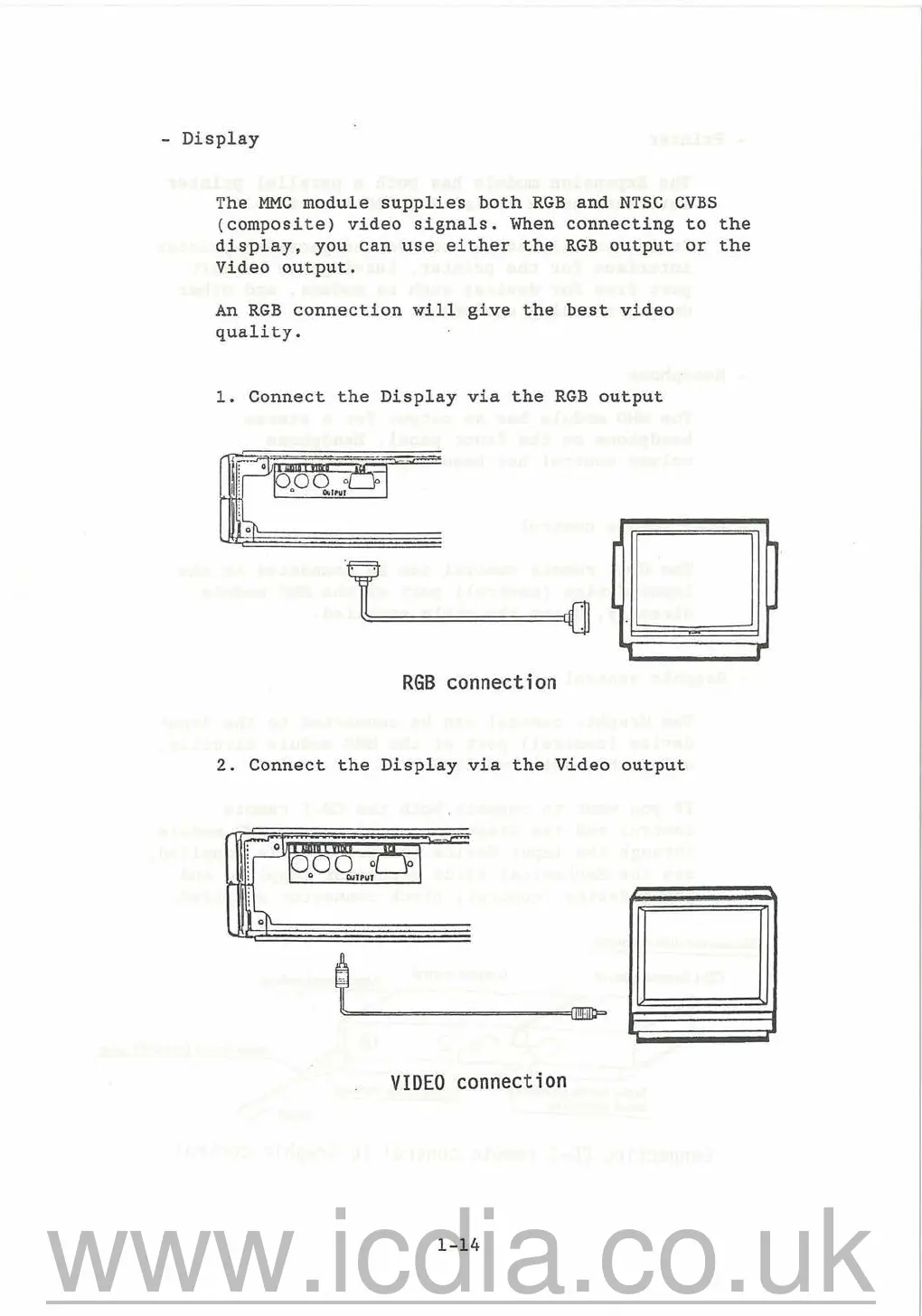

Philips CD-I - Page 17

- Display
The MMC module supplies both RGB and NTSC CVBS
(composite) video signals. When connecting to the
display, you can use either the RGB output or the
Video output.
An RGB connection will give the best video
quality.
1. Connect the Display via the RGB output
RGB connection
2. Connect the Display via the Video output
0
VIDEO connection
1-14
