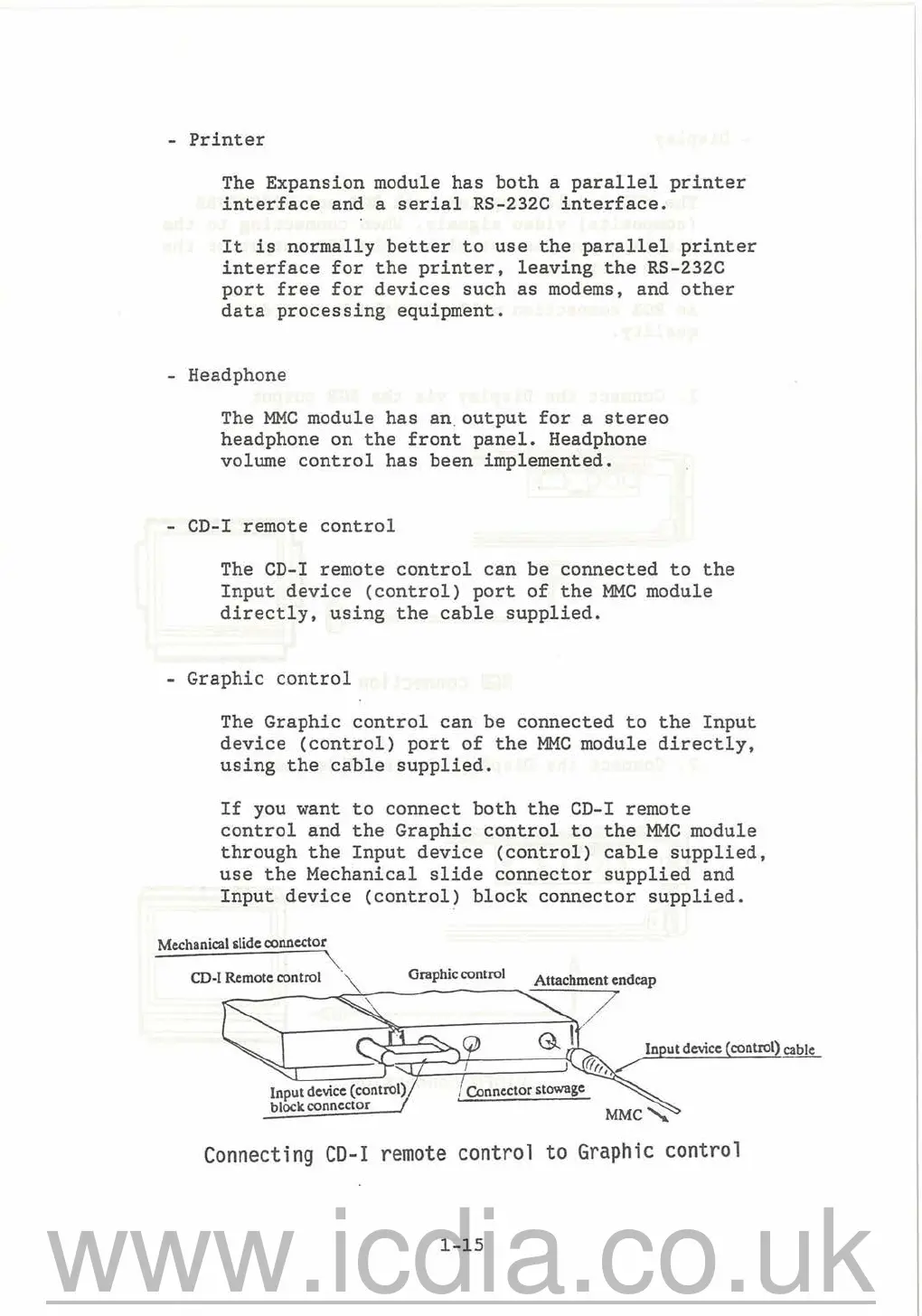

- Printer
The Expansion module has both a parallel printer
interface and a serial RS-232C interface.
It is normally better to use the parallel printer
interface for the printer, leaving the RS-232C
port free for devices such as modems, and other
data processing equipment.
- Headphone
The
MMC module has an output for a stereo
headphone on the front panel. Headphone
volume control has been implemented.
- CD-I remote control
The CD-I remote control can be connected to the
Input device (control) port of the MMC module
directly, using the cable supplied.
- Graphic control
The Graphic control can be connected to the Input
device (control) port of the MMC module directly,
using the cable supplied.
If you want to connect both the CD-I remote
control and the Graphic control to the MMC module
through the Input device (control) cable supplied,
use the Mechanical slide connector supplied and
Input device (control) block connector supplied.
Mechanical i.lide connector
CD-I Remote control
Graphic control
((,,, /
Input device (control) cable
Connecting CD-I remote control to Graphic control
1-15
