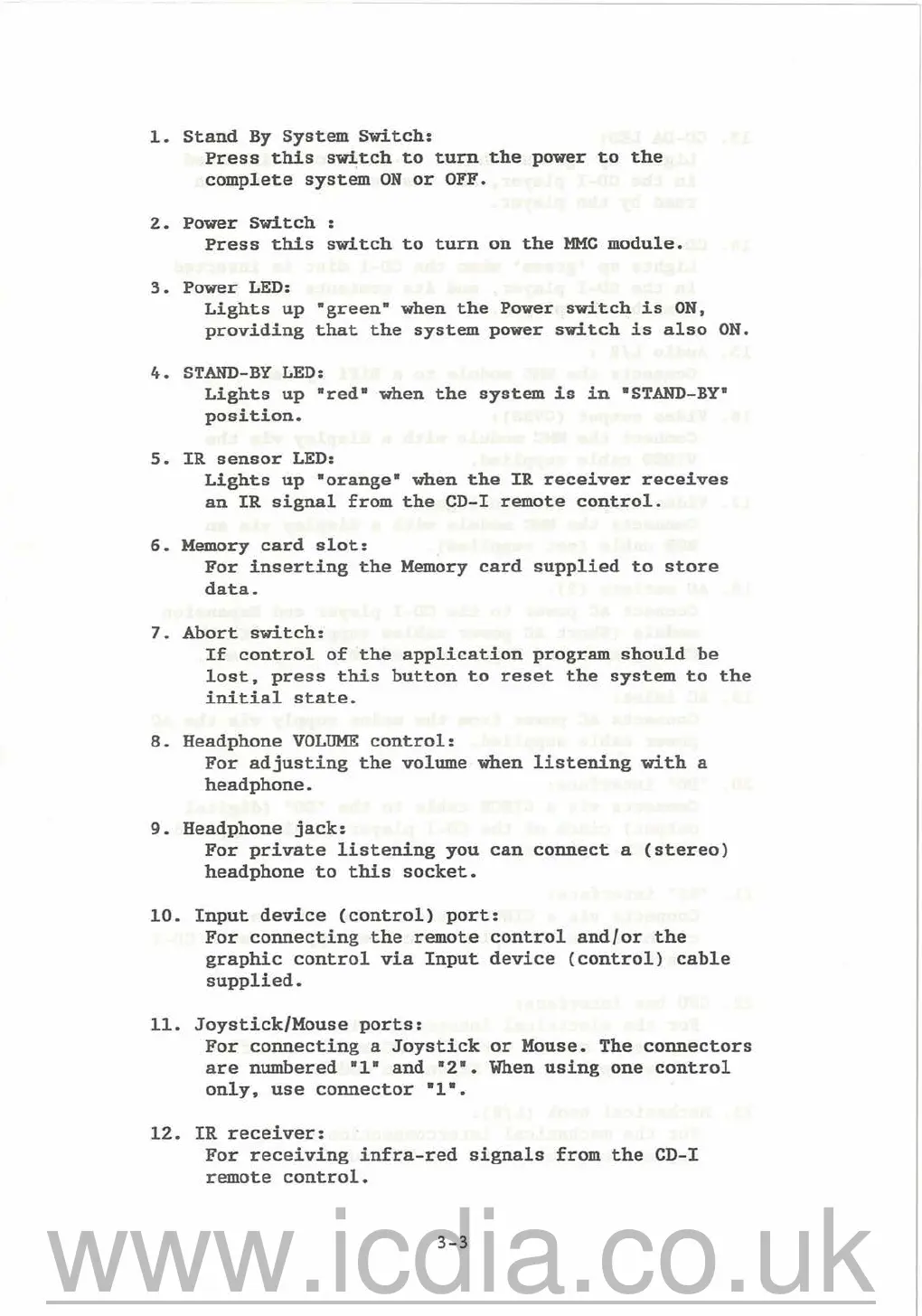

1. Stand By System Switch:
Press this switch to turn the power to the
complete system ON or OFF.
2. Power Switch
Press this switch to turn on the MMC module.
3. Power LED:
Lights up •green• when the Power switch is ON,
providing that the system power switch is also ON.
4. STAND-BY LED:
Lights up •red• when the system is in •STAND-BY•
position.
5. IR sensor LED:
Lights up •orange• when the IR receiver receives
an IR signal from the CD-I remote control.
6. Memory card slot:
For inserting the Memory card supplied to store
data.
7. Abort switch:
If control of the application program should be
lost, press this button to reset the system to the
initial state.
8. Headphone VOLUME control:
For adjusting the volume when listening with a
headphone.
9. Headphone jack:
For private listening you can connect a (stereo)
headphone to this socket.
10. Input device (control) port:
For connecting the remote control and/or the
graphic control via Input device (control) cable
supplied.
11. Joystick/Mouse ports:
For connecting a Joystick or Mouse. The connectors
are numbered •1• and •2•. When using one control
only, use connector •1•.
12. IR receiver:
For receiving infra-red signals from the CD-I
remote control.
3-3
