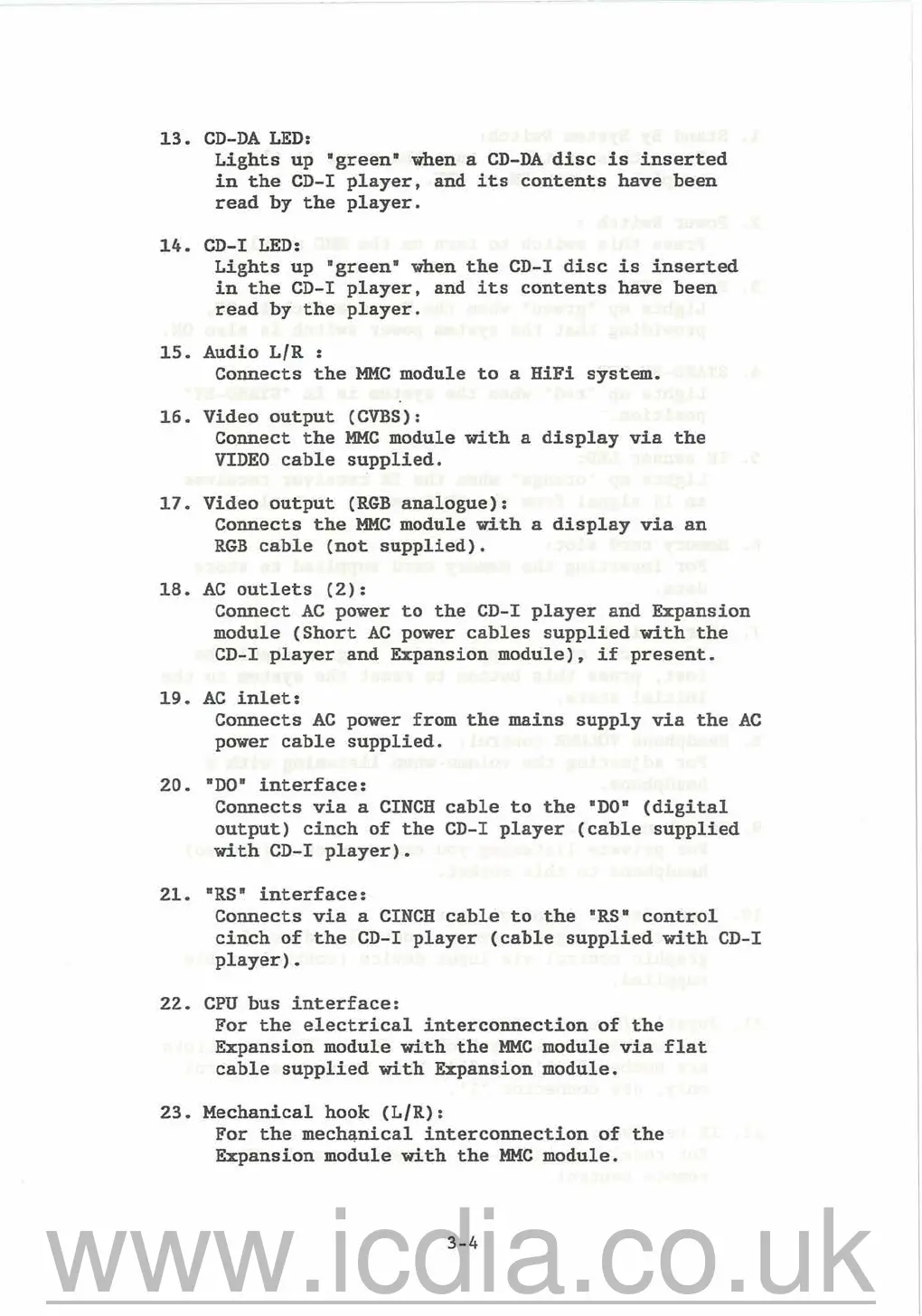

13. CD-DA LED:
Lights up •green• when a CD-DA disc is inserted
in the CD-I player, and its contents have been
read by the player.
14. CD-I LED:
Lights up •green• when the CD-I disc is inserted
in the CD-I player, and its contents have been
read by the player.
15. Audio L/R
Connects the MMC module to a HiFi system.
16. Video output (CVBS):
Connect the MMC module with a display via the
VIDEO cable supplied.
17. Video output (RGB analogue):
Connects the MMC module with a display via an
RGB cable (not supplied).
18. AC outlets (2):
Connect AC power to the CD-I player and Expansion
module (Short AC power cables supplied with the
CD-I player and Expansion module), if present.
19. AC inlet:
Connects AC power from the mains supply via the AC
power cable supplied.
20. •no• interface:
Connects via a CINCH cable to the •no• (digital
output) cinch of the CD-I player (cable supplied
with CD-I player).
21. •Rs• interface:
Connects via a CINCH cable to the •Rs• control
cinch of the CD-I player (cable supplied with CD-I
player).
22. CPU bus interface:
For the electrical interconnection of the
Expansion module with the MMC module via flat
cable supplied with Expansion module.
23. Mechanical hook (L/R):
For the mechanical interconnection of the
Expansion module with the MMC module.
3-4
