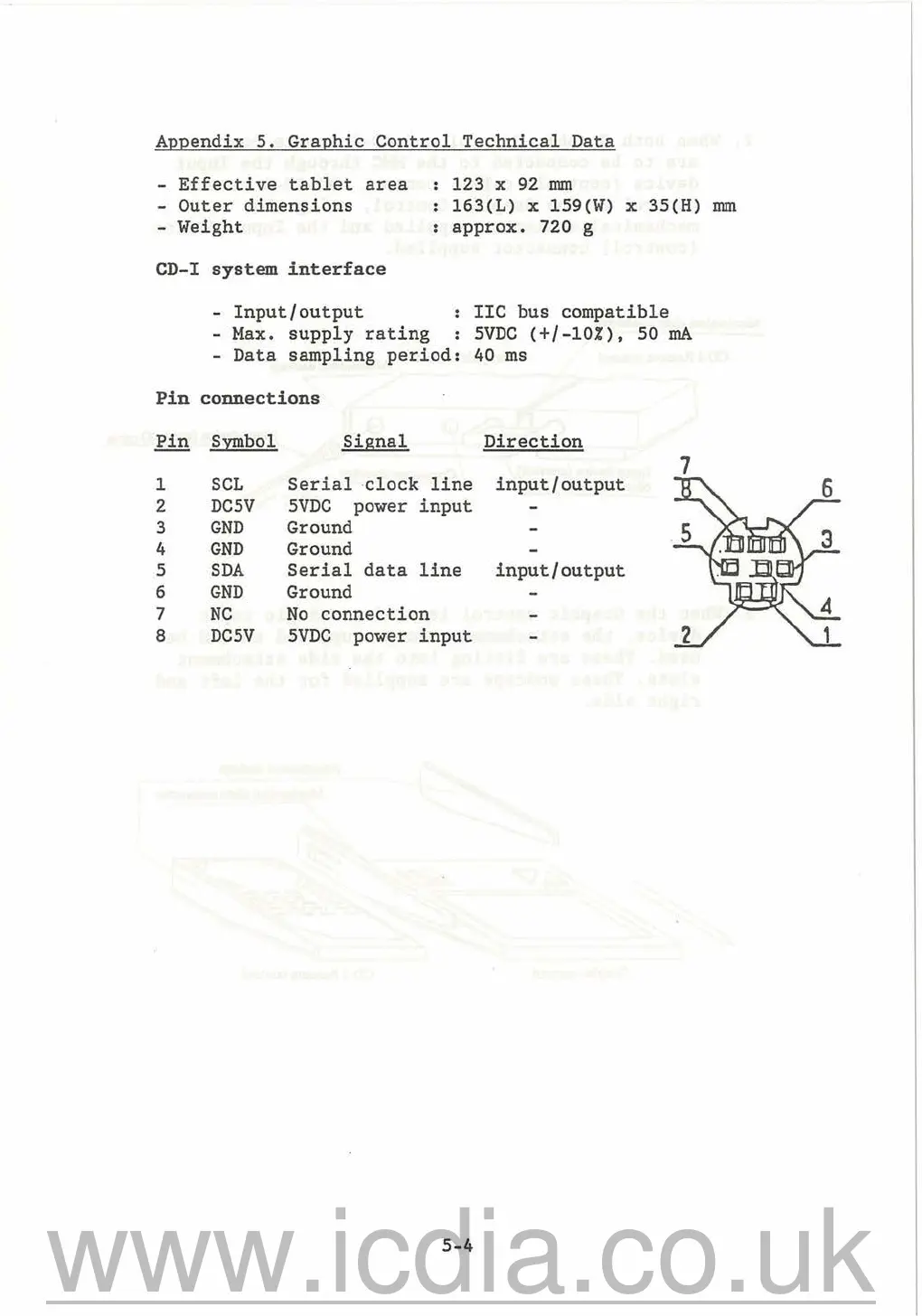

Appendix 5. Graphic Control Technical Data
- Effective tablet area
- Outer dimensions
- Weight
CD-I system interface
123 X 92 mm
163(L) x 159(W) x 35(H) mm
approx. 720 g
-
Input/output IIC bus compatible
- Max. supply rating 5VDC (+/-10%), 50 mA
- Data sampling period: 40 ms
Pin connections
Pin Svmbol Signal
Direction
7
1 SCL Serial clock
line input/output
2 DC5V
5VDC power
input
3 GND Ground
4
GND Ground
5
SDA
Serial
data line input/output
6 GND Ground
7 NC No connection
8 DC5V 5VDC power input
5-4
