4-4
DISMANTLING INSTRUCTIONS
• For proper mounting it is necessary that the pins
on the front side (see picture 14) are put into the
feed holes on the front cabinet ( see picture 15).
• Move the module frontwards until the guiding pins
at the rear slip into the holes on the bottom.
• Fix the module with 2 screws at the rear
(see picture 13).
Dismantling the
CD module
• Remove top cover and ornamental cover from the tray first
→ see description on pages 4-1 and 4-2.
• Loosen 2 screws at the rear side → see picture 13.
• Move the complete module backwards.
• Pull the module on rear side up and turn it out.
• Put the module to a proper service position.
→ see also chapter SERVICE HINTS.

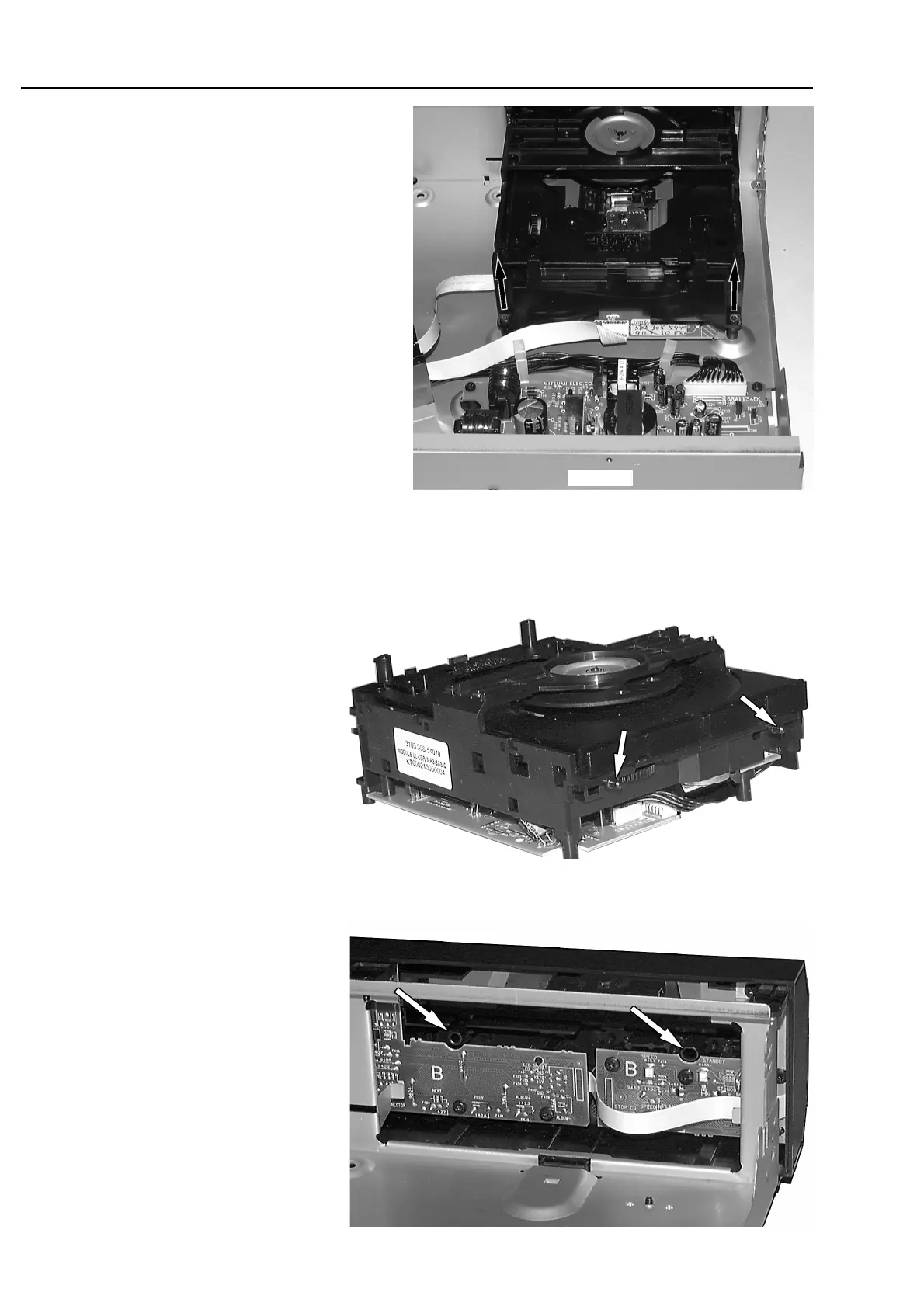

picture 13
picture 14
picture 15
Mounting the
CD module
