5-2
SERVICE HINTS

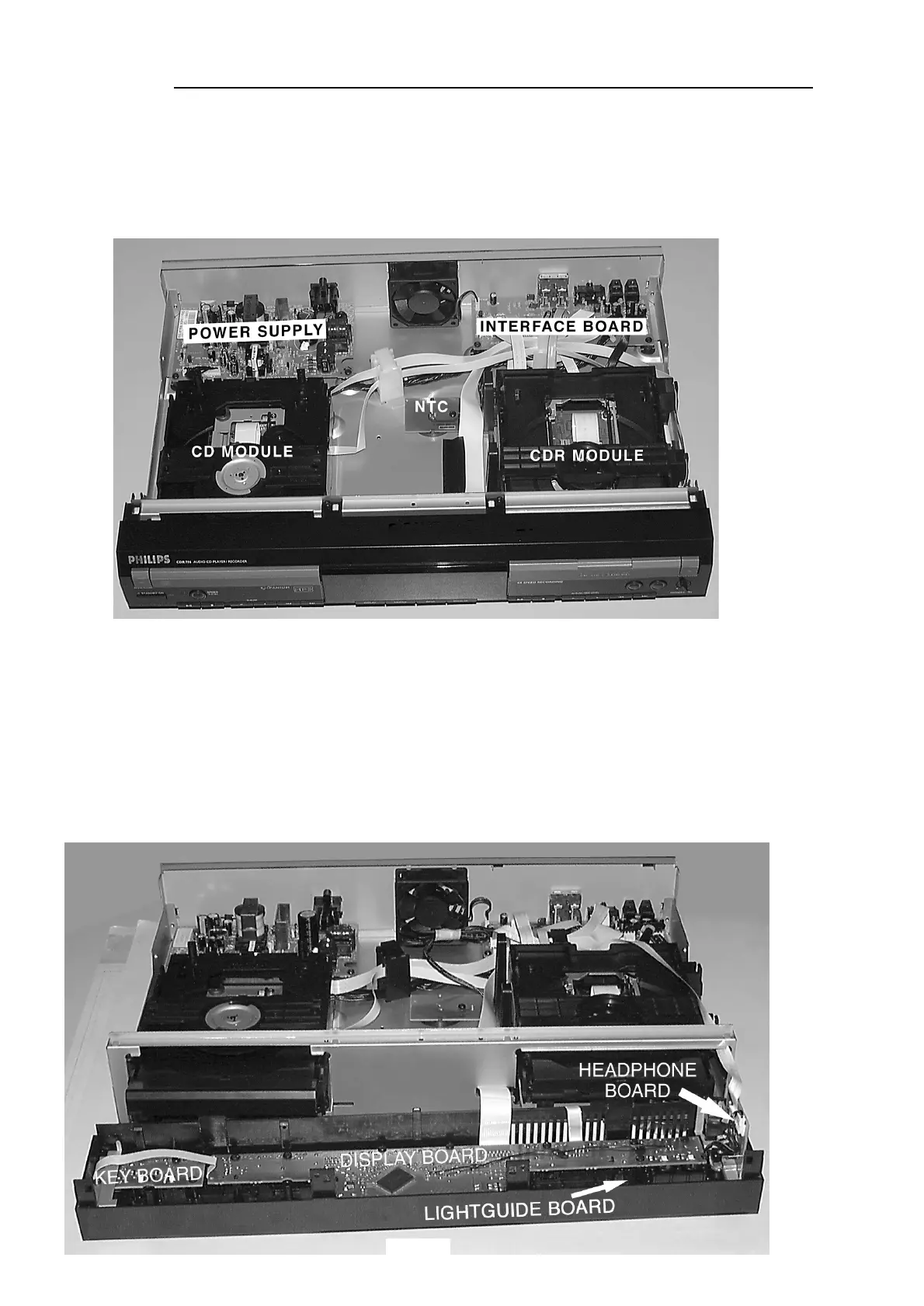

General Service position
For measurements on: Power Board
Intrface Board
For manual release of: CD tray
CDR tray
Service position
Front Board
For dismantling instructions see chapter 4-1 to 4-3
picture 24
picture 25
