DISMANTLING INSTRUCTIONS
Dismantling the
Power board
• Remove top cover first → see description on page 4-1.
• Loosen 3 screws as indicated in picture 20.
• Move the board backwards to release the mains socket.
• Lift it on the rear and turn it out.

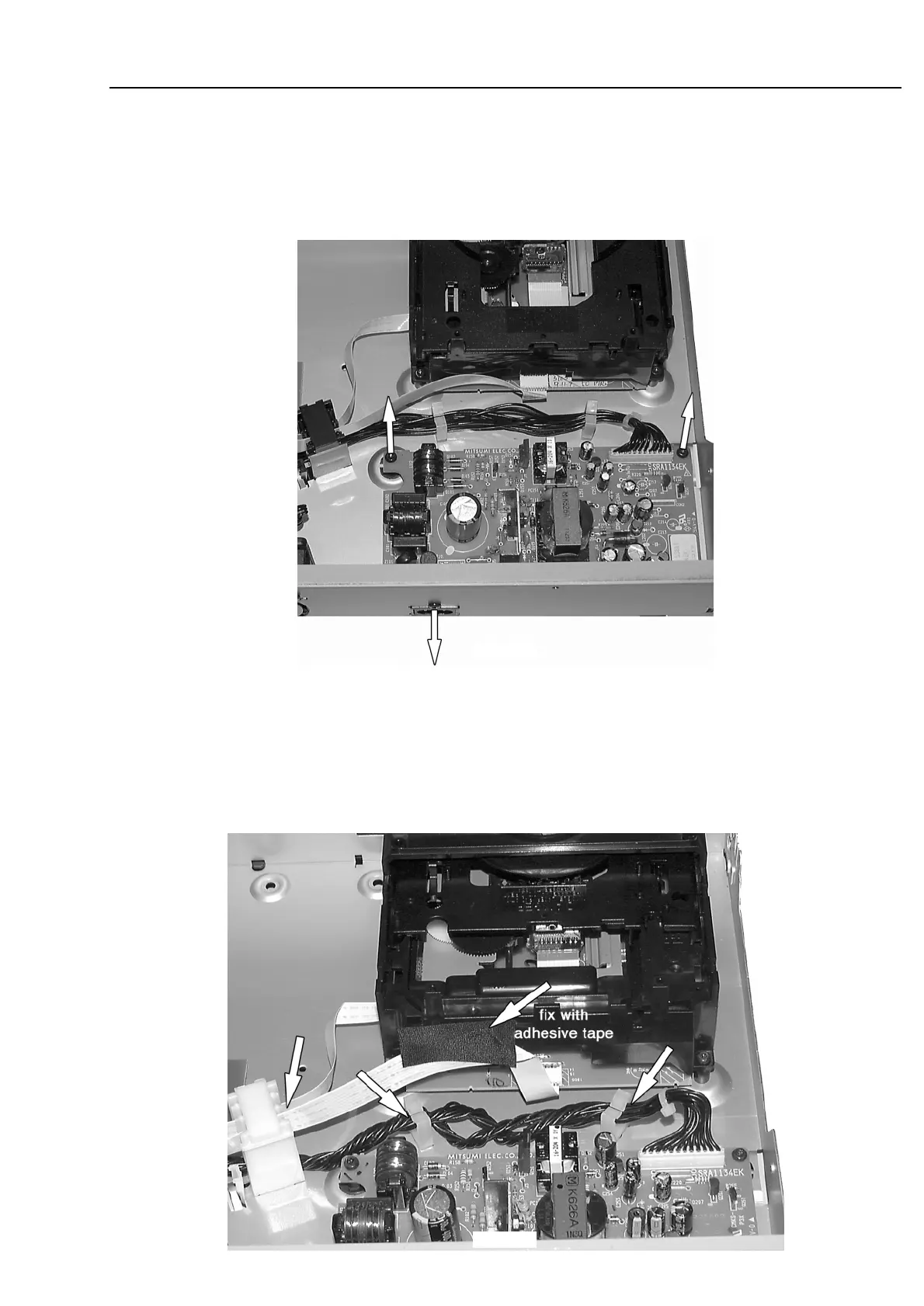

picture 20
!!
Attention: to fulfil safety requirements after repair it is
absolutely necessary to fix the cables as in
its original condition. See picture 21.
picture 21
