4-6
DISMANTLING INSTRUCTIONS
Dismantling the
CDR module
continued
• to dismantle the Loader module:
- move tray completely out.

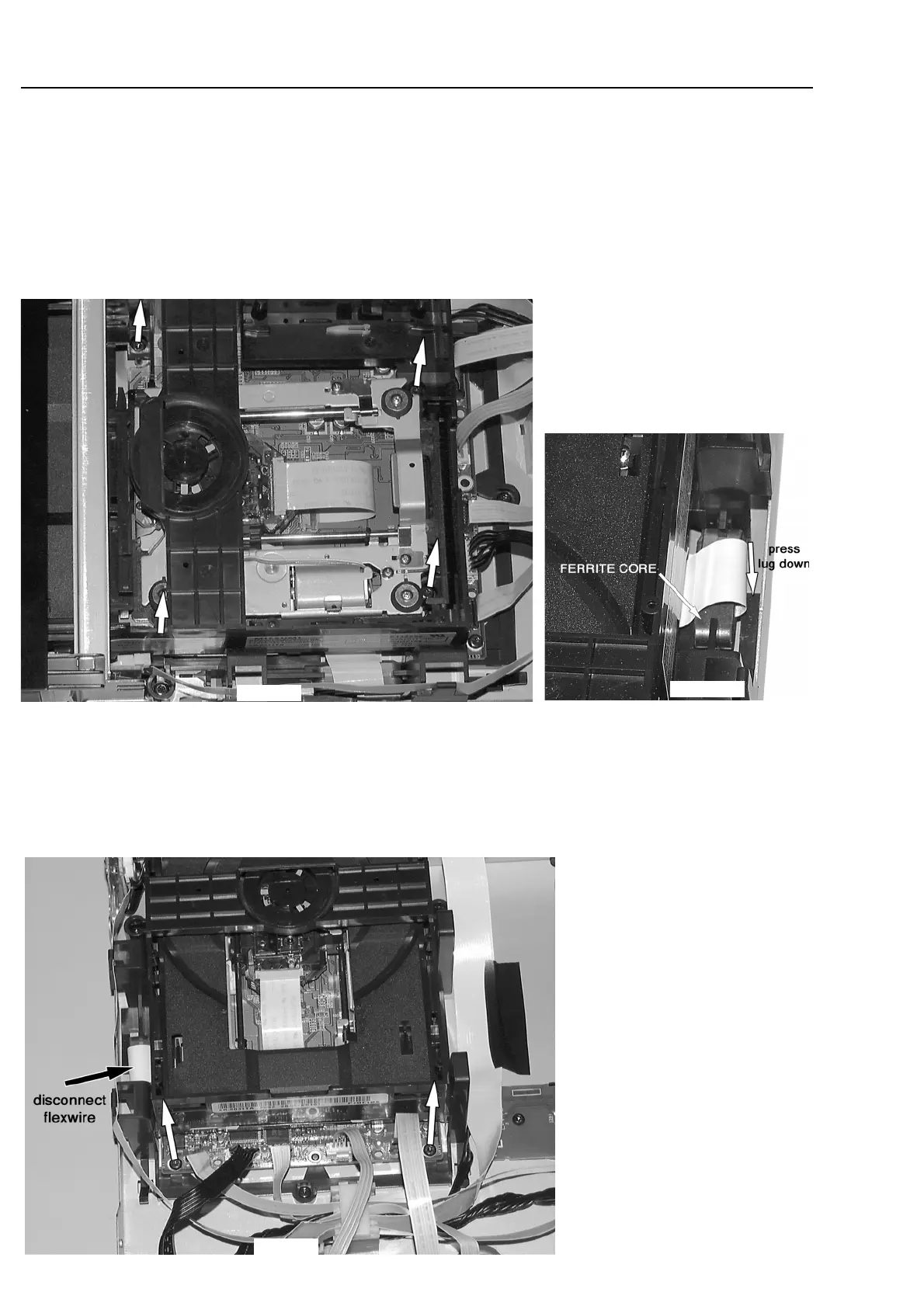

- loosen 4 screws to frame as shown in picture 18.
attention: flex wire to Mozart Board is too short for simple fetching the loader out. It is advised either
to dismantle the complete module as described on page 4-5 and to move it a few centimetres back
or to loosen ferrite core as shown in picture 18a.
- put the module to a proper service position.
→ see also chapter SERVICE HINTS.
• to dismantle the MOZART Board:
- loosen 2 screws to frame as shown in picture 19.
- unlock flex foil connector and disconnect flex wire.
- pull the board out of it´s guidings (backwards).
- place the Mozart board to a proper service position.
→ see also chapter SERVICE HINTS.
picture 19
picture 18
picture 18a
Press locking lug with a screwdriver down
and move ferrite core out of its guiding.
Turn ferrite core up and move it gently
along the cable.
