Philips CDR796 - Dismantling the CDR Module

4-5
DISMANTLING INSTRUCTIONS
Dismantling the CDR module
• Remove top cover and ornamental cover from the tray first
→ see description on pages 4-1 and 4-2.
• move tray back to
closed position.
• to dismantle the complete module:
- loosen 3 screws to bottom cabinet (see picture 16
1)
- disengage catches (see picture 17
2)
- move module backwards
3 until catches to bottom cabinet
become free and pull it up.

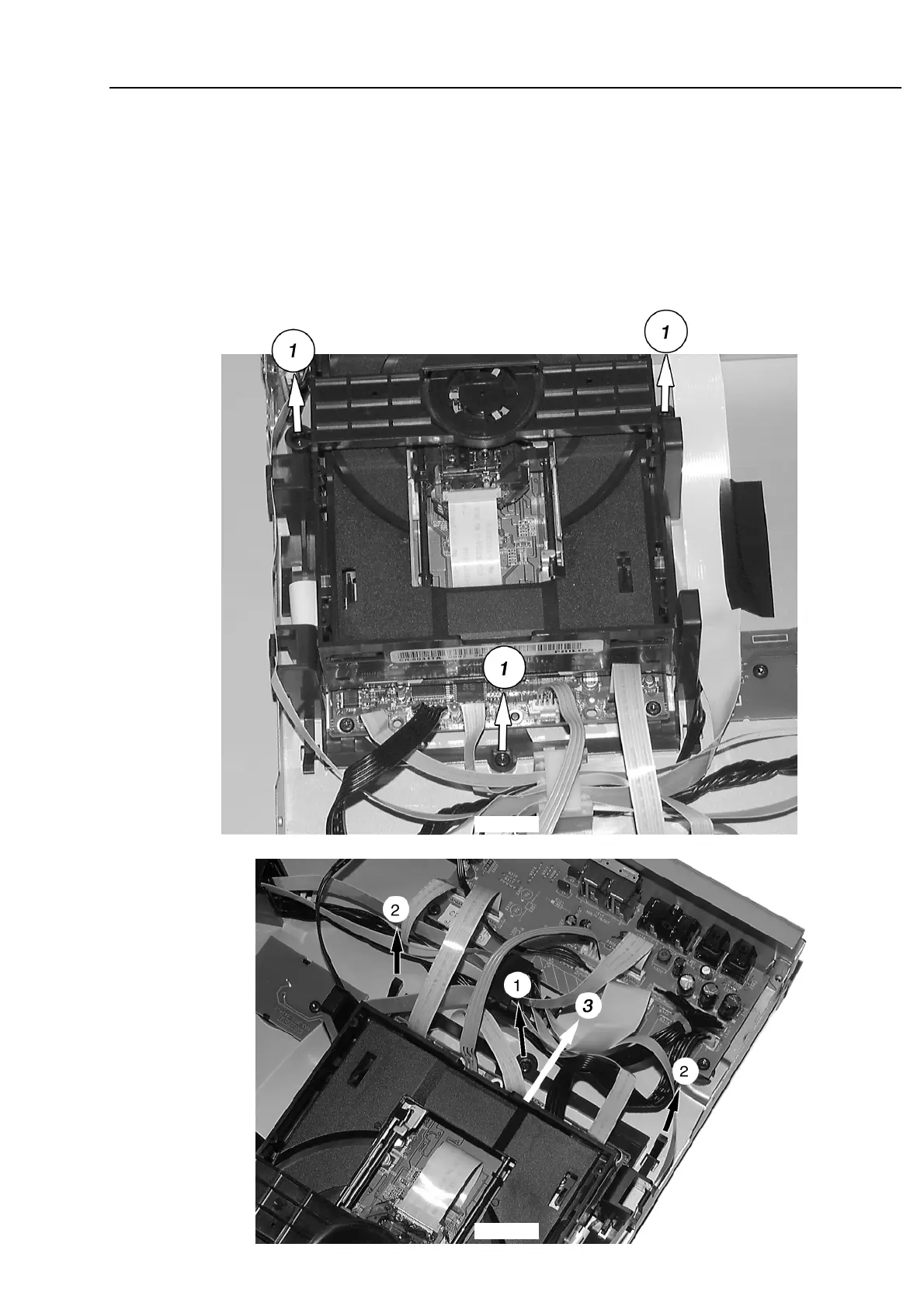

picture 16
picture 17
