Philips CU1216 Series - Figure 5.6 TDA10046 Board Configuration Window; Figure 5.7 TDA10046 Registers; Table 5.4 Descriptions for the TDA10046 Board Configuration Window

BU RF Solutions
- 19 -

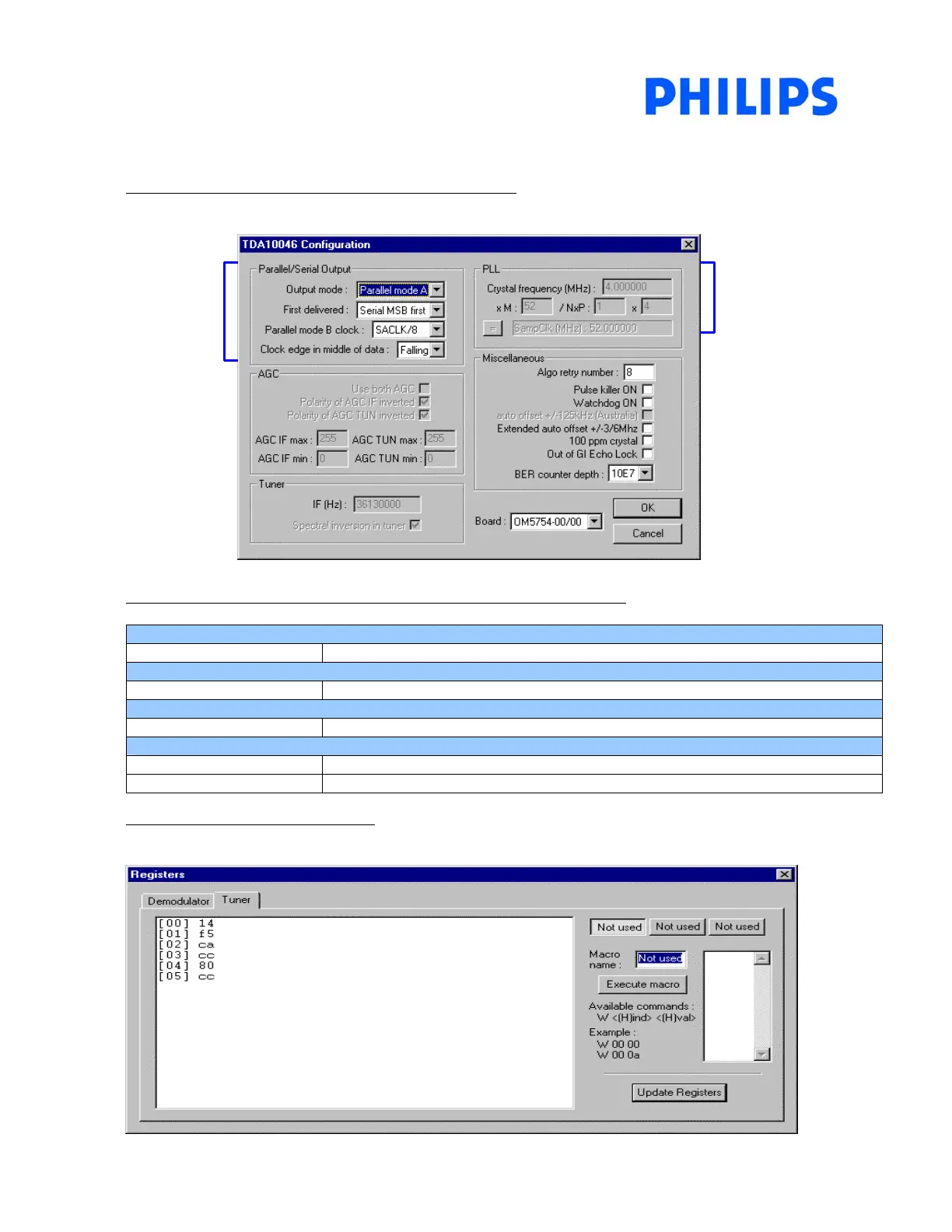

FIGURE 5.6 : TDA10046 BOARD CONFIGURATION
Table 5.4 Descriptions of the TDA10046 board configuration window
Output Configuration
Output Mode Specifies output mode (Parallel mode A, Parallel mode B, Serial)
Tuner Configuration
IF frequency Enter IF center frequency delivered by the tuner (36.125Mhz or 43.75Mhz)
Misc configuration
BER counter depth Defines over many symbols the BER is measured.
PLL
PLL factors (M, N, P) Set the different divider ratios of the PLL / M = sampling clk of 52Mhz
Crystal frequency Specifies the Xtal frequency connected to the TDA10046
FIGURE 5.7 : TDA10046 Registers
MPEG TS
Configuration
Sampling
Clock control
