4. An Overview of the Evaluation Board
The evaluation board can be classified to few different sections. Refer to Diagram 4.1 /4.2.
A. +5.0Volts power supply, 3.3Volts and 1.8Volts supplies via stabilizers for digital part.
B. On-board IIC Interface.
C. LVDS interface for output MPEG2 Transport Stream.
D. Common socket to install CU1216 or TU1216 product.
E. CU1216 DVB_C & TU1216 DVB_T receiver.
The dimension of this board is approximately 150mm by 110mm.

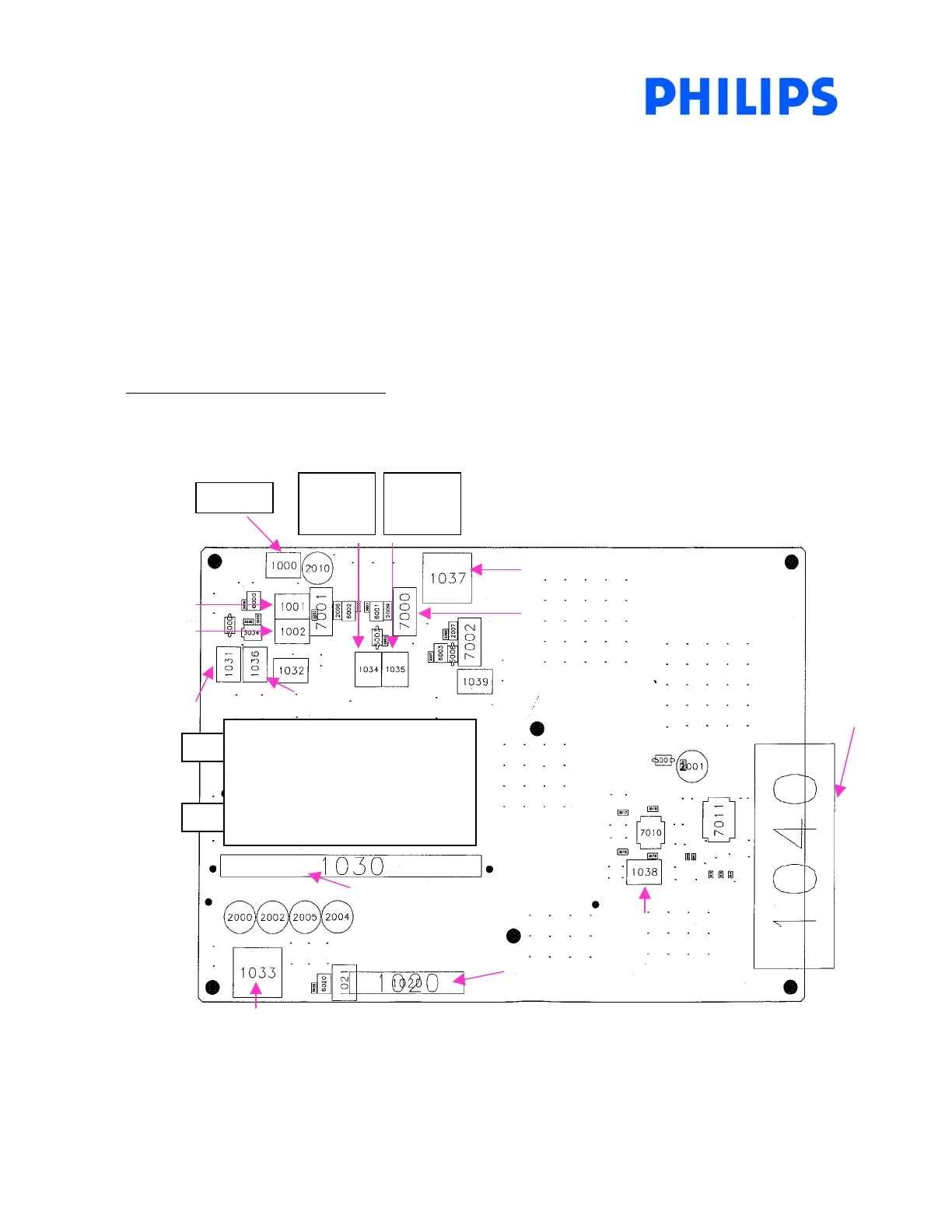

Figure 4.1 : Evaluation Board layout
(C ) LVDS interface for
MPEG2 Transport Stream O/p
IIC Input
Connector
(
D
)
Common Socket for DUT
IF O/p
+1.8V o
p
tion
(B) On board IIC Buffer
+2.5V option
+5V Ant Power u
p
o
p
tion
+4V Ext AGC
PLL Address
Select
1 3
2 4
1 3
2 4
+3.3V Supply
Power reset
(E) CU1216 DVB-C /
TU1216 DVB-T
2 1
