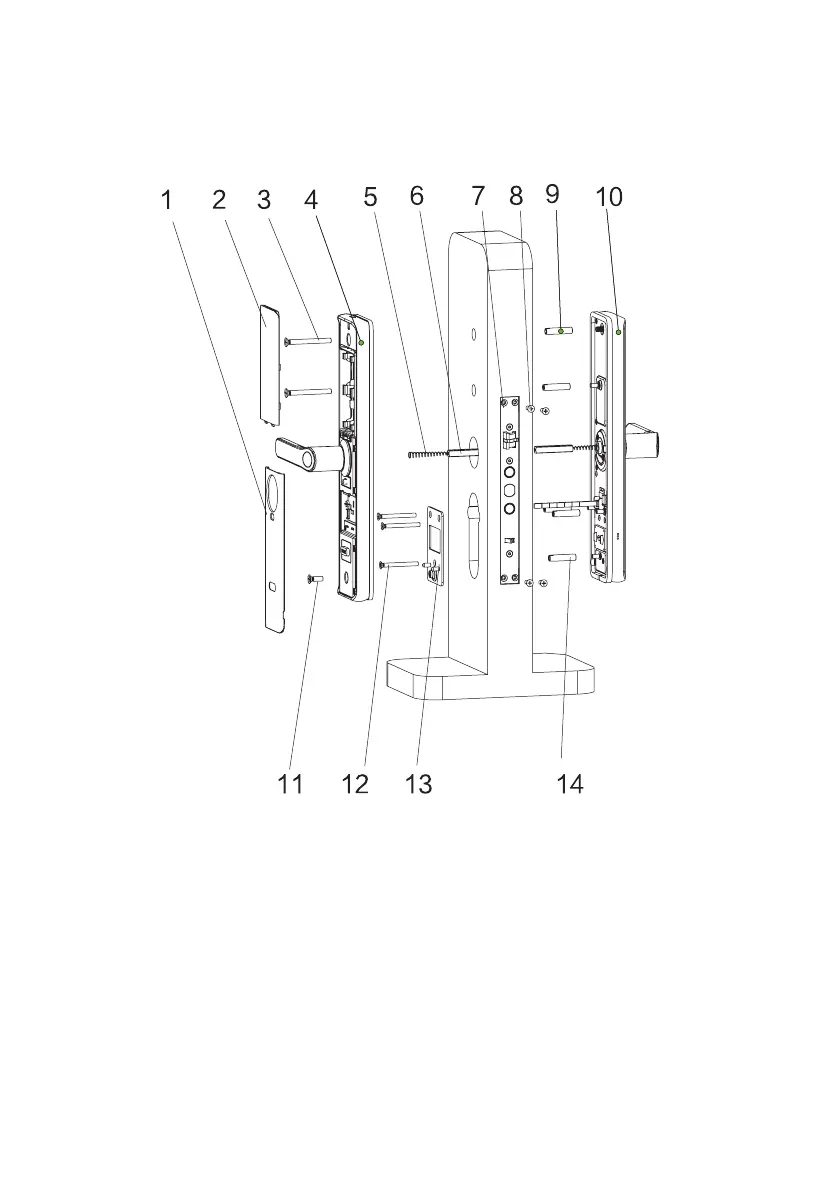

Philips DDL173LCGBB/97 - Exploded Views

4
1. Inner escutcheon
bottom part (x1)
2. Battery cover(x1)
3. M6 xed screw (x2)
4. Inner escutcheon(x1)
5. Square shaft
compressed spring (x2)
6. Square shaft (x2)
7. Mortise(x1)
8. Fixed screw (x4)
9. M6 connecting
screw tube (x2)
10. Outer escutcheon(x1)
11.M6 xed screw (x1)
12.M5 xed screw (x3)
13. Mounting plate (x1)
14. M5 connecting
screw tube (x3)
Exploded Views
