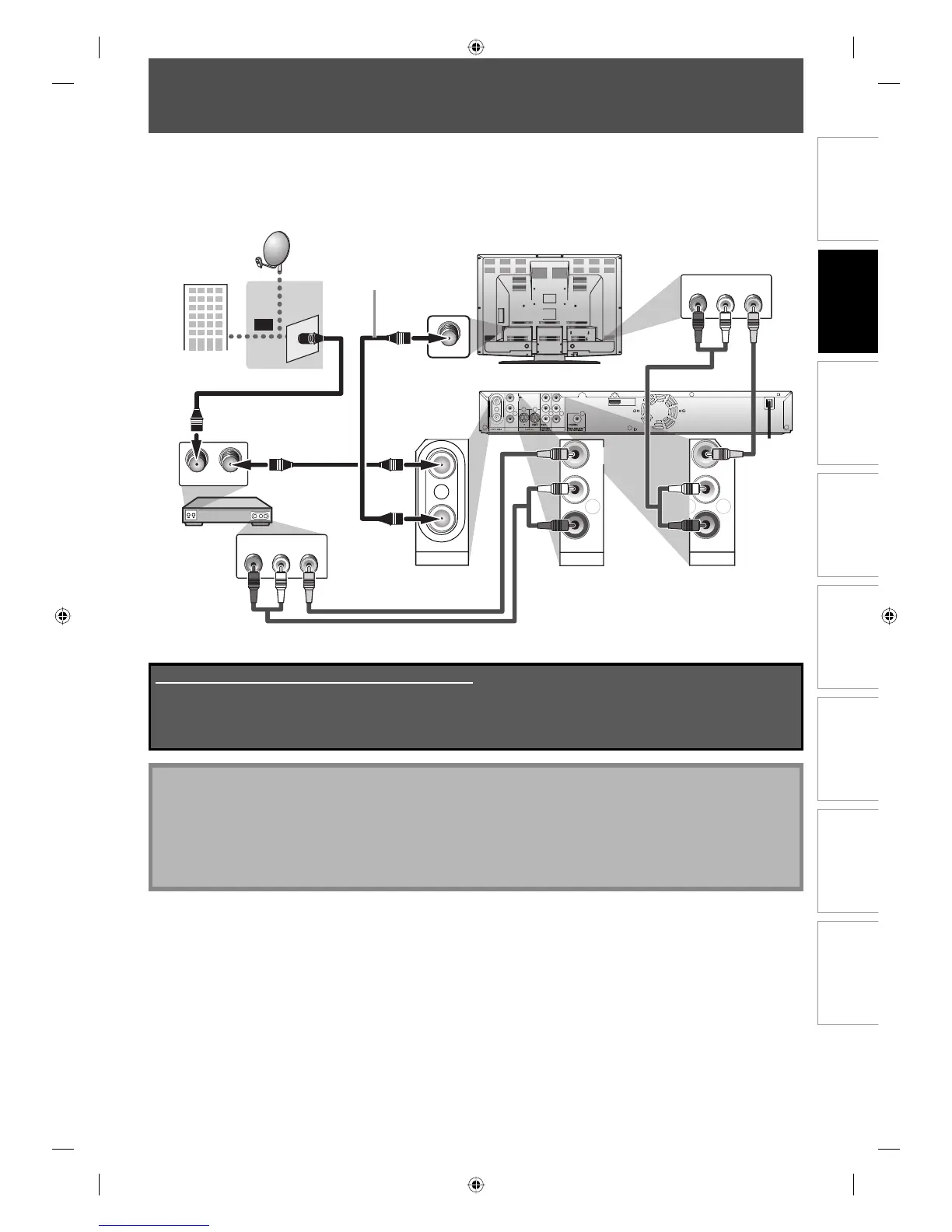

CONNECTION TO A CABLE / SATELLITE BOX
1) Disconnect the power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) Plug in the power cords of the devices to the AC outlet.
Note
• Required cables and connecting methods differ depending on the cable/satellite box.
For more information, please contact your cable/satellite provider.
With this setup:
• You can record any unscrambled channel by selecting the channel on the cable/satellite box. Be sure that the
cable/satellite box is turned on.
• You cannot record one channel while watching another channel.
RF OUTANT. IN
IN
OUT
OUT
VIDEO
OUT
Y
PR/CR
PB/CB
R
L
R
L
VIDEO
IN
COAXIAL
HDMI OUT
AV I N AV O UT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
cable/satellite
box
satellite
dish
e.g.)
cable TV
company
or
rear of this unit
rear of your TV
AUDIO IN
LR
VIDEO IN
VIDEO
OUT
R
L
AV OUT
IN
OUT
ANTENNA
VIDEO
IN
R
L
AV IN
ANT. IN
RF coaxial cable
RF coaxial cable
AUDIO OUT
LR
VIDEO OUT
RCA audio cable
RCA video cable
RCA audio
cable
RCA video
cable
This connection is for
TV loop through only
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
