Philips DVP3350V - VCR Part: Waveforms

3-41 3-42

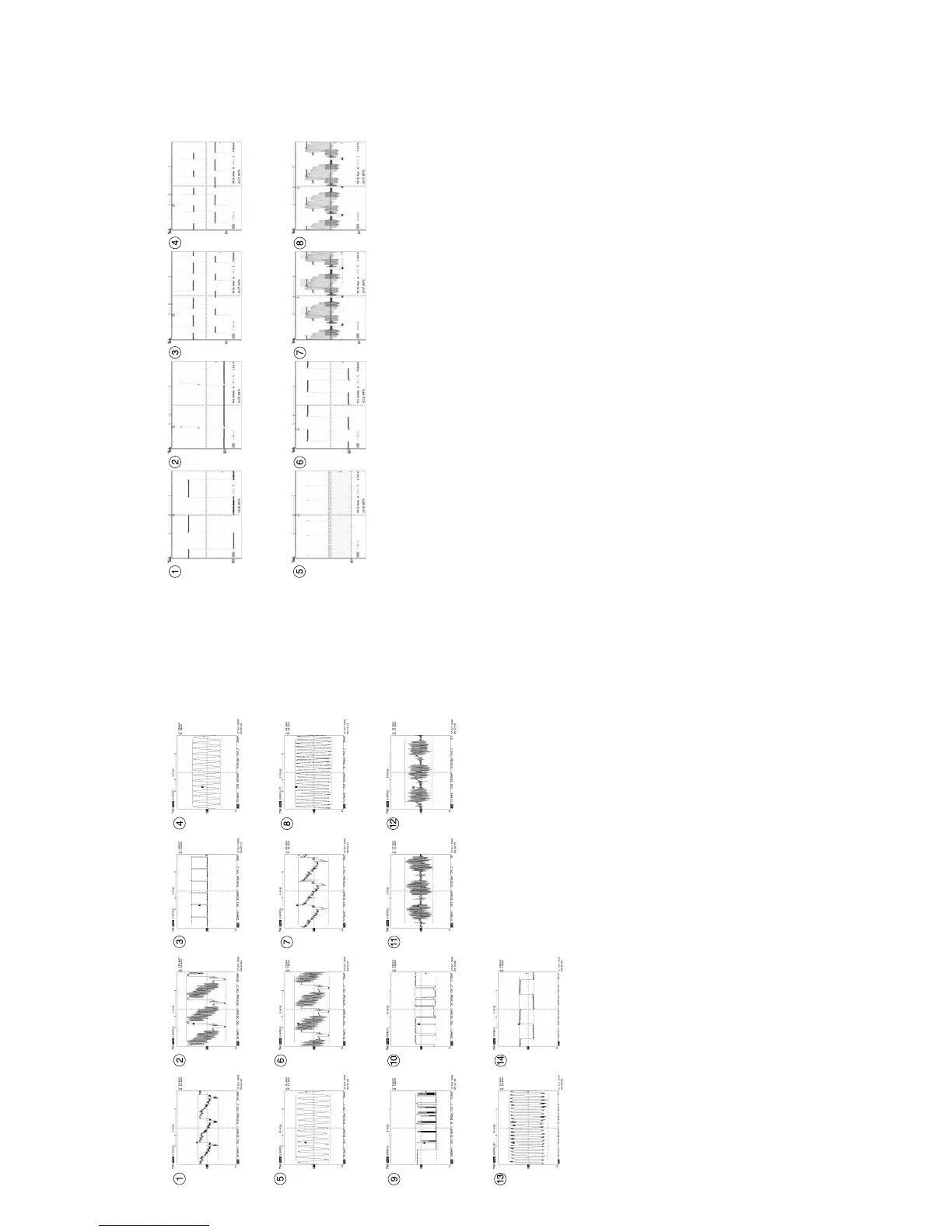

WAVEFORMS
IC301 Pin 75 PB mode 500mvp-p
IC301 Pins 48, 50, 54, 56 Video in 1Vp-p
IC301 Pin 67 PB/REC mode 4.0Vp-p
IC301 Pin 100 REC mode 1.1Vp-p
IC301 Pin 3 REC mode 2.0Vp-p
IC301 Pin 65 PB mode 2.02Vp-p
IC301 Pin 43 PB mode 400mVp-p
IC301 Pin 28 PB mode 400mVp-p
IC301 Pin 68 PB/REC mode 5Vp-p
IC301 Pin 69 PB/REC mode 5Vp-p
IC301 Pins 21 REC mode 340mVp-p
IC301 Pins 25 PB mode 300mVp-p
IC301 Pin 29 PB mode 400mVp-p
IC301 Pin 70 PB mode 3.6Vp-p
* IC301 Oscilloscope Waveform * IC501 Waveform Photographs
V.HSW (IC501 Pin 23) 1V/10mS REC/PB MODE
DV.SYNC (IC501 PIN 24) 1V/100uS QUE/REV MODE
CTL(+) (IC501 Pin 74) 1V/10mS
CTL(-) (IC501 Pin 75) 1V/10mS
DFG/DFG (IC501 PIN 65) 1V/10mS REC/PB MODE
CFG (IC501 Pin 67) 1V/10mS
V.IN (IC501 Pin 49) 500mV/20uS
V.OUT (IC501 Pin 47) 500mV/20uS EE/PB MODE
