3-81

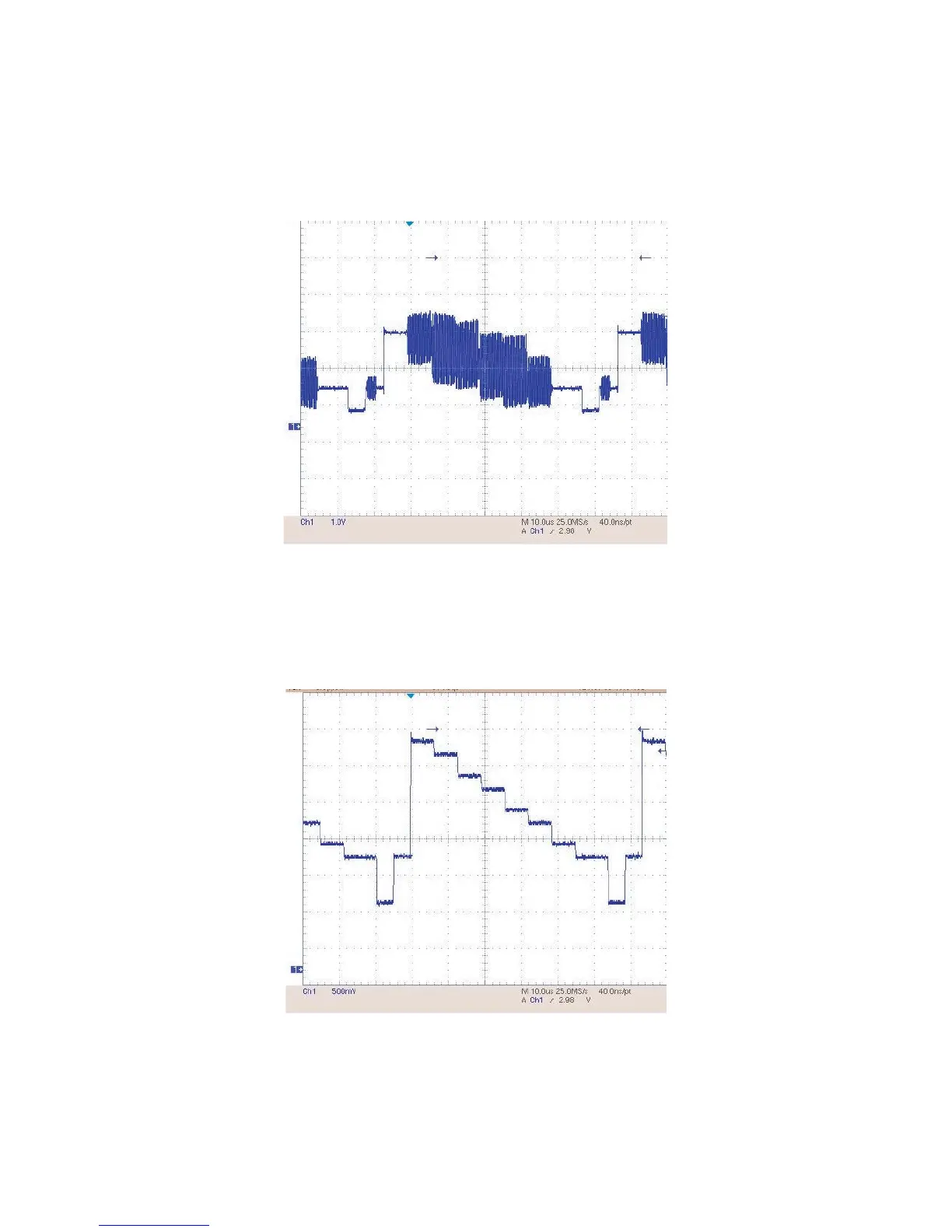

13. ZR36882 VIDEO OUTPUT WAVEFORM
1) Full colorbar signal(CVBS)
FIG 13-1
2) Y
FIG 13-2
JK702 pin6
JK702 pin7
