DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING
1. SYSTEM 27MHz CLOCK, RESET SIGNAL
1) ZR36882 main clock is at 27MH(X601)

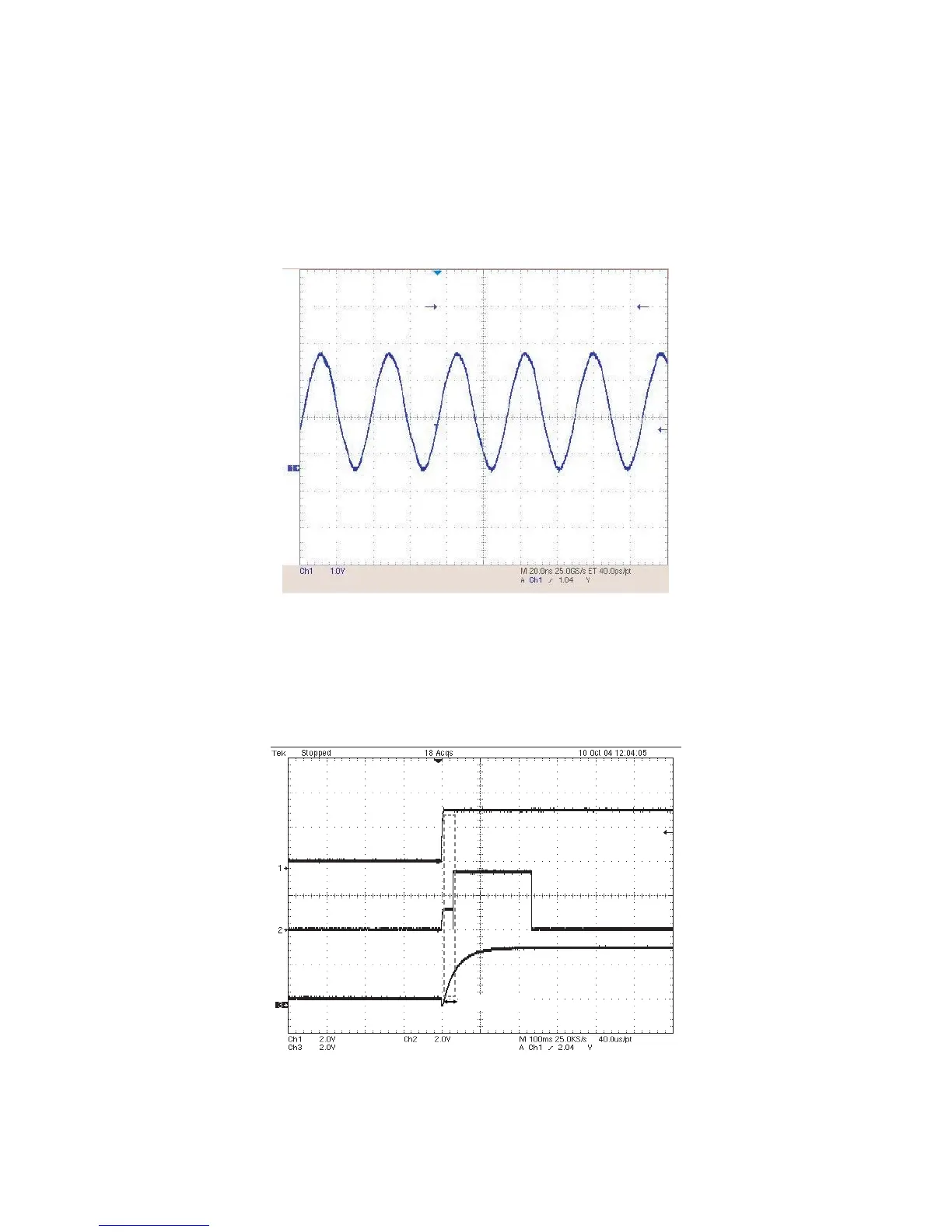

FIG 1-1
3.1V,27MHz
2) ZR36882 reset is low active
FIG 1-2
Reset Time
3.3VA
PWR_CTL
RESET
