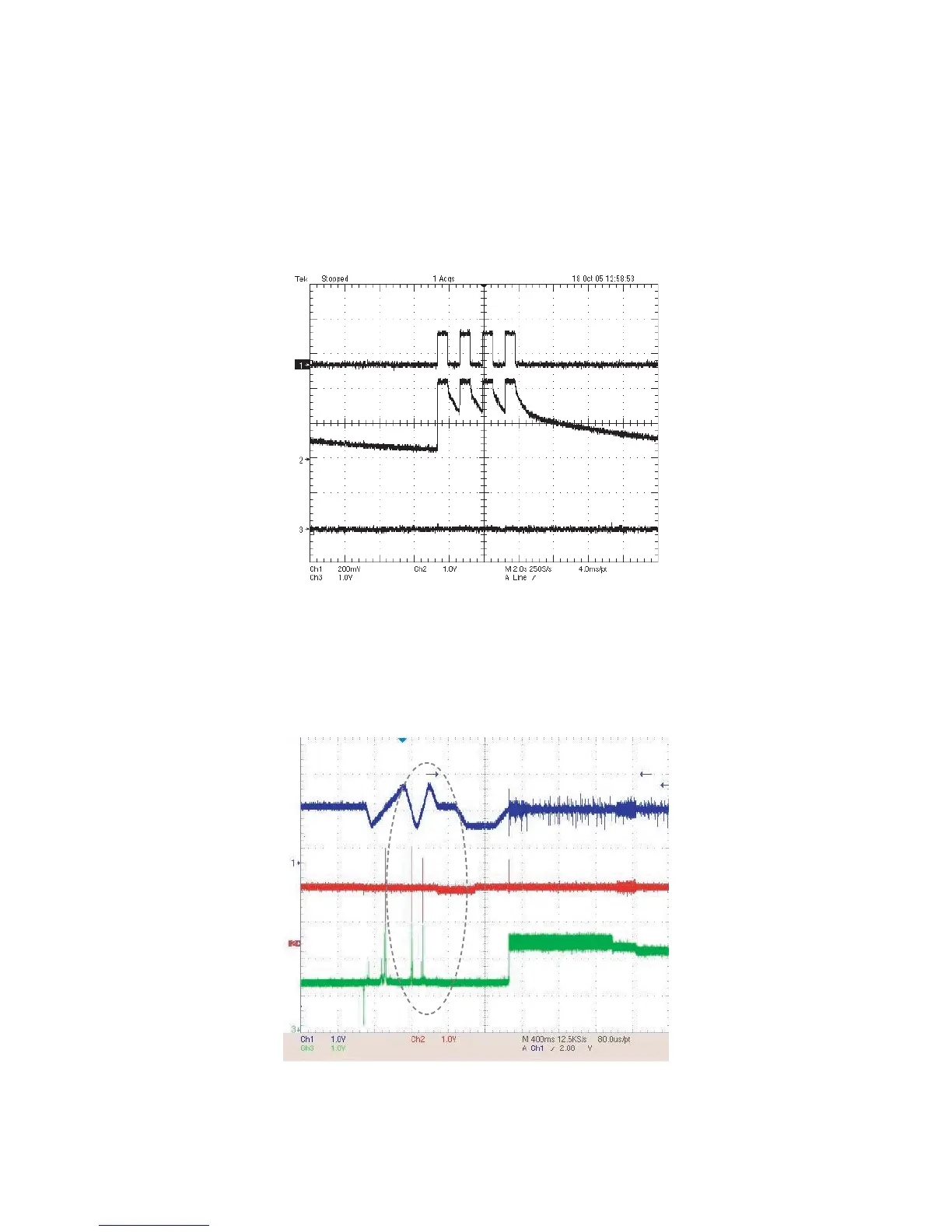

6. LASER POWER CONTROL RELATED SIGNAL(NO DISC CONDITION)
FIG 6-1
7. DISC TYPE JUDGEMENT WAVEFORM
FIG 7-1(DVD)
DCLK = 128MHz, Vp-p=2.2, Vmax=2.7V
FACT+
FE
SBAD
VR_CD
DVD_LD
CD_LD
