Philips DVP620VR/00 - Page 151

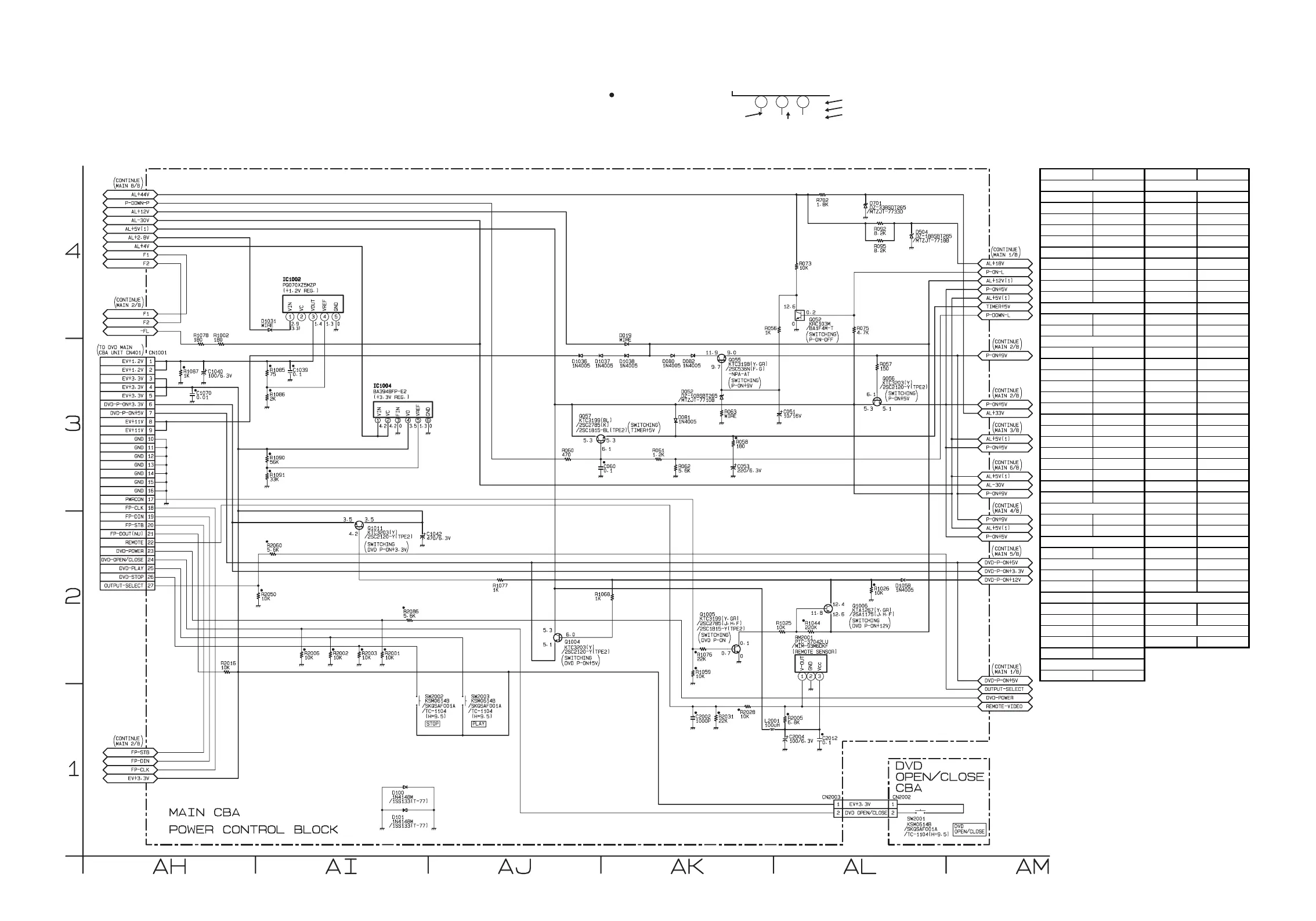

Main 7/8 & DVD Open/Close Schematic Diagram < VCR Section >
1-12-19
1-12-20
H9622SCM7
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
MAIN 7/8 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C051 AL-3 R057 AL-3
C053 AK-3 R058 AK-3
C060 AK-3 R060 AJ-3
C1039 AI-3 R061 AK-3
C1040 AH-3 R062 AK-3
C1042 AI-2 R063 AK-3
C1070 AH-3 R073 AL-4
C2002 AK-1 R075 AL-4
C2004 AL-1 R092 AL-4
C2012 AL-1 R095 AL-4
R702 AL-4
CN1001 AH-3 R1002 AH-3
CN2003 AL-1 R1025 AL-2
R1026 AL-2
D019 AK-3 R1044 AL-2
D052 AK-3 R1059 AK-2
D080 AK-3 R1068 AK-2
D081 AK-3 R1076 AK-2
D082 AK-3 R1077 AJ-2
D100 AI-1 R1078 AH-3
D101 AI-1 R1085 AI-3
D504 AL-4 R1086 AI-3
D701 AL-4 R1087 AH-3
D1031 AI-4 R1090 AI-3
D1036 AJ-3 R1091 AI-3
D1037 AK-3 R2001 AI-2
D1038 AK-3 R2002 AI-2
D1058 AL-2 R2003 AI-2
R2005 AL-1
IC1002 AI-4 R2006 AI-2
IC1004 AI-3 R2016 AI-1
R2028 AK-1
L2001 AK-1 R2031 AK-1
R2050 AI-2
Q052 AL-4 R2060 AI-2
Q055 AK-3 R2086 AI-2
Q056 AL-3
Q057 AK-3 SW2002 AJ-1
Q1004 AJ-2 SW2003 AJ-1
Q1005 AK-2
Q1006 AL-2 RM2001 AL-2
Q1011 AI-2
R056 AK-4
COIL
TRANSISTORS
RESISTORS
MISCELLANEOUS
RESISTORS
SWITCHES
CAPACITORS
DIODES
CONNECTORS
ICS
