Philips DVP620VR/00 - Page 150

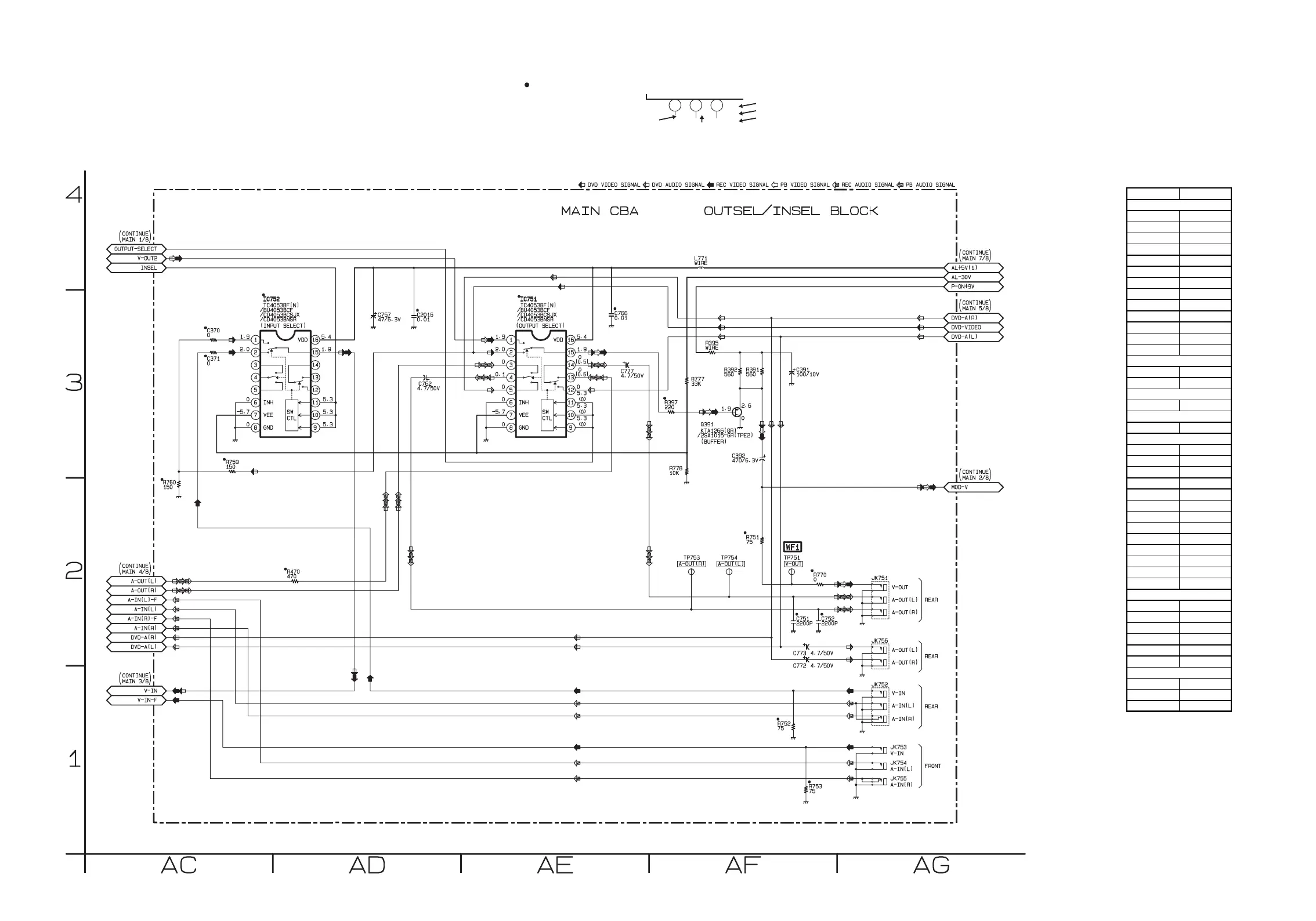

Main 6/8 Schematic Diagram < VCR Section >
1-12-17
1-12-18
H9622SCM6
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
MAIN 6/8 Schematic Diagram
Parts Location Guide
Ref No. Position
C370 AC-3
C371 AC-3
C391 AF-3
C392 AF-3
C751 AF-2
C752 AF-2
C757 AD-3
C762 AD-3
C766 AE-3
C772 AF-2
C773 AF-2
C777 AE-3
C2016 AD-3
IC751 AE-3
IC752 AC-3
L771 AF-4
Q391 AF-3
R391 AF-3
R392 AF-3
R395 AF-3
R397 AF-3
R470 AD-2
R751 AF-2
R752 AF-1
R753 AF-1
R759 AC-3
R760 AC-1
R770 AF-2
R777 AF-3
R778 AF-3
JK751 AG-2
JK752 AG-1
JK753 AG-1
JK754 AG-1
JK755 AG-1
JK756 AG-2
TP751 AF-2
TP753 AF-2
TP754 AF-2
CAPACITORS
TEST POINTS
ICS
COIL
TRANSISTOR
RESISTORS
MISCELLANEOUS
