Philips DVP620VR/00 - Page 240

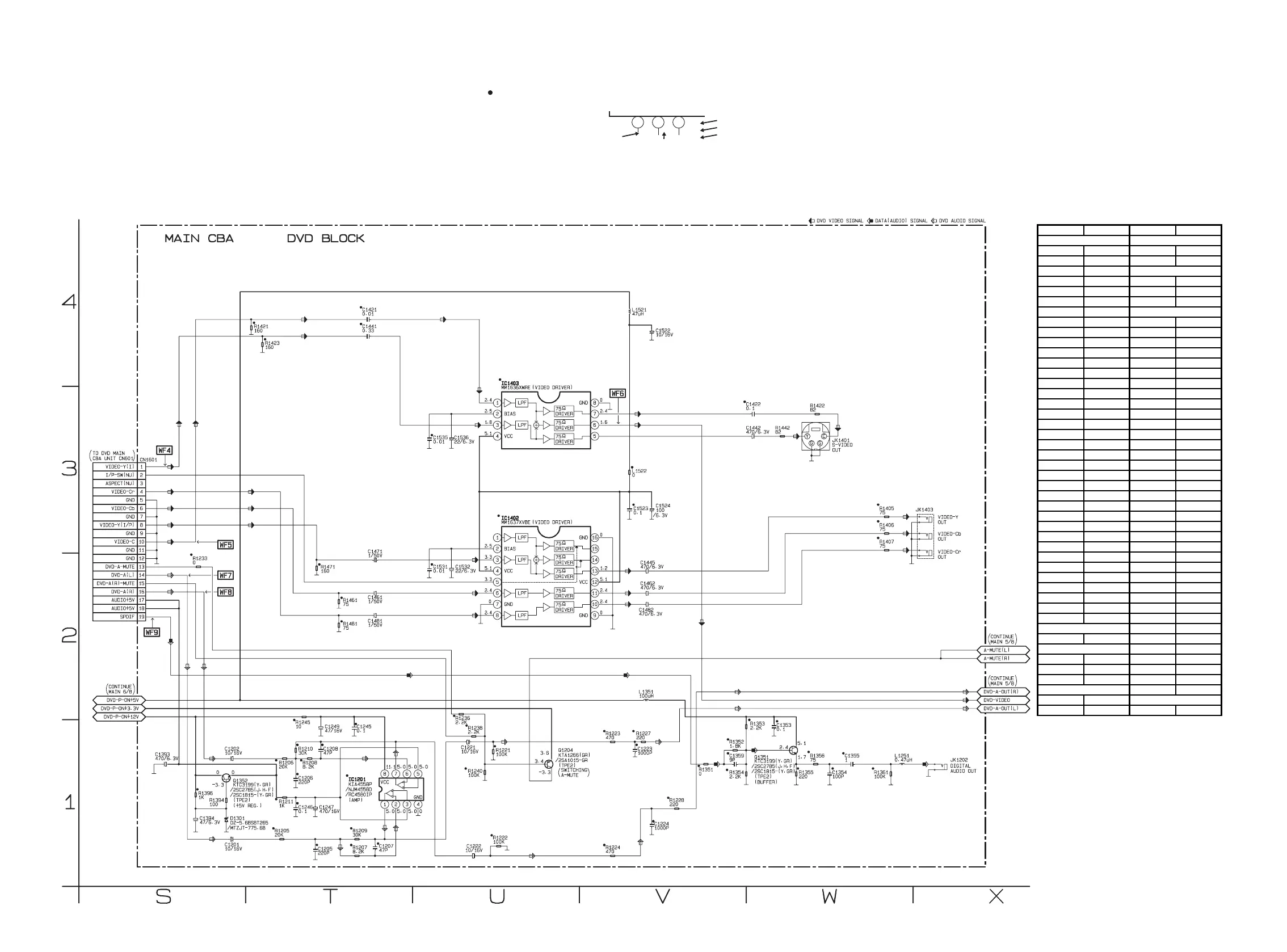

Main 4/8 Schematic Diagram < VCR Section >
1-12-11
1-12-12
H9723SCM4
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
MAIN4/8 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C1201 S-1 L1521 V-4
C1202 S-1 L1522 V-3
C1205 T-1
C1206 T-1 Q1204 U-1
C1207 T-1 Q1351 W-1
C1208 T-1 Q1352 S-1
C1221 U-1
C1222 U-1 R1205 T-1
C1223 V-1 R1206 T-1
C1224 V-1 R1207 T-1
C1245 T-1 R1208 T-1
C1246 T-1 R1209 T-1
C1247 T-1 R1210 T-1
C1249 T-1 R1211 T-1
C1353 W-1 R1221 U-1
C1354 W-1
R1222
U-1
C1355 W-1 R1223 V-1
C1359 V-1
R1224
V-1
C1393 S-1 R1227 V-1
C1394 S-1 R1228 V-1
C1421 T-4 R1233 S-2
C1422 W-3 R1236 U-2
C1441 T-4 R1238 U-1
C1442 W-3 R1240 U-1
C1445 V-2 R1245 T-1
C1461 T-2 R1351 V-1
C1462 V-2 R1352 V-1
C1471 T-3 R1353 W-1
C1481 T-2 R1354 V-1
C1482 V-2
R1355
W-1
C1522 V-4
R1356
W-1
C1523 V-3 R1361 W-1
C1524 V-3 R1394 S-1
C1531 U-2 R1396 S-1
C1532 U-2 R1405 W-3
C1535 U-3 R1406 W-3
C1536 U-3 R1407 W-3
R1421
T-4
CN1601 S-2
R1422
W-3
R1423 T-4
IC1201
T-1
R1442
W-3
IC1402 U-3 R1461 T-2
IC1403 U-1 R1471 T-3
R1481
T-2
L1251 W-1
L1351 V-2 JK1403 X-3
RESISTORS
COILS
CONNECTOR
COILS
ICS
TRANSISTORS
MISCELLANEOUS
CAPACITORS
