Philips DVP620VR/00 - Page 241

1-12-13
1-12-14 H9723SCM5

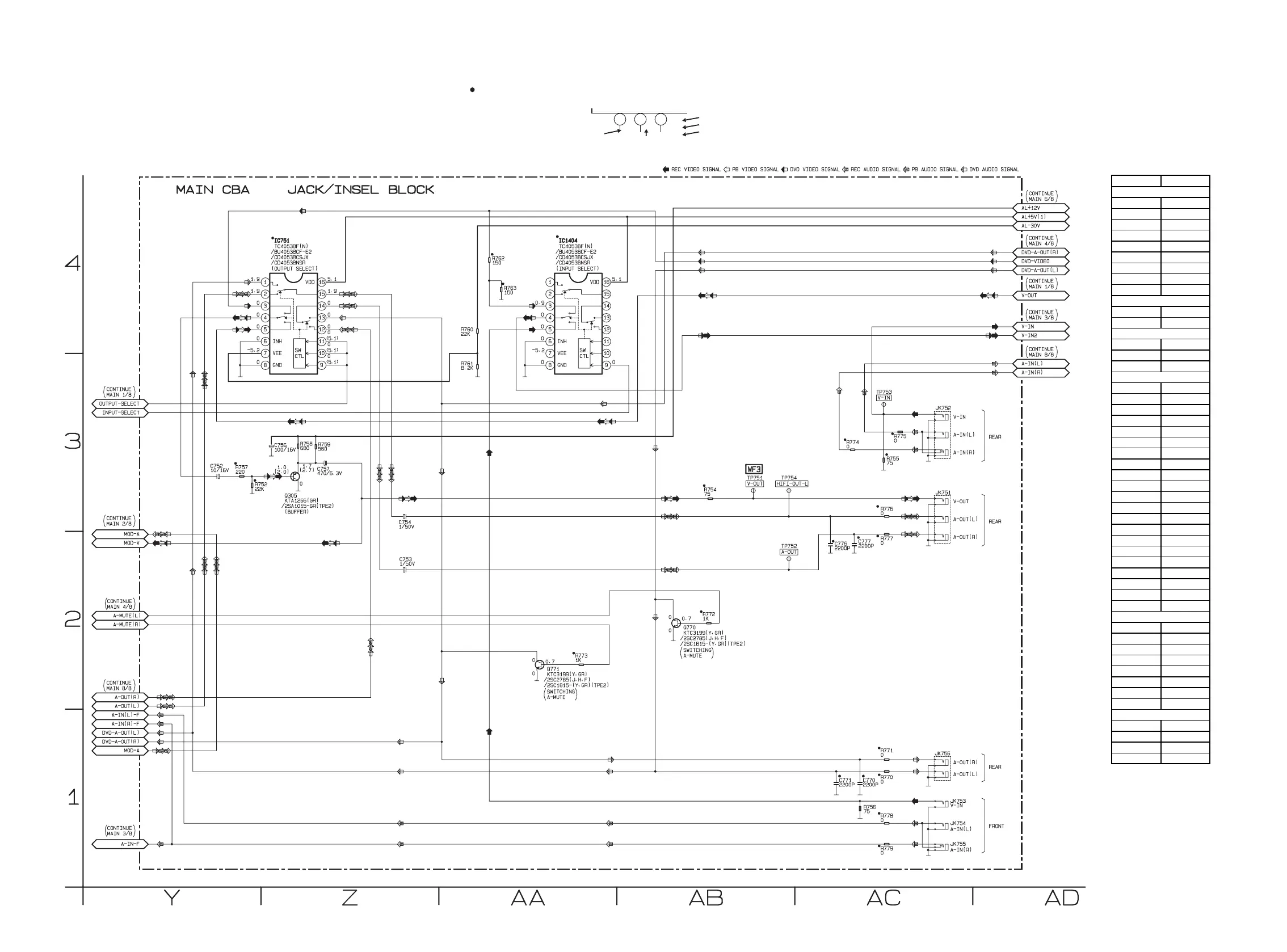

Main 5/8 Schematic Diagram < VCR Section >
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
MAIN 5/8 Schematic Diagram
Parts Location Guide
Ref No. Position
C752 Y-3
C753 Z-2
C754 Z-3
C756 Z-3
C757 Z-3
C770 AC-1
C771 AC-1
C776 AC-2
C777 AC-2
IC751 Z-4
IC1404 AA-4
Q305 Z-3
Q770 AB-2
Q771 AA-1
R752 Y-3
R754 AB-3
R755 AC-3
R756 AC-1
R757 Y-3
R758 Z-3
R759 Z-3
R760 AA-4
R761 AA-3
R762 AA-4
R763 AA-4
R770 AC-1
R771
AC-1
R772
AB-2
R773 AA-2
R774 AC-3
R775 AC-3
R776 AC-3
R777 AC-2
R778 AC-1
R779 AC-1
JK751 AC-3
JK752 AC-3
JK753 AC-1
JK754 AC-1
JK755 AC-1
JK756 AC-1
JK1202 X-1
JK1401 W-3
TP751
AB-3
TP752 AC-2
TP753 AC-3
TP754
AB-3
MISCELLANEOUS
CAPACITORS
TEST POINTS
TRANSISTORS
ICS
RESISTORS
