Philips DVP620VR/00 - Page 38

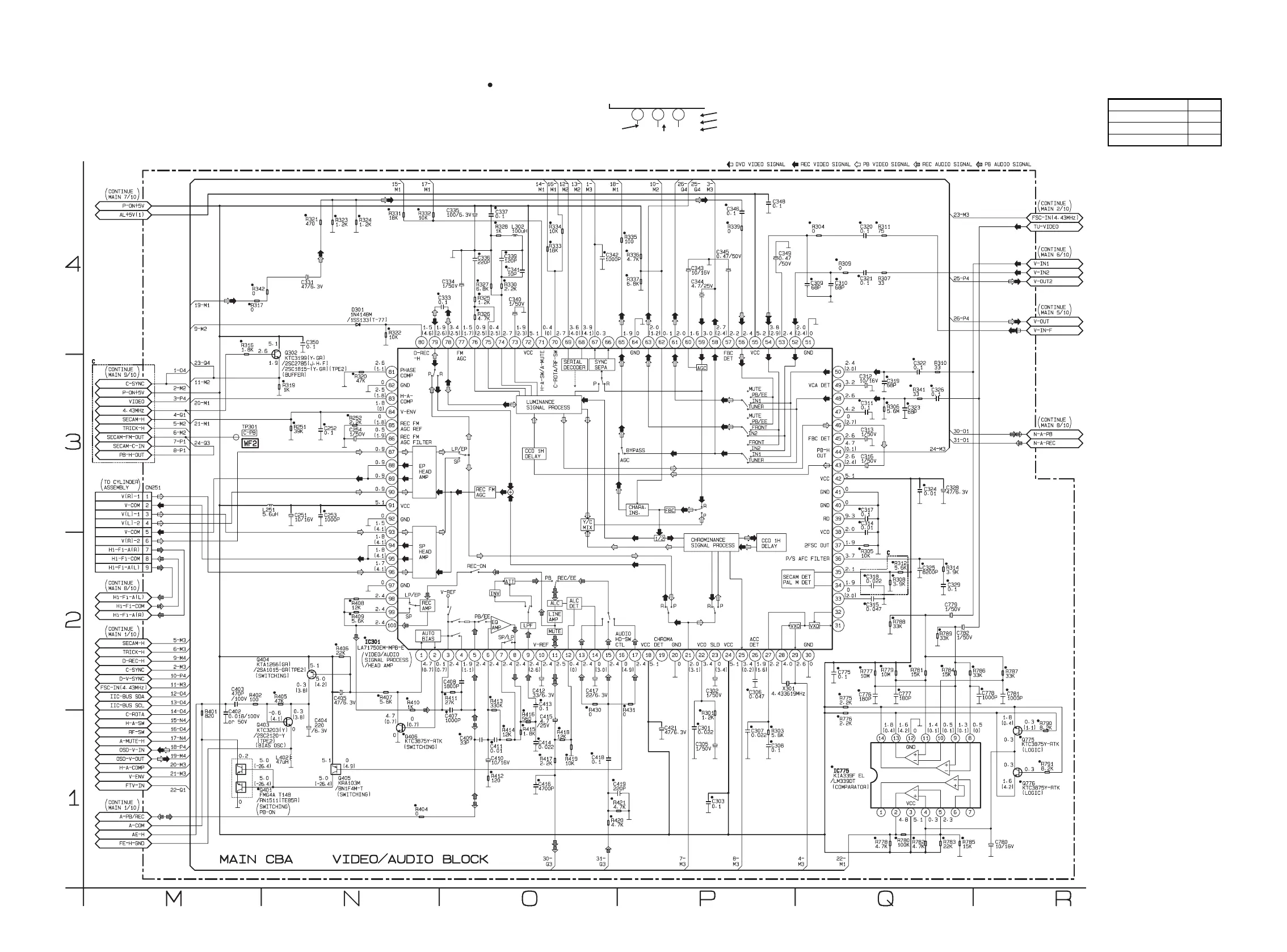

Main 3/10 Schematic Diagram < VCR Section >
1-12-9
1-12-10
H9720SCM3
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
Comparison Chart of
Models and Marks
MODEL MARK
DVP620VR/00 A
DVP620VR/05 B
DVP620VR/02 C
