Philips DVP620VR/00 - Page 39

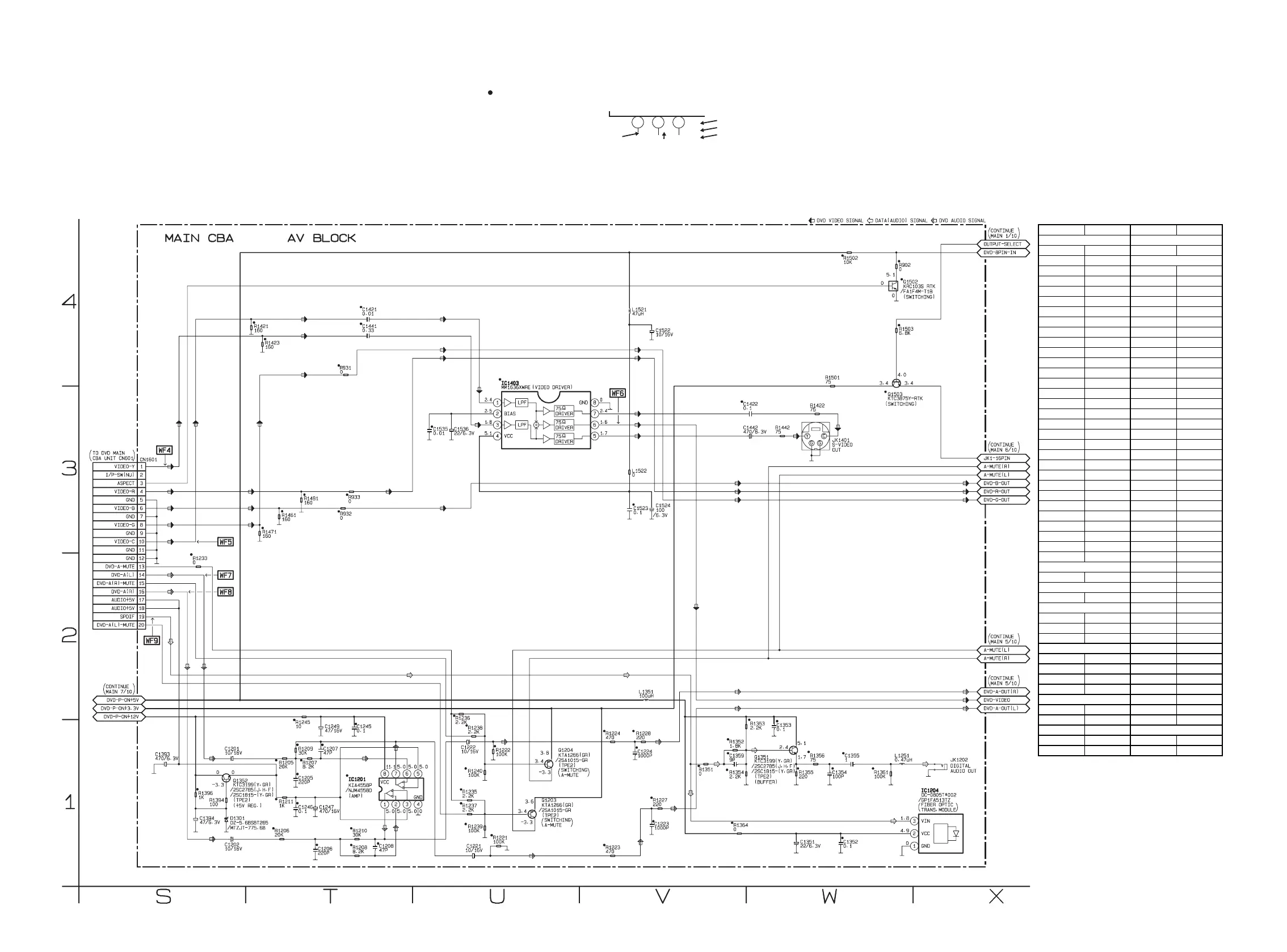

Main 4/10 Schematic Diagram < VCR Section >
1-12-11
1-12-12
H9720SCM4
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
MAIN4/10 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C1201 S-1 Q1503 W-3
C1202 S-1
C1205 T-1 R902 W-4
C1206 T-1 R931 T-4
C1207 T-1 R932 T-3
C1208 T-1 R933 T-3
C1221 U-1 R1205 T-1
C1222 U-1 R1206 T-1
C1223 V-1 R1207 T-1
C1224 V-1 R1208 T-1
C1245 T-1 R1209 T-1
C1246 T-1 R1210 T-1
C1247 T-1 R1211 T-1
C1249 T-1 R1221 U-1
C1351 W-1 R1222 U-1
C1352 W-1
R1223
V-1
C1353 W-1 R1224 V-1
C1354 W-1 R1227 V-1
C1355 W-1
R1228
V-1
C1359 V-1 R1233 U-1
C1393 S-1 R1235 U-1
C1394 S-1 R1236 U-2
C1421 T-4 R1237 U-1
C1422 W-3
R1238
U-1
C1441 T-4 R1239 U-1
C1442 W-3 R1240 U-1
C1522 V-4 R1245 T-1
C1523 V-3 R1351 V-1
C1524 V-3 R1352 V-1
C1535 V-3 R1353 W-1
C1536 V-3 R1354 V-1
R1355 W-1
CN1601 S-3 R1356 W-1
R1361 W-1
D1301 S-1 R1364 V-1
R1394
S-1
IC1201
T-1
R1396
S-1
IC1204
X-1
R1421
T-4
IC1403 U-4 R1422 W-3
R1423
T-4
L1251 W-1 R1442 W-3
L1351
V-1
R1461
T-3
L1521 V-4 R1471 T-3
L1522 V-3 R1481 T-3
R1501
W-4
Q1203
U-1
R1502
W-4
Q1204
U-1
R1503
W-4
Q1351 W-1
Q1352 S-1 JK1202 X-1
Q1502
W-4 JK1401 W-3
MISCELLANEOUS
DIODE
RESISTORS
TRANSISTORS
CAPACITORS
CONNECTOR
COILS
ICS
TRANSISTORS
