Philips DVP620VR/00 - Page 44

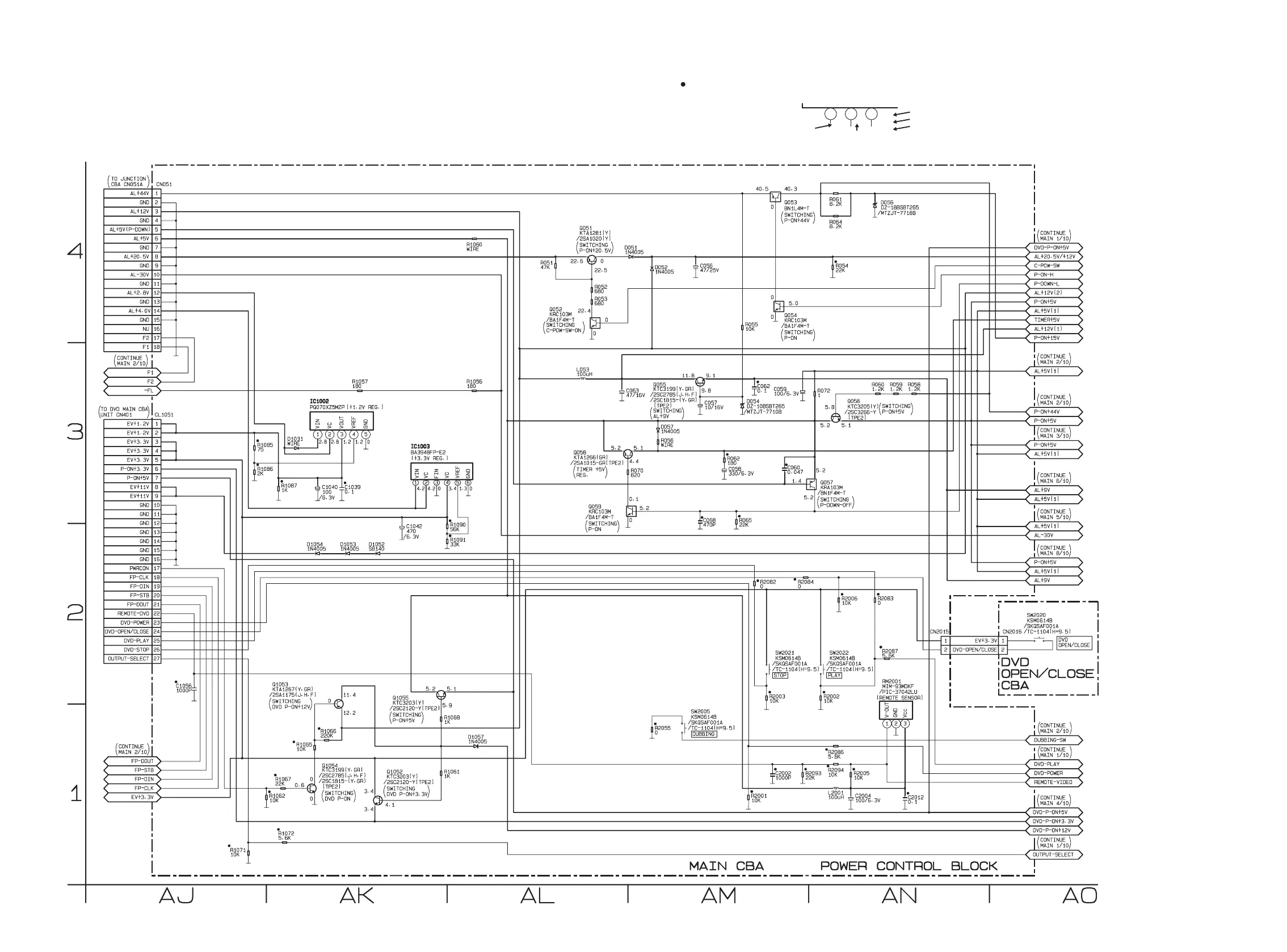

Main 7/10 & DVD Open/Close Schematic Diagrams < VCR Section >
1-12-19 1-12-20 H9720SCM7
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
