Philips DVP620VR/00 - Page 54

1-12-39
1-12-40

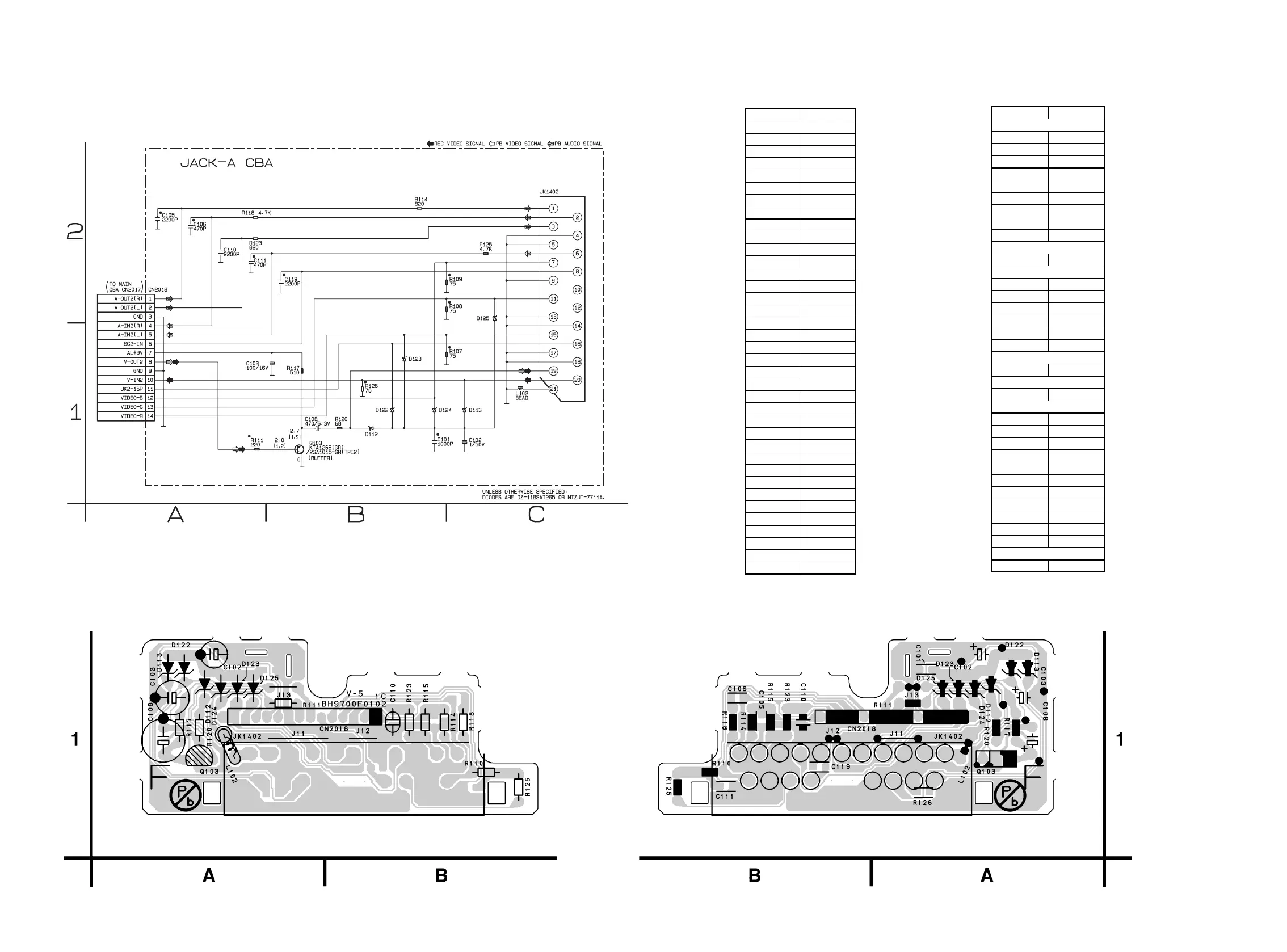

Jack-A Schematic Diagram
Jack-A CBA Top View
Jack-A CBA Bottom View
BH9700F01022C
H9720SCJ
JACK-A CBA
Parts Location Guide
Ref No. Position
C101 A-1
C102 A-1
C103 A-1
C105 B-1
C106 B-1
C108 A-1
C110 B-1
C111 B-1
C119 B-1
CN2018 B-1
D112 A-1
D113 A-1
D122 A-1
D123 A-1
D124 A-1
D125 A-1
L102 A-1
Q103 A-1
R107 A-1
R108 B-1
R109 B-1
R111 A-1
R114 B-1
R117 A-1
R118 B-1
R120 A-1
R123 B-1
R125 B-1
R126 A-1
JK1402 A-1
CAPACITORS
CONNECTOR
DIODES
COIL
TRANSISTOR
RESISTORS
MISCELLANEOUS
JACK-A Schematic Diagram
Parts Location Guide
Ref No. Position
C101 B-1
C102 C-1
C103 B-1
C105 A-2
C106 A-2
C108 B-1
C110 A-2
C111 A-2
C119 B-2
CN2018 A-2
D112 B-1
D113 C-1
D122 B-1
D123 B-1
D124 B-1
D125 C-1
L102 C-1
Q103 B-1
R107 C-1
R108 C-2
R109 C-2
R111 A-1
R114 B-2
R117 B-1
R118 A-2
R120 B-1
R123 A-2
R125 B-2
R126 B-1
JK1402 C-2
DIODES
MISCELLANEOUS
TRANSISTOR
COIL
CAPACITORS
RESISTORS
CONNECTOR
