Philips DVP620VR/00 - Page 55

1-12-41
1-12-42

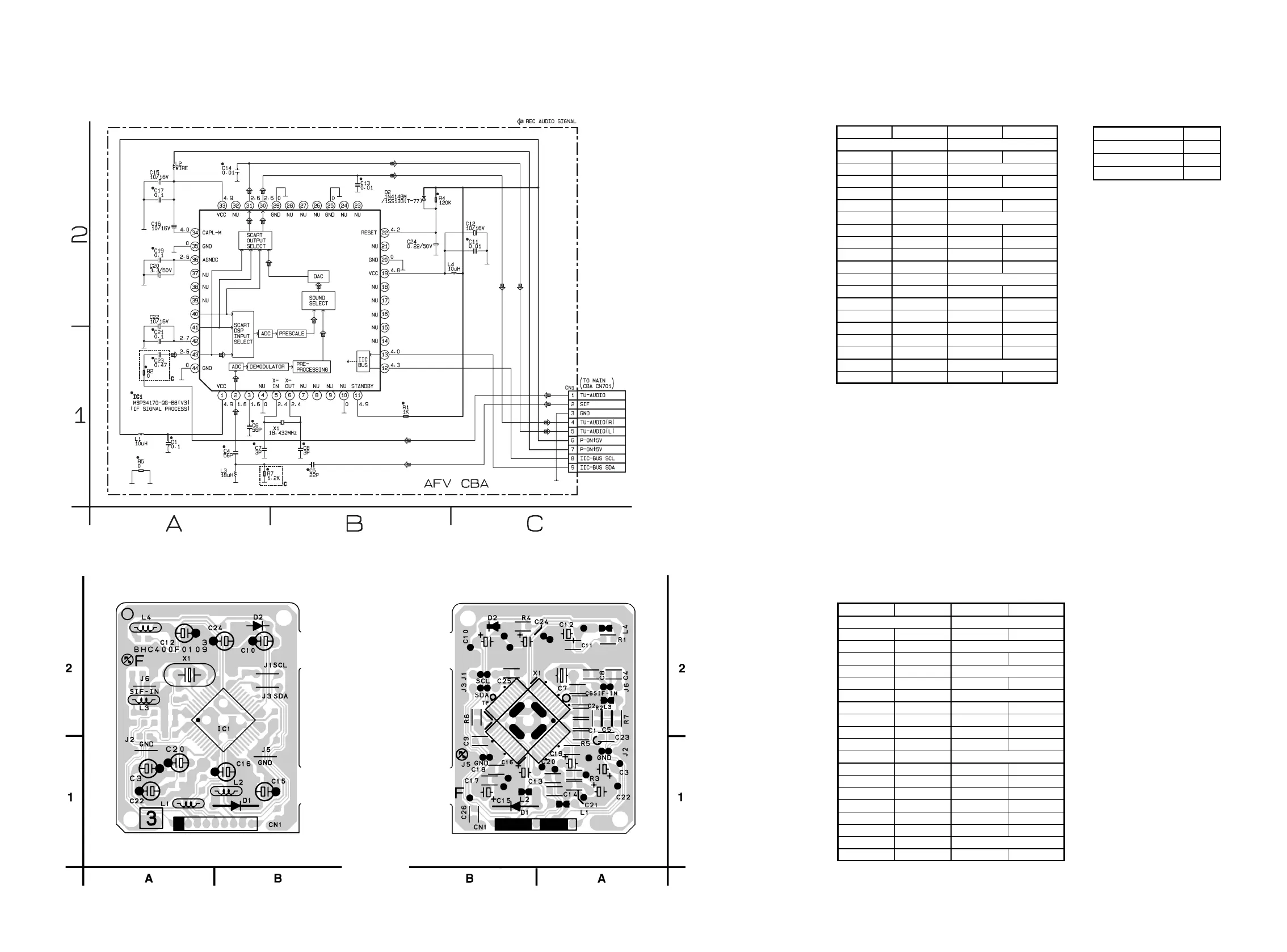

AFV Schematic Diagram
AFV CBA Top View
AFV CBA Bottom View
BHC400F01093
Comparison Chart of
Models and Marks
MODEL MARK
DVP620VR/00 A
DVP620VR/05 B
DVP620VR/02 C
H9720SCAFV
AFV Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C1 A-1 CN1 C-1
C4 A-1
C5 B-1 D2 B-2
C6 A-1
C7 A-1 IC1 A-1
C8 B-1
C11 C-2 L1 A-1
C12 C-2 L2 A-2
C13 B-2 L3 A-1
C14 A-2 L4 C-2
C15 A-2
C16 A-2 R1 B-1
C17 A-2 R2 A-1
C19 A-2 R4 B-2
C20 A-2 R5 A-1
C21
A-1
R6
A-1
C22 A-2 R7 A-1
C23 A-1
C24
B-2
X1
B-1
CONNECTOR
IC
RESISTORS
COILS
CAPACITORS
CRYSTAL OSCILLATOR
DIODE
AFV CBA Parts Location Guide
Ref No. Position Ref No. Position
C1 A-2 CN1 B-1
C4 A-2
C5 A-2 D2 B-2
C6 A-2
C7 A-2 IC1 B-2
C8 A-2
C11 A-2 L1 A-1
C12 A-2 L2 B-2
C13 A-1 L3 A-2
C14 A-1 L4 A-2
C15 B-1
C16 B-1 R1 A-2
C17 B-1 R2 A-2
C19 B-1 R4 B-2
C20 A-1 R5 A-1
C21 A-1 R6 B-2
C22 A-1 R7 A-2
C23 A-1
C24
B-2
X1 A-2
CAPACITORS
CONNECTOR
COILS
DIODE
IC
RESISTORS
CRYSTAL OSCILLATOR
