DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING
1. SYSTEM 27MHz CLOCK, RESET, FLASH R/W SIGNAL

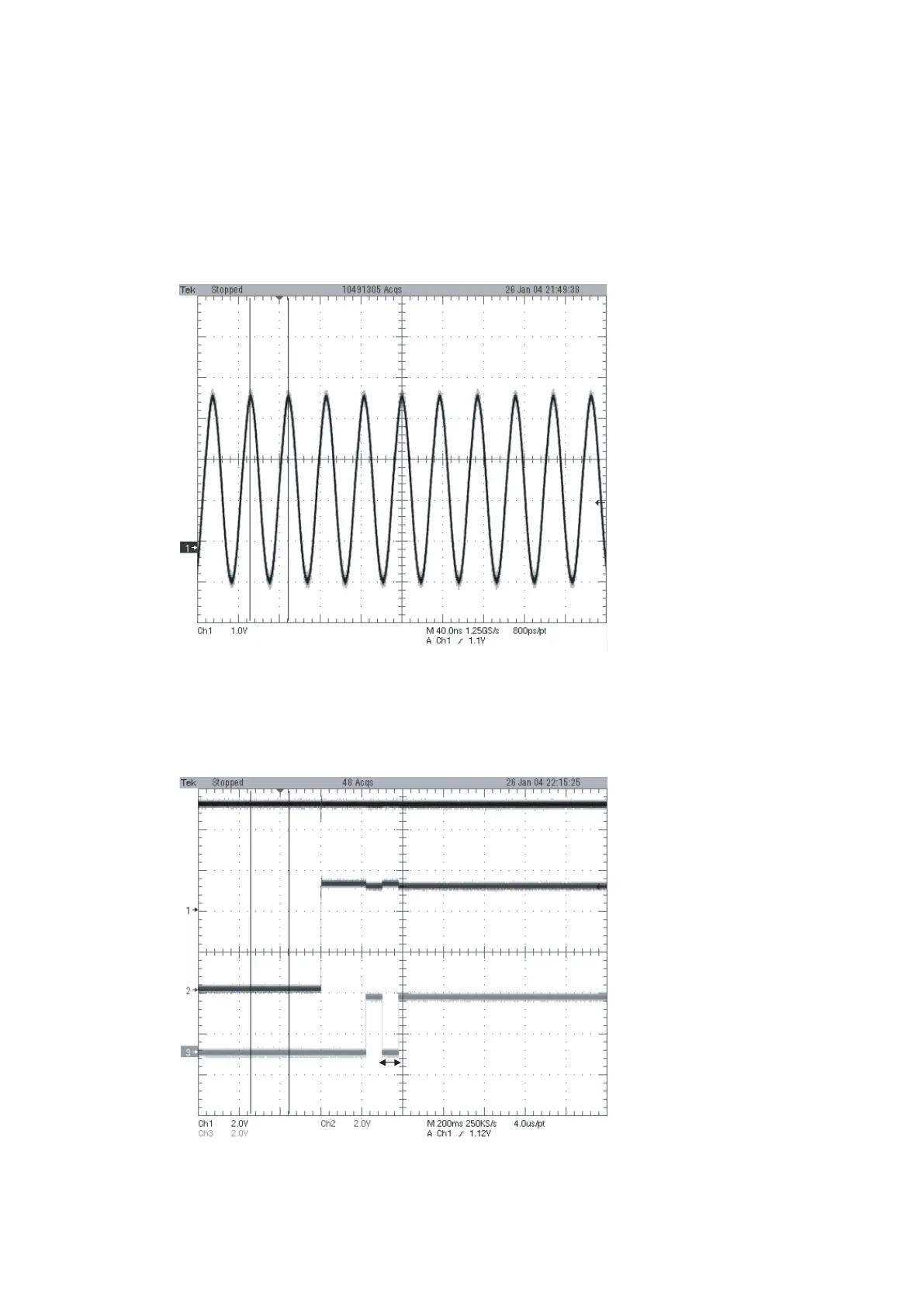

1) MT1389 main clock is at 27MHz(X501)
1.0V, 27MHz
FIG 1-1
2) MT1389 reset is low active
PWR_CTL
5.2VA
M_RESET(FRONT)
RESET Time
FIG 1-2
