3-66

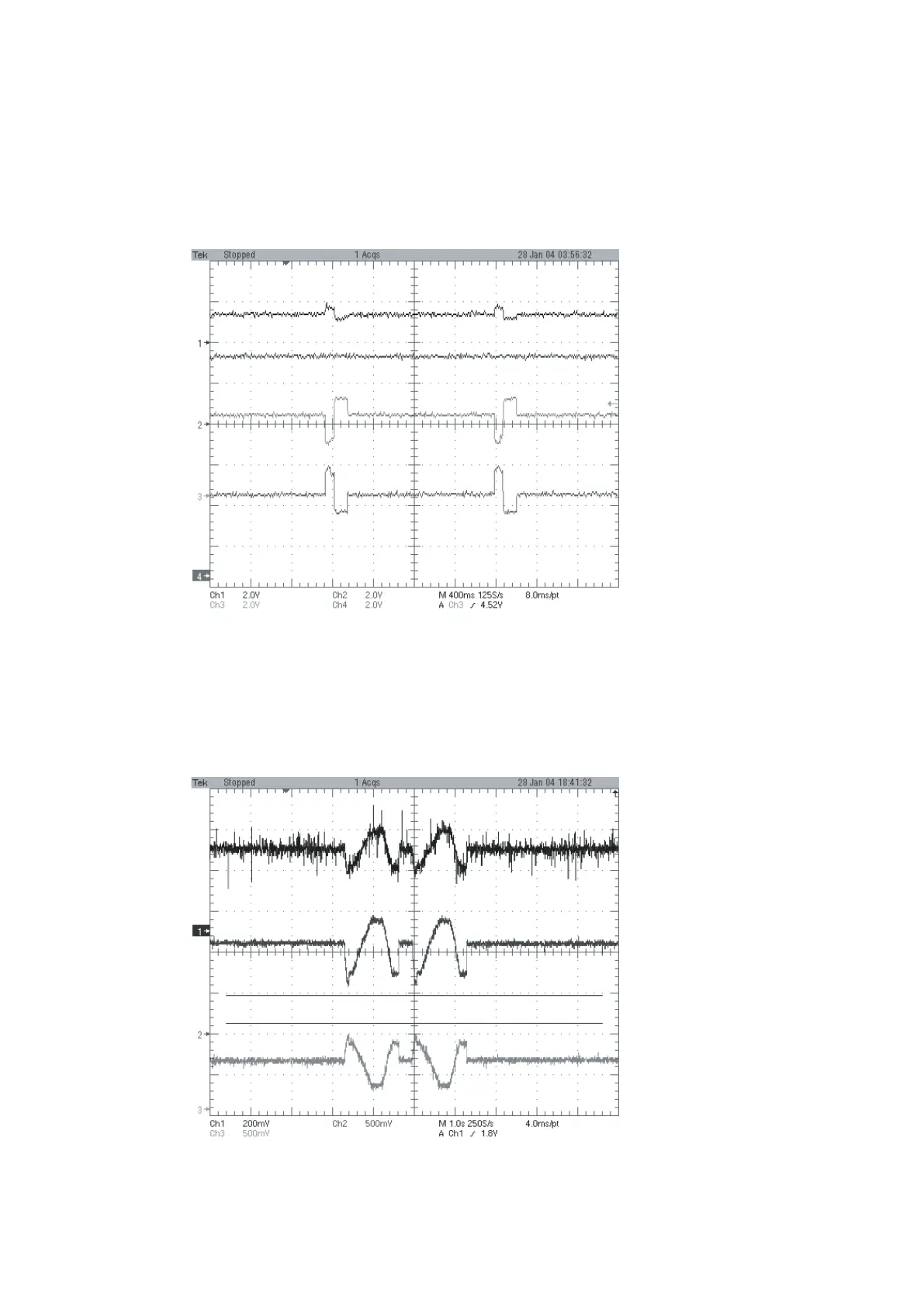

4. SLED CONTROL RELATED SIGNAL (NO DISC CONDITION)
FMSO(2.0V/1.4V/1.0V)
STBY(3.3V)
SL+(4.7V/4.0V/2.6V)
SL-(5.3V/4.0V/3.0V)
FIG 4-1
5. LENS CONTROL RELATED SIGNAL(NO DISC CONDITION)
FOSO(1.5V/1.4V/1.3V)
F+(4.0V/3.6V/3.2V)
F-(4.0V/3.6V/3.2V)
FIG 5-1
