2. SDRAM CLOCK

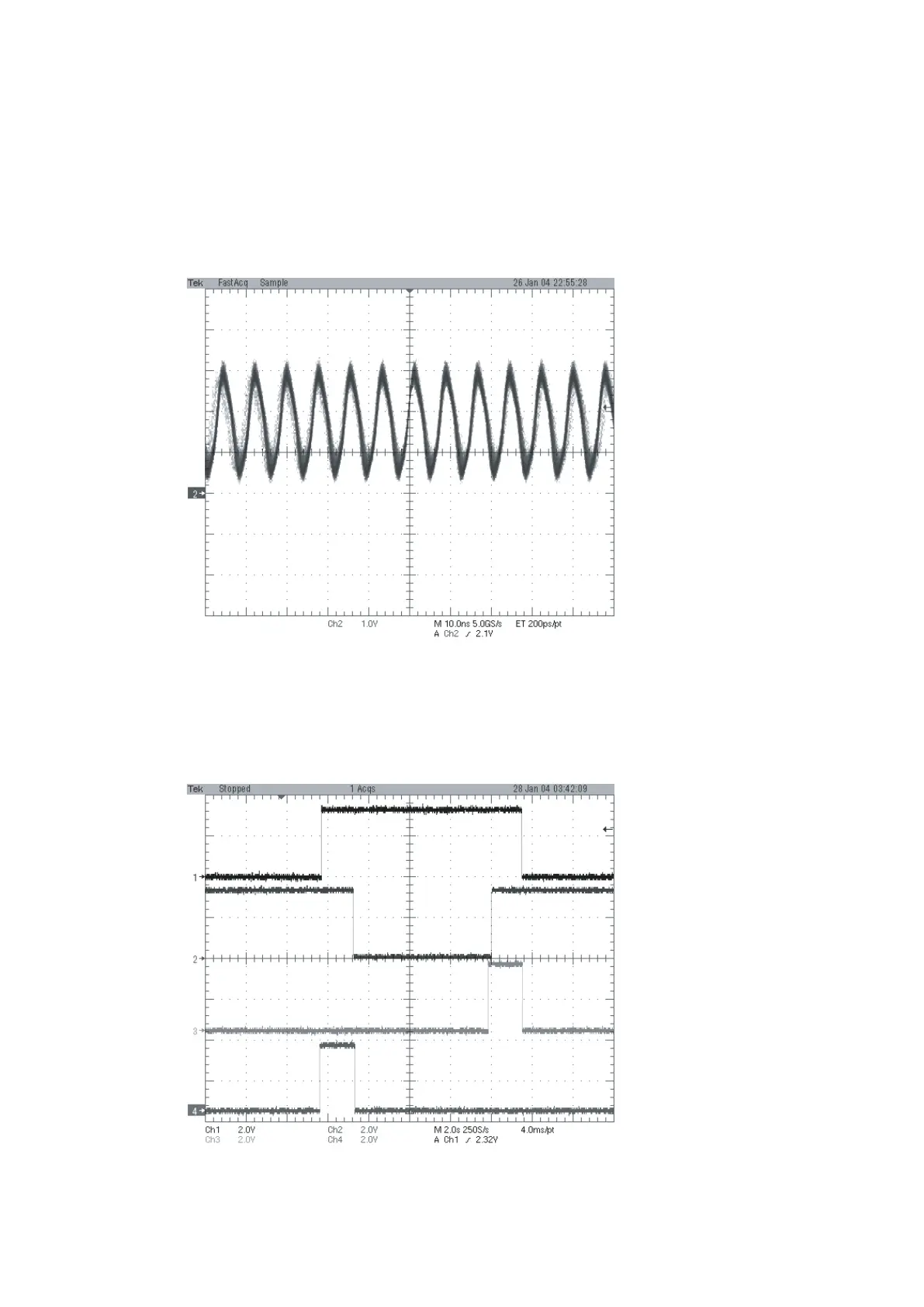

DCLK = 128MHz, Vp-p=2.2, Vmax=2.7V
FIG 2-1
3. TRAY OPEN/CLOSE SIGNAL
1) Tray open/close waveform
TRIN
TROUT
TROPEN
TRCLOSE
FIG 3-1
